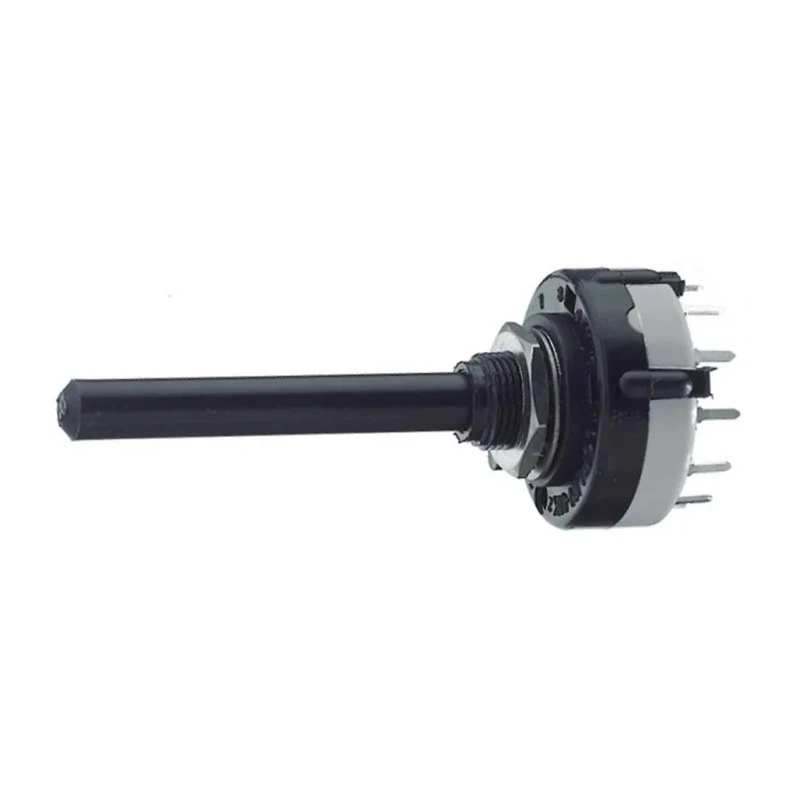

Lorlin CK 3P Rotary Switch, 150mA, Nylon Housing, Solder Terminals, Panel Mount, 250V AC / 24V DC CK1056
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Diameter | 27.5mm |
| Brand | Lorlin |
| Dimensions | 1.5inch long, 0.25inch diameter spindle with a 30mm flat for correct mounting of grub screwed knobs. The bush is 8mm long with a 9.52x32TPI thread |
| Height | 59.1mm |
| Model | CK1056 |
| Depth | 27.5mm |
| Width | 27.5mm |
| Mount Type | Panel |
| Housing Material | Nylon |
| Series | CK |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | 3P |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder |
| Maximum dc Voltage | 24V dc |
| Number of Poles | 3 |
| Standards/Approvals | RoHS |
| Switch Contact Current | 150mA |
| Mechanical Life | 10000Cycles |
| Maximum AC Voltage | 250V ac |
| Angle of Throw | 90 ° |
Key Features
- Constructed with durable nylon housing ensuring electrical insulation.
- Supports maximum AC voltage of 250V and DC voltage of 24V for versatile applications.
- Features a three-pole contact configuration with a 90° angle of throw.
- Designed for mechanical reliability with a lifespan of 10,000 cycles.
- Operation range from -30°C to 85°C suitable for diverse environments.
- Includes a 1.5 inch long spindle with 0.25 inch diameter and a 30mm flat for secure knob mounting.
- Equipped with panel mount type and solder terminals for easy integration.
- Complies with RoHS standards ensuring environmentally friendly manufacturing.
Product Description
Lorlin CK1056 Rotary Switch is a 3-pole panel mount wafer switch designed for precise switching control in electrical and automation systems. It features a robust nylon housing and solder terminal connections suitable for reliable integration on panels with secure mounting capabilities.
Rated for a maximum contact current of 150mA and compatible with both 250V AC and 24V DC operating voltages, this switch provides flexibility for various low-power electrical circuits. The 90-degree angle of throw ensures distinct position feedback and reliable switching action.
The switch operates efficiently within a temperature range of -30°C to 85°C, making it suitable for diverse industrial and commercial environments. It offers a mechanical lifecycle of 10,000 cycles, suited for moderate switching frequency applications.
The shaft dimensions include a 1.5 inch long, 0.25 inch diameter spindle with a 30mm flat, compatible with grub screwed knobs. The bush length is 8mm with a 9.52x32 TPI thread for secure fixing.
Built to RoHS environmental standards and manufactured in the United Kingdom, this switch ensures compliance with industry regulations and reliability. Additional features include non-illuminated operation, make-before-break and break-before-make contact options, adjustable stops, and continuous rotation capabilities.
Durable nylon housing for electrical insulation. Support for 150mA contact current at 250V AC or 24V DC. Panel mount installation with solder terminals. 90° angle of throw and 3 pole contact configuration. Mechanical life rated at 10,000 cycles.
Wide operating temperature range from -30°C to 85°C. Compliant with RoHS environmental standards. Manufactured in the United Kingdom. Shaft with 1.5 inch length and 30mm flat for knob mounting.
This Lorlin CK1056 Rotary Switch is ideal for use in electrical, automation, and instrumentation applications, including control panels, signal routing, and low-current switching tasks. Browse more solutions in the Electronics & Electricals Switches & Sockets Rotary Switch category to find compatible components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Lorlin CK1056 rotary switch supports a maximum AC voltage of 250V and a maximum DC voltage of 24V.
It has a contact current rating of 150mA, suitable for low-power electrical circuits.
This rotary switch is rated for a mechanical life of 10,000 cycles, making it suitable for moderate switching frequency applications.
The spindle is 1.5 inches long with a diameter of 0.25 inches, and it includes a 30mm flat for secure knob mounting.
The switch operates efficiently within a temperature range of -30°C to 85°C, making it versatile for various environments.
It is equipped with solder terminals, allowing for reliable integration into electrical circuits.
The Lorlin CK1056 is designed for panel mount installation, ensuring secure placement in control panels.
This model features a 90° angle of throw, providing distinct position feedback during operation.
The housing is constructed from durable nylon, ensuring electrical insulation and reliability.
Yes, it complies with RoHS standards, ensuring environmentally friendly manufacturing practices.
The Lorlin CK1056 rotary switch is manufactured in the United Kingdom.
This switch is ideal for use in electrical, automation, and instrumentation applications, including control panels and signal routing.
