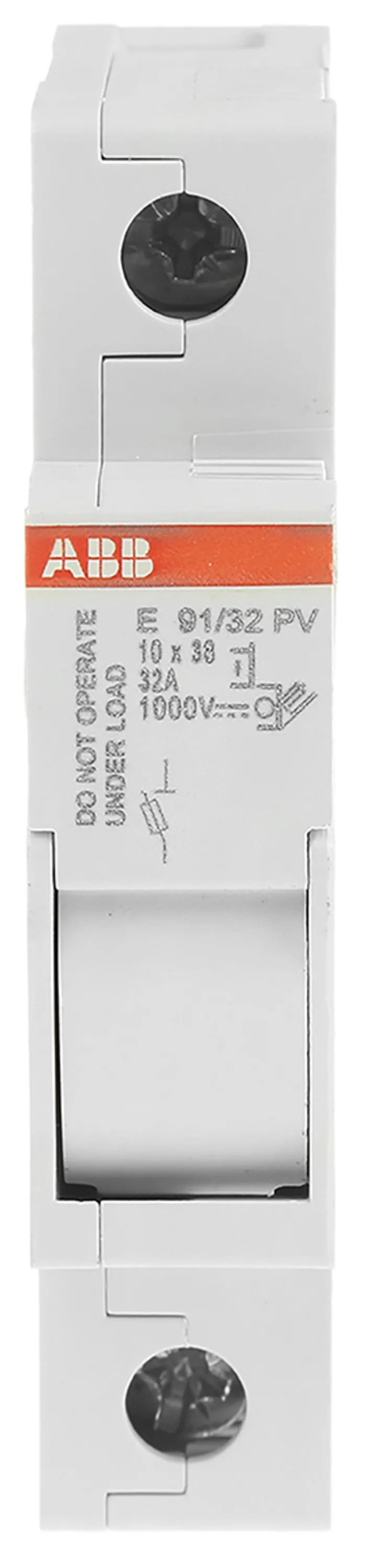

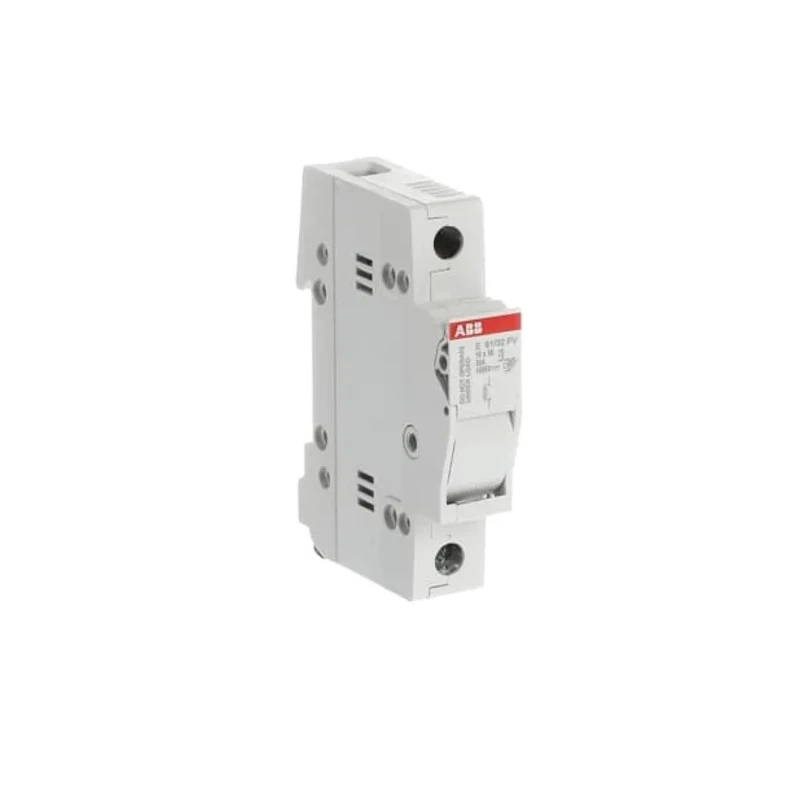

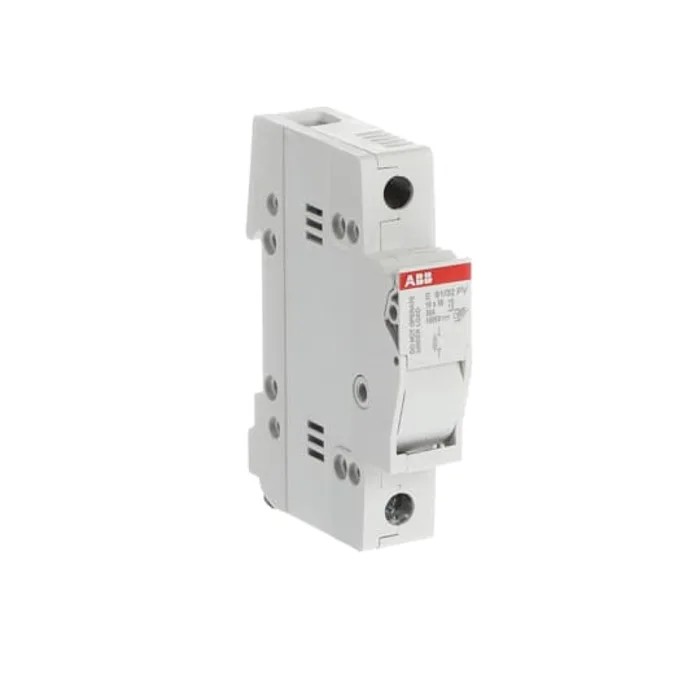

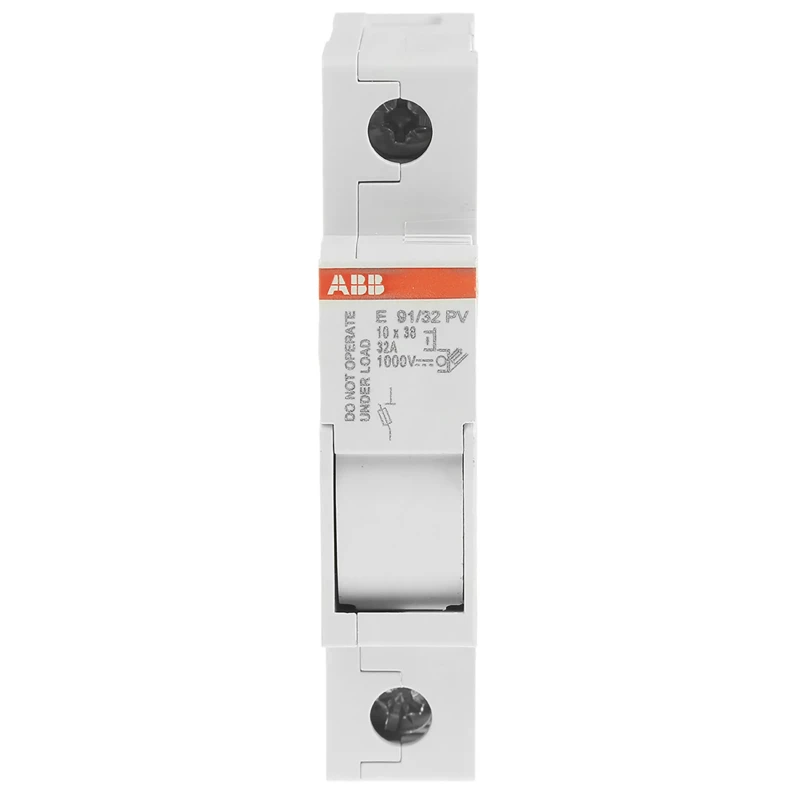

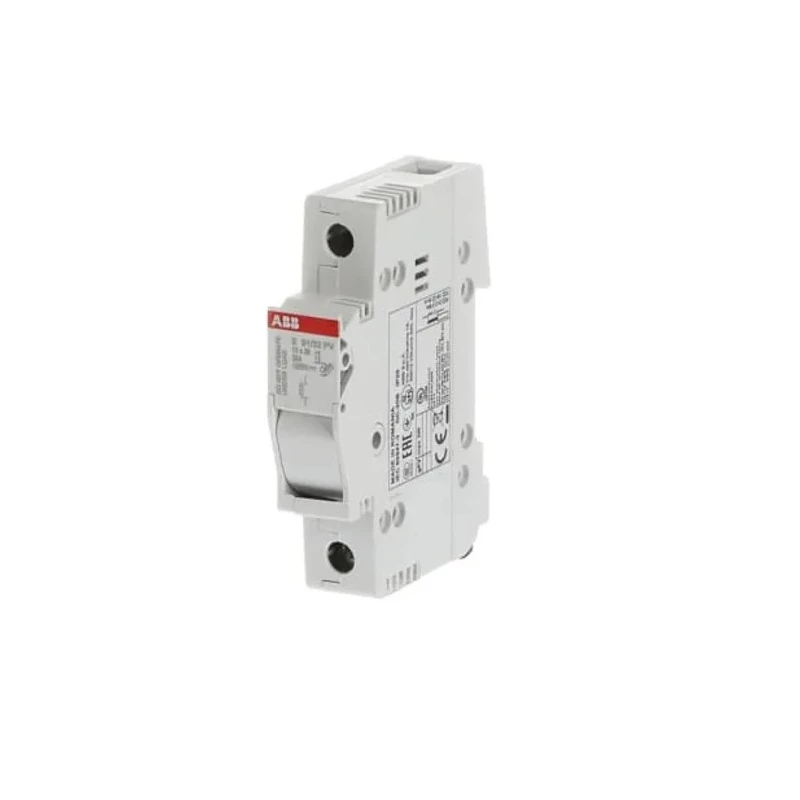

ABB Fuse Switch Disconnector, 1-Pole, 32A, DIN Rail Mount, E 90 PV Series 2CSM204713R1801 E 91/32 PV

ABB 2CSM204713R1801 E 91/32 PV Fuse Switch Disconnector, 1-Pole 32A, from the E 90 PV series, offers robust electrical circuit protection with a compact and efficient design. It is manufactured with copper conductors and features a DIN rail mount, making installation straightforward and reliable in various industrial and commercial applications.

This fuse switch disconnector incorporates a self-extinguishing thermoplastic housing that effectively limits fire spread, enhancing safety. Its snap-on DIN rail mounting style ensures quick and secure attachment to electrical distribution boards. The device's compact dimensions (64 mm depth, 18 mm width, 85 mm height) occupy minimal space, facilitating efficient panel design.

Rated with an IP20 protection class, the unit is touch-proof, preventing accidental electric shocks. It operates reliably within a minimum temperature of -5°C and a maximum temperature of 40°C, accommodating a broad range of environments including photovoltaics, construction sites, pharmaceutical plants, and manufacturing processes.

The fuse switch disconnector supports a fuse current of 32A and uses mechanical fuse size of 10 x 38 mm. The unit's copper contacts provide high conductivity, ensuring uninterrupted electrical transmission. For enhanced safety during maintenance, the switch is lockable to isolate energy sources effectively.

Compatibility with ABB's S200 series connecting bars, terminals, and caps simplifies building integrated electrical systems. Weighing only 61 grams, the device does not impose extra strain on electrical panels. Supporting international standards such as IEC 60269-1, IEC 60269-2, IEC 60269-3, UL, UL94, and IEC 60947-3, it meets stringent safety and performance requirements.

Features self-extinguishing thermoplastic housing limiting fire spread. Snap-on DIN rail mounting enables easy installation. Compact dimensions of 64 x 18 x 85 mm save panel space. IP20 rating ensures touch-proof safety.

Wide operating temperature range from -5°C to 40°C. High conductivity copper conductors. Lockable design for safe maintenance isolation. Compatible with ABB S200 series accessories for system integration. Lightweight at 61 grams to reduce equipment load.

Complies with international IEC and UL standards.

This Fuse Switch Disconnector is highly suitable for use in electrical distribution systems in photovoltaic installations, building and construction, pharmaceutical environments, and manufacturing industries. Improve electrical safety, ensure reliable circuit disconnection, and meet international safety standards with the ABB 2CSM204713R1801 E 91/32 PV device.
