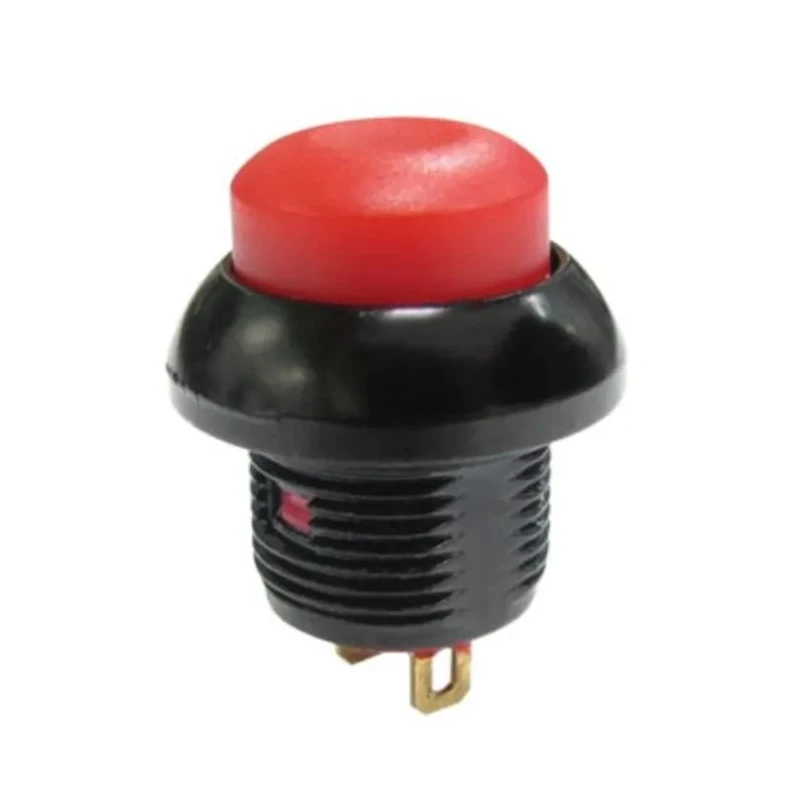

RS PRO Push Button Switch, Momentary, Panel Mount, 13.6 mm Cutout, SPST, Black LED, IP67, 36 V DC, 250 V AC 209-9127
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Material | Polyamide 6/6 |
| Operating Temperature | -30 °C to 85 °C |
| Model | 209-9127 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | SPST |
| Voltage Rating | 50V dc / 250V ac |
| Minimum Operating Temperature | -35°C |
| Panel Cutout Size | 13.6 mm |
| Thread | M12 x 0.75 |
| Terminal type | Solder Lug |
| Standards/Approvals | RS |
| LED Colour | Black |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Contact DC Voltage | 36V dc |
| Actuator Style | Raised Button |
| Switch Contact Current | 125mA |
| Operating Force | 2N - 5N |
| Mechanical Life | 1000000 cycles |
| Contact AC Voltage | 250V ac |
| Contact Bounce | 10 ms |
| Push Switch Operation | Off-(On) |
| Soldering | 350°C maximum for 5 seconds |
Key Features
- The switch operates with a momentary push-button mechanism.
- It has a raised dome actuator style made from Polyamide 6/6 material.
- The contact configuration is SPST with gold over silver-plated contacts.
- Rated for 36 V DC and 250 V AC operation with 125mA contact current.
- Suitable for operating temperatures from -30°C to 85°C.
- Offers IP67 ingress protection making it dust-tight and water-resistant.
- Panel cutout size is 13.6 mm with M12 x 0.75 thread for mounting.
- Mechanical life expectancy is 1,000,000 cycles.
Product Description
RS PRO 209-9127 Push Button Switch is a high-quality, sub-miniature, momentary push-button switch designed for panel mounting with a 13.6 mm cutout size. The switch configuration is SPST (single-pole, single-throw), providing reliable control for a single circuit. This switch includes a black LED indicator and an IP67 rating, ensuring protection against dust and water ingress, making it suited for harsh environmental conditions.
The actuator is a raised dome button crafted from durable Polyamide 6/6, offering both wear resistance and a premium feel. Its gold over silver-plated contacts ensure excellent electrical conductivity, while the switch supports a maximum contact voltage of 36 V DC and 250 V AC with a contact current rating of 125mA.
Engineered to withstand tough industrial environments, it operates reliably across a wide temperature range of -30°C to 85°C and boasts a mechanical life of up to 1,000,000 cycles. The mounting thread specification is M12 x 0.75, and the switch terminals use solder lug types for secure installation.
This versatile push-button switch is ideal for industrial automation, test and measurement equipment, telecommunications, networking hardware, and handheld devices. Its momentary Off-(On) operation ensures precise process activation and machine control.
The switch features an IP67 rating for dust and water resistance. Durable Polyamide 6/6 material actuator supports long-lasting use. Gold over silver-plated contacts enhance electrical performance and durability. Mechanical life of 1,000,000 operating cycles ensures reliability.
Solder lug terminals provide secure electrical connections. Suitable for operating temperatures from -35°C to 85°C. Panel mount with a 13.6 mm cutout size and M12 x 0.75 thread. Black LED for discreet indication and aesthetic integration.
Compact sub-miniature design for versatile application use. Ideal for industrial, telecommunications, and networking applications.
Explore our range of RS PRO Push Button Switches to find solutions that balance quality, reliability, and value. RS PRO products undergo rigorous testing and certification, designed to meet demanding engineering standards globally.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a SPST (single-pole, single-throw) contact configuration, allowing it to control a single circuit reliably.
It operates reliably across a temperature range of -30°C to 85°C, making it suitable for various environments.
The required panel cutout size for this switch is 13.6 mm, with a mounting thread specification of M12 x 0.75.
This model supports a maximum contact voltage of 36 V DC and 250 V AC, with a contact current rating of 125 mA.
The actuator is made from Polyamide 6/6, providing durability and wear resistance for long-lasting use.
Yes, it has an IP67 ingress protection rating, ensuring it is dust-tight and water-resistant, suitable for harsh conditions.
It uses solder lug terminals, which provide secure electrical connections for installation.
This push button switch has a mechanical life expectancy of up to 1,000,000 cycles, ensuring its reliability in operation.
The switch features a black LED indicator, which provides discreet indication and aesthetic integration.
The operating force for this model ranges from 2N to 5N, allowing for precise activation.
It is ideal for use in industrial automation, test and measurement equipment, telecommunications, and networking hardware.
This model is designed to meet RS standards, ensuring it adheres to demanding engineering requirements.
