| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.43mm |
| Length | 3.1mm |
| Model | BZX84C16-E3-08 |
| Mount Type | Surface |
| Series | BZX84 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 300mW |
| Diode Configuration | Single |
| Test Current It | 1mA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 16V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 40Ω |
| Surface Mount case | SOT-23 |

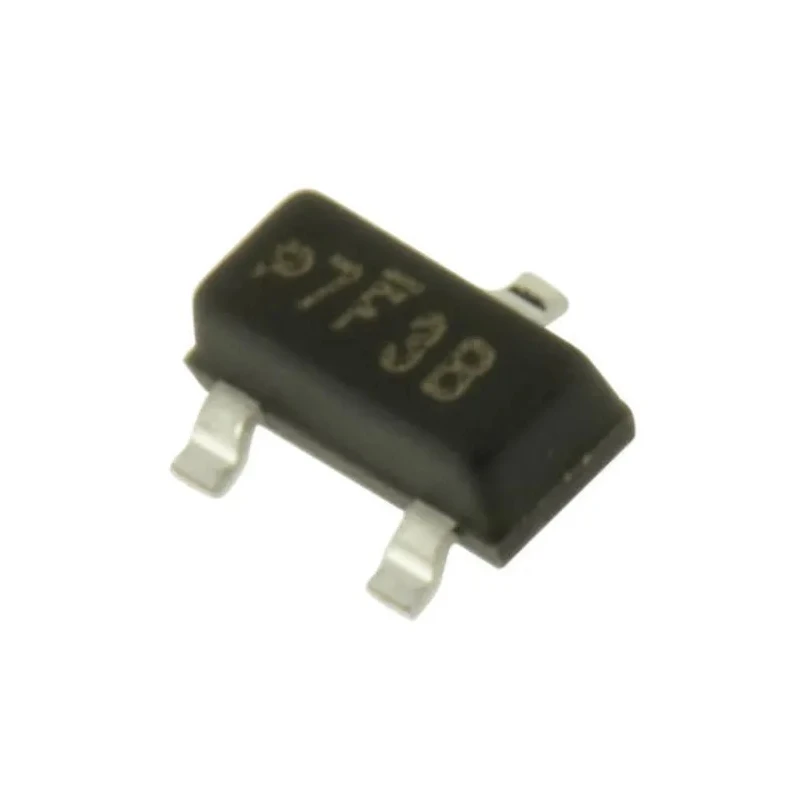

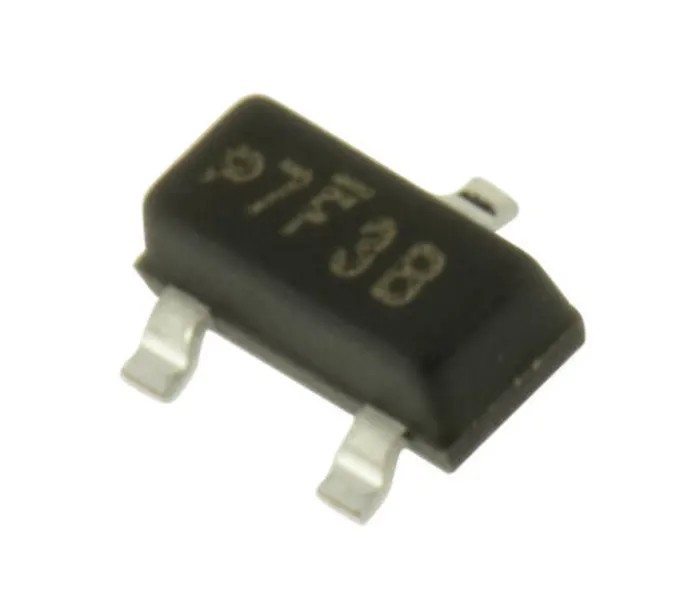

Vishay BZX84C16-E3-08 is a general purpose Zener diode designed for precise voltage regulation in electronic circuits. The device features a nominal Zener voltage of 16 V, able to dissipate up to 300 mW of power, and is housed in a compact SOT-23 surface mount package with 3 pins, making it ideal for space-constrained applications.
The diode is configured as a single element per chip and offers a voltage tolerance of approximately 5%, ensuring consistent and reliable voltage stabilization. It performs efficiently with a test current of 1 mA and exhibits a maximum Zener impedance of 40 ohms, minimizing voltage variation under load.
The device supports a broad operating temperature range, from -55 °C to 150 °C, enabling robust operation in industrial, automotive, and commercial environments. Its low maximum reverse leakage current of 50 nA helps reduce power losses and improve overall circuit stability.
This Zener diode complies with the automotive standard AEC-Q101, indicating it meets high reliability criteria for automotive electronics and other demanding applications. Its surface mount design facilitates automated assembly and compact PCB layouts.
Single diode configuration suitable for voltage regulation purposes. Nominal Zener voltage of 16 V with a tolerance of approximately 5%. Maximum power dissipation of 300 milliwatts for reliable performance. Compact SOT-23 surface mount package with 3 pins for efficient PCB design.
Operation temperature range from -55 °C up to 150 °C ensuring durability. Maximum Zener impedance of 40 ohms with a test current of 1 mA. Maximum reverse leakage current limited to 50 nanoamperes. Automotive standard AEC-Q101 certified device for high reliability.
Manufactured in China, suitable for electronics, power regulation, and automotive applications.
This component is ideal for use in industrial, automotive, laboratory, manufacturing, and electrical applications requiring voltage regulation and protection. The small footprint and surface mount technology enable integration into modern compact electronic devices.
