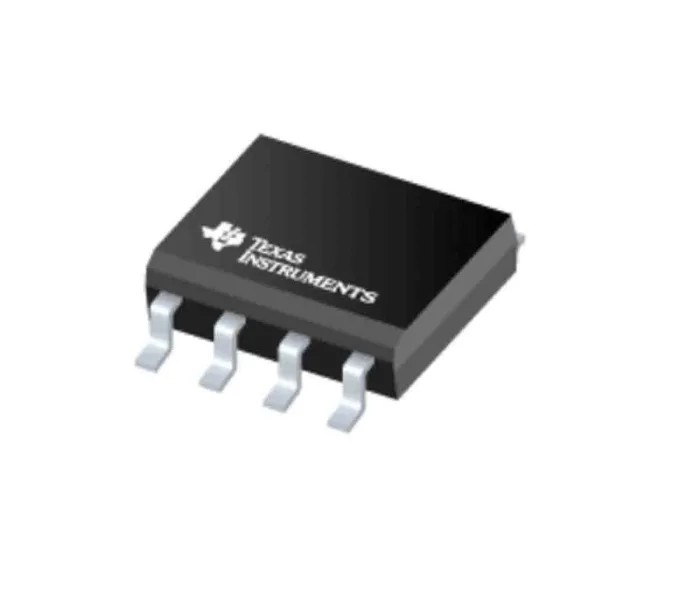

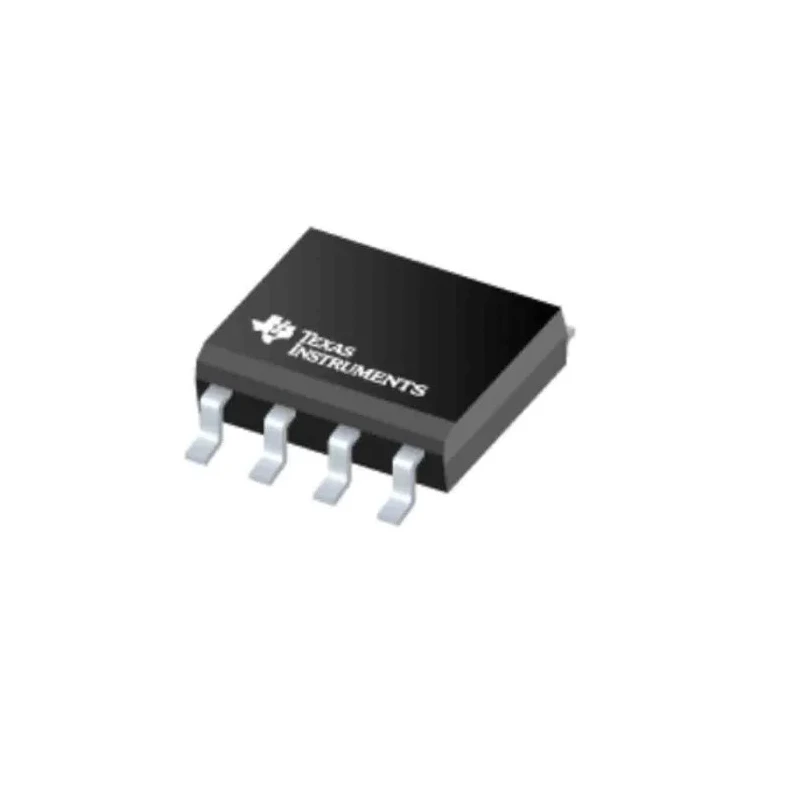

Texas Instruments Line Transceiver Differential Non-Inverting 8-Pin SOIC SN65LBC179D
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Texas Instruments |
| Height | 1.75mm |
| Length | 5mm |
| Model | SN65LBC179D |
| Width | 3.98mm |
| Mount Type | Surface |
| Output type | Differential |
| Series | SN65LBC179 |
| Input Type | Differential |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| IC Type | Line Transceiver IC |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | SN75 |
| Logic Function | Line Transceiver |
| Minimum Supply Voltage | 4.75V |
| Maximum High Level Output Current | -60mA |
| Maximum Propagation Delay Time @ CL | 30ns |
| Supply Current | 5mA |
| Maximum Low Level Output Current | 60mA |
Key Features
- Operates with a single differential channel for precise signal transmission.
- Features a non-inverting logic function for consistent output behavior.
- Surface-mount package SOIC with 8 pins for compact PCB integration.
- Compliant with operating voltages ranging from 4.75 V to 5.25 V.
- Supports maximum propagation delay time of 30 nanoseconds for fast response.
- Operating temperature range extends from -40°C to 85°C, suitable for harsh environments.
- Maximum output current tolerance of ±60 mA ensuring driving capability.
- Compact dimensions with 5 mm length, 3.98 mm width, and 1.75 mm height.
Product Description
Texas Instruments SN65LBC179D is a high-performance line transceiver IC designed for differential signaling applications. This device supports one channel with non-inverting polarity and differential input/output, making it ideal for industrial communication and signal isolation tasks.
Housed in a compact 8-pin SOIC surface mount package, this transceiver offers flexibility in PCB design while maintaining reliable signal integrity. It operates within a voltage range of 4.75 V to 5.25 V and has a maximum supply current of 5 mA, supporting low power consumption designs.
The device features a maximum propagation delay of 30 nanoseconds at a given capacitive load, enabling fast data transmission speeds essential for industrial control, automation systems, and embedded applications.
Designed to withstand operating temperatures from -40°C to 85°C, the SN65LBC179D provides robustness in demanding environments. Its output current capabilities of ±60 mA ensure it can drive loads effectively while maintaining signal quality.
With precise dimensions (5 mm length, 3.98 mm width, and 1.75 mm height), this line transceiver suits compact electronic modules. It is part of the SN65LBC179 series by Texas Instruments, a trusted brand in semiconductor solutions.
Operates a single differential channel for signal transmission. Non-inverting logic ensures consistent outputs. Compact 8-pin SOIC surface-mount package. Voltage supply range between 4.75 V and 5.25 V. Maximum propagation delay of 30 ns for fast operation.
Operating temperature range from -40°C to 85°C. Maximum output current of ±60 mA. Compact dimensions suitable for various PCB layouts. Low typical supply current of 5 mA. Manufactured in Mexico to quality standards.
This Line Transceiver IC is widely used across electronics manufacturing, industrial automation, instrumentation, and communication systems requiring reliable differential signaling and voltage level compatibility.
Explore more from the semiconductor line transceiver category at EnvMart for comprehensive industrial-grade components meeting rigorous performance and reliability standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for the SN65LBC179D line transceiver is 5.25 V.
This model operates within a temperature range of -40°C to 85°C, making it suitable for harsh environments.
The maximum propagation delay time for the SN65LBC179D is 30 nanoseconds.
This line transceiver supports one differential channel for signal transmission.
The dimensions of this model are 5 mm in length, 3.98 mm in width, and 1.75 mm in height.
The SN65LBC179D is housed in an 8-pin SOIC surface mount package.
The typical supply current for the SN65LBC179D is 5 mA.
This model has a maximum output current tolerance of ±60 mA.
The SN65LBC179D performs a non-inverting logic function, ensuring consistent output behavior.
The input type of the SN65LBC179D is differential.
The SN65LBC179D is manufactured in Mexico.
This line transceiver is suitable for industrial communication, signal isolation tasks, and embedded applications.
