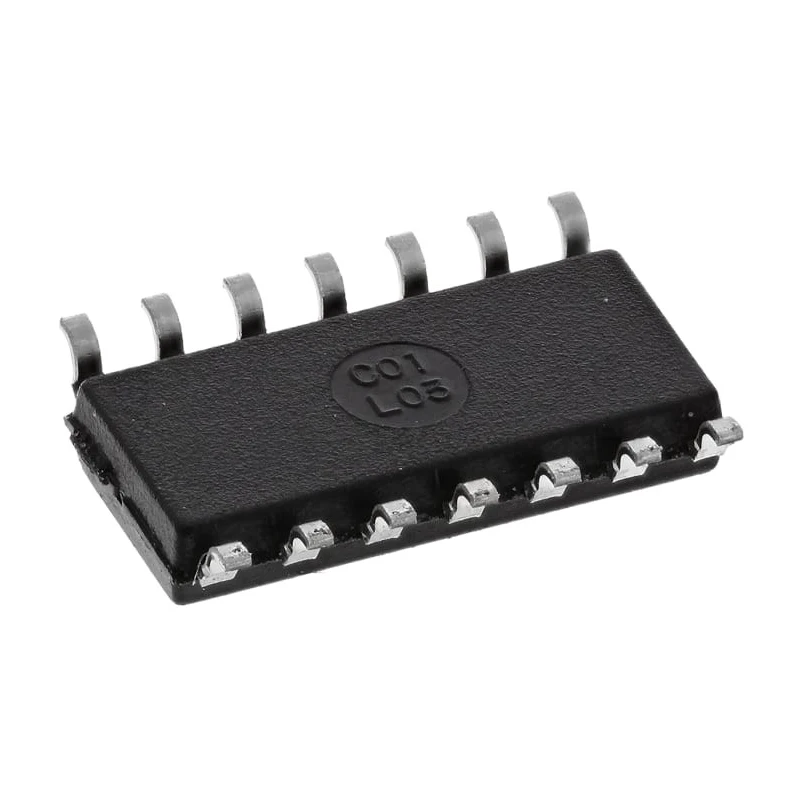

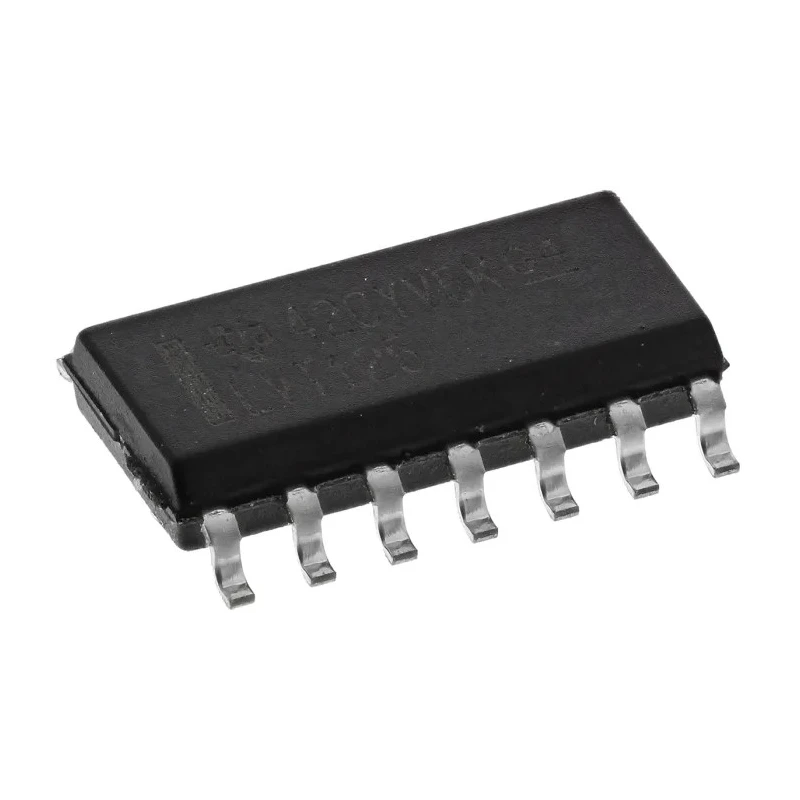

Texas Instruments 4-Channel Non-Inverting 3 State Buffer 14-Pin SOIC SN74LVT125D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 8.65mm |
| Model | SN74LVT125D |
| Mount Type | Surface |
| Compatibility | Input LVTTL/TTL, Output LVTTL |
| Output type | 3 State |
| Series | SN74LVT125 |
| Input Type | Single Ended |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 3.6V |
| Logic Family | LVT |
| Logic Function | Buffer & Line Driver |
| Minimum Supply Voltage | 2.7V |
| Maximum High Level Output Current | -32mA |
| Maximum Low Level Output Current | 64mA |
Key Features
- Features low-voltage BiCMOS technology operating at 2.7 to 3.6 volts supply.
- Non-inverting logic function with 4 channels and 3-state output for flexible digital interfacing.
- Surface-mount SOIC package with 14 pins ensures easy PCB integration.
- Designed for input LVTTL/TTL compatibility and LVTTL output standards.
- Operates within temperature range from -40°C to 85°C suitable for various environments.
- Complies with RoHS standards ensuring environmental safety and quality.
- Maximum output currents of -32mA (high level) and 64mA (low level) support robust signal driving.
Product Description
Texas Instruments SN74LVT125D is a 4-channel non-inverting 3 state buffer designed for efficient digital signal buffering and line driving applications. It comes in a compact 14-pin SOIC surface mount package, making it suitable for modern PCB assembly in electronics manufacturing.
This logic IC operates on low-voltage BiCMOS technology with an operating voltage range of 2.7V to 3.6V, combining performance with energy efficiency. It supports input LVTTL/TTL and produces LVTTL compatible output, ensuring compatibility across various digital systems where standard logic signals are used.
With 4 independent buffer channels, the SN74LVT125D allows for multiplexing and isolation of digital signals. Its 3-state outputs provide high impedance modes to facilitate bus-oriented applications and flexible system designs.
Key electrical characteristics include a maximum high-level output current of -32mA and a maximum low-level output current of 64mA, supporting reliable signal transmission even under load conditions. The device is rated for operating temperatures from -40°C to 85°C, qualifying it for industrial level applications.
This buffer supports RoHS compliance, aligning with environmental and regulatory standards for electronic components. Low-voltage BiCMOS logic operating from 2.7V to 3.6V supply. Non-inverting arrangement with single-ended input.
Surface-mount SOIC package with 14 pins for compact PCB footprint. Four independent buffer and line driver channels with 3 state outputs. Compatible with standard LVTTL/TTL input and output logic levels. Wide operating temperature range ensures application versatility.
Meets RoHS environmental compliance standards.
This Texas Instruments logic IC is suitable for electronic manufacturing, industrial automation, communications equipment, and other electronics requiring reliable digital buffering and line driving. Browse the Logic ICs category on EnvMart for complementary components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a voltage range of 2.7V to 3.6V, utilizing low-voltage BiCMOS technology.
It features four independent channels, allowing for multiplexing and isolation of digital signals.
The maximum high-level output current is -32mA, while the maximum low-level output current is 64mA.
The SN74LVT125D is housed in a 14-pin SOIC surface mount package, suitable for compact PCB integration.
It is designed for input LVTTL/TTL compatibility and produces LVTTL compatible outputs, ensuring broad compatibility with digital systems.
The operating temperature range for the SN74LVT125D is from -40°C to 85°C, making it suitable for various environments.
This unit performs as a non-inverting buffer and line driver, providing flexible digital interfacing options.
Yes, it complies with RoHS standards, ensuring it meets environmental safety and quality regulations.
The dimensions are 1.58mm in height and 8.65mm in length, making it compact for surface mounting.
It is suitable for electronic manufacturing, industrial automation, and communications equipment requiring reliable digital buffering and line driving.
