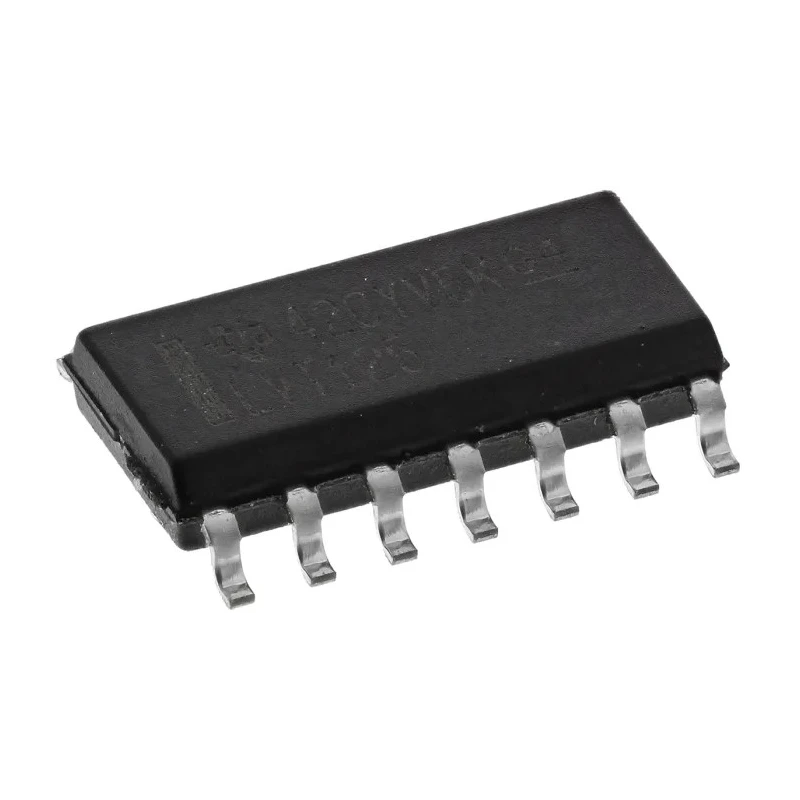

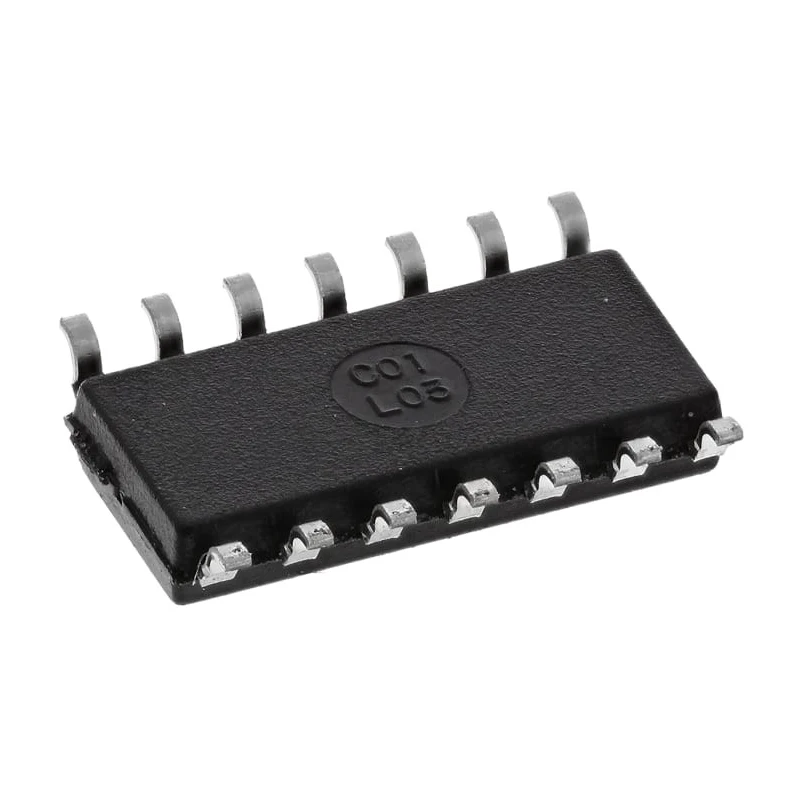

Texas Instruments 4-Channel Non-Inverting 3 State Buffer, 14-Pin SOIC, 2.7-3.6V Supply SN74LVT125D

Texas Instruments SN74LVT125D is a 4-channel non-inverting 3-state buffer delivered in a 14-pin SOIC package designed for low-voltage BiCMOS logic applications. Operating from 2.7V to 3.6V supply voltage, it supports input compatibility with LVTTL/TTL and provides LVTTL output, making it ideal for modern digital circuitry requiring buffered signals and line driving capabilities.

This device offers four independent buffer channels with non-inverting outputs, each capable of driving loads with maximum high-level output current of -32mA and low-level output current of 64mA. The 3-state output feature enables multiple device outputs to share a common bus without interference, enhancing design flexibility in multiplexed systems.

The SN74LVT125D withstands industrial temperature ranges from -40°C to 85°C, making it suitable for a wide array of applications including industrial control, automotive electronics, communication equipment, and instrumentation. Its surface mount SOIC package provides ease of assembly and efficient board space utilization.

The component is fully RoHS compliant, supporting sustainable manufacturing practices. Precise mechanical dimensions of 8.65 mm length and 1.58 mm height facilitate exact PCB design and layout management.

High-speed buffer with four independent non-inverting channels. 3-state output feature allows effective bus sharing and multiplexing. Compatible with input LVTTL/TTL and output LVTTL logic levels. Operating temperature range from -40°C to 85°C ensures reliability in industrial environments.

Surface mount SOIC 14-pin package facilitates compact PCB layouts. Maximum supply voltage of 3.6V ensures extended operational margin. Maximum high-level output current of -32mA and low-level output current of 64mA optimize signal integrity.

RoHS compliant, supporting environmentally conscious manufacturing. Dimensions: length 8.65 mm and height 1.58 mm for precise mechanical integration.

This buffer IC is widely used in electronic designs encompassing industrial automation, laboratory instrumentation, communications systems, and embedded computing due to its reliability and electrical performance.
