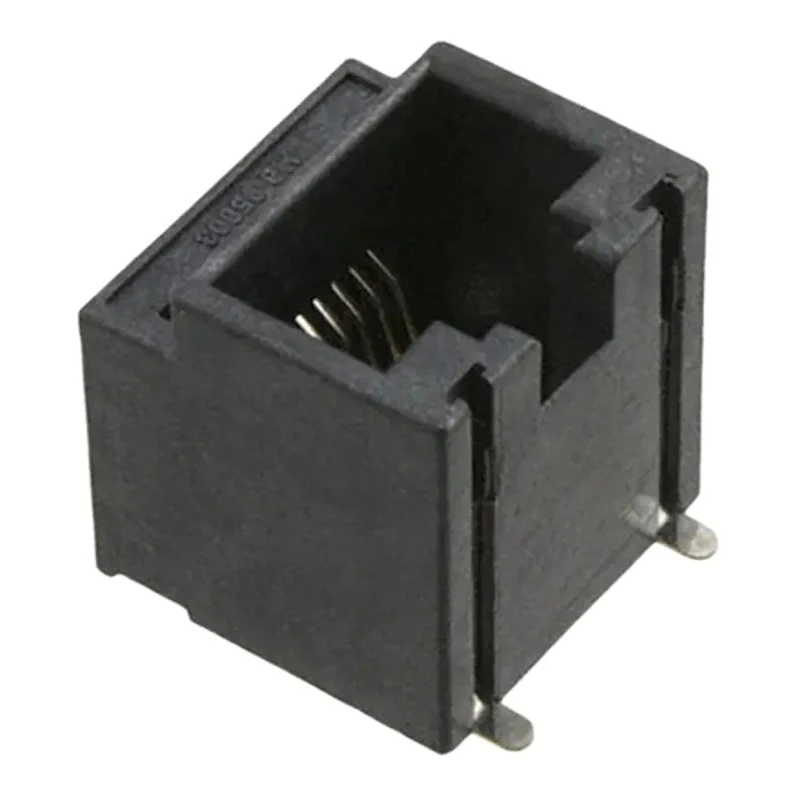

Molex RJ45 Connector Female Surface Mount Cat3 Unshielded Vertical 2 Port 8 Way
Specifications
| Country of Origin | Ireland |
|---|---|
| Brand | Molex |
| Orientation | Vertical |
| Length | 15.08mm |
| Model | RJ45 |
| Depth | 15.7mm |
| Connector Type | Modular Jack |
| Number Of Ways | 8 |
| Width | 15.24mm |
| Mount Type | Surface |
| Contact Material | Copper Alloy |
| Series | 85510 |
| Number Of Ports | 2 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Shield Type | Unshielded |
| Contact Plating | Gold over Nickel |
| Connector Gender | Female |
| LAN Category | Cat3 |
| Ethernet Connector Type | RJ45 |
Key Features
- Constructed with copper alloy contacts plated with gold over nickel for durability.
- Surface mount type designed for easy PCB installation with solder termination.
- Supports Cat3 LAN category providing standard Ethernet connectivity.
- Features unshielded modular jack with vertical orientation and 2 ports, 8 ways.
- Operating temperature range from -40°C to 85°C ensuring performance in various environments.
- Non-magnetic design without LED or light pipe indicators for simplified use.
- Complies with series 85510 standards and manufactured in Ireland.
Product Description
Molex brand 85510-5020 model RJ45 Connector is a female, surface mount Ethernet connector designed for Cat3 unshielded networking applications. This vertical orientation modular jack includes 2 ports with 8 ways, offering stable and reliable connection standards for LAN setups.
The connector features copper alloy contacts with gold over nickel plating to maintain signal integrity and corrosion resistance. Designed for solder termination, it simplifies assembly on printed circuit boards with a compact form factor measuring 15.08mm in length, 15.24mm in width, and 15.7mm in depth.
Operating reliably within a temperature range of -40°C to 85°C, this connector is suitable for various industrial and commercial applications including electrical components manufacturing, networking equipment, and telecommunications infrastructures.
The unshielded design emphasizes ease of implementation in environments where electromagnetic interference is controlled. Its vertical orientation and absence of magnetic or LED features reduce complexity while maintaining IEC standard compatibility.
Constructed with durable copper alloy contacts plated with gold over nickel for reliable connectivity. Surface mount solder termination ensures firm PCB retention and ease of use. Cat3 LAN category supports standard Ethernet speeds and configurations.
Compact size with precise dimensions supports high-density PCB layouts. Wide temperature operation range enables usage in harsh industrial environments. Manufactured in Ireland ensuring quality and compliance. Compatible with mating plugs from the Molex 90075 series for extended configurations.
This Molex RJ45 connector series is essential for users in electronics, networking, manufacturing, and telecommunications who require dependable, industry-standard Ethernet Connectors. Explore the broad Molex product line and trusted connectors on EnvMart for your technical and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This RJ45 connector operates reliably within a temperature range of -40°C to 85°C, making it suitable for various industrial and commercial applications.
The modular jack features 2 ports, allowing for multiple connections in a compact design.
It uses solder termination, which simplifies assembly on printed circuit boards.
The connector measures 15.08mm in length, 15.24mm in width, and 15.7mm in depth, making it suitable for high-density PCB layouts.
This connector supports Cat3 LAN category, providing standard Ethernet connectivity.
It is constructed with copper alloy contacts that are plated with gold over nickel for enhanced signal integrity and corrosion resistance.
The connector is designed in a vertical orientation, which aids in space-saving installations on PCBs.
This RJ45 connector is unshielded, emphasizing ease of implementation in environments with controlled electromagnetic interference.
It complies with the Molex series 85510 standards, ensuring compatibility with industry specifications.
This connector is manufactured in Ireland, ensuring quality and compliance with industry standards.
It is compatible with mating plugs from the Molex 90075 series, allowing for extended configurations.
This connector is suitable for various applications including electrical components manufacturing, networking equipment, and telecommunications infrastructures.
