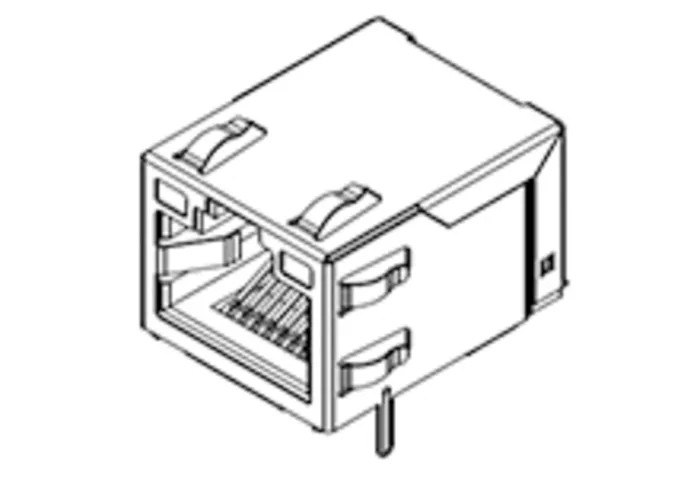

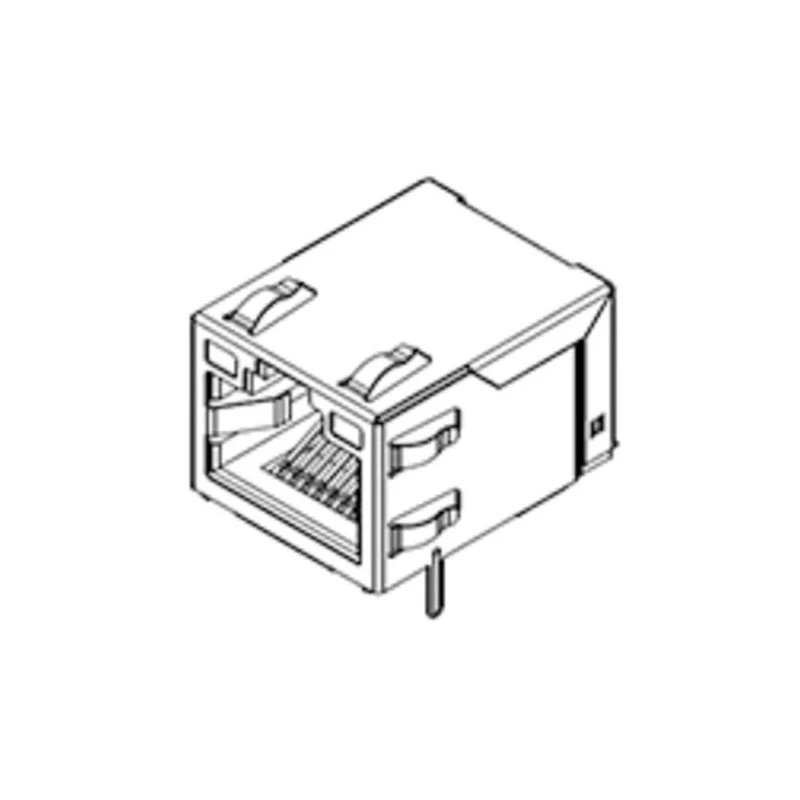

Molex RJ45 Connector Female, Surface Mount, Cat5 Cat5e Shielded Right Angle 1 Port 8 Way
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Orientation | Right Angle |
| Length | 16.2mm |
| Model | RJ45 |
| Depth | 20.5mm |
| Connector Type | Modular Jack |
| Number Of Ways | 8 |
| Width | 13.3mm |
| Mount Type | Surface Mount |
| Contact Material | Phosphor Bronze, Brass |
| Series | 48074 |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Shield Type | Shielded |
| Contact Plating | Gold, Tin |
| Connector Gender | Female |
| LAN Category | Cat5, Cat5e |
| Ethernet Connector Type | RJ45 |
Key Features
- This connector features a modular jack design suitable for Ethernet applications.
- Shielded type with integrated magnetics ensures signal integrity.
- Constructed with phosphor bronze and brass contacts plated with gold and tin for reliable connectivity.
- Operates effectively between -40°C to 85°C for durability in varying environments.
- Includes LED indicators and panel grounding tabs for enhanced functionality.
- Surface mount mounting type for easy PCB integration.
- Designed with right angle orientation to aid in compact electronic designs.
- Ideal for industrial, networking, telecommunications, and electronic manufacturing applications.
Product Description
Molex 48074-9101 RJ45 Connector Female is a surface mount modular jack connector designed for Ethernet networking with Cat5 and Cat5e LAN categories. Featuring a shielded design and integrated magnetics, this connector provides excellent signal performance and reliability. It supports one port with eight ways, offering an efficient connection interface on printed circuit boards.
The connector is built with durable phosphor bronze and brass contact materials plated in gold and tin to minimize corrosion and maintain high conductivity. Its operational temperature range of -40°C to 85°C makes it suitable for rigorous industrial environments.
With right angle orientation and luminous LED indicators, this modular jack is ideal for compact and efficient electronics assembly. The surface mount mounting style allows for straightforward installation on PCBs without interfering with adjacent components.
Applications include industrial networking, manufacturing equipment, telecommunications infrastructure, and electronic component assemblies demanding reliable Ethernet connectivity. This RJ45 connector safeguards signal integrity with shielding and comes with panel grounding tabs for effective noise reduction.
This connector features a modular jack design suitable for Ethernet applications. Shielded type with integrated magnetics ensures signal integrity. Constructed with phosphor bronze and brass contacts plated with gold and tin for reliable connectivity.
Operates effectively between -40°C to 85°C for durability in varying environments. Includes LED indicators and panel grounding tabs for enhanced functionality. Surface mount mounting type for easy PCB integration. Designed with right angle orientation to aid in compact electronic designs.
Ideal for industrial, networking, telecommunications, and electronic manufacturing applications.
Set contains 1 RJ45 Female Connector with all specified technical features, series 48074. Perfect for professionals requiring high-quality Ethernet connectors for manufacturing or maintenance.
Explore more Ethernet Connectors from Molex and other leading brands on EnvMart, suitable for diverse electronic and communication system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This RJ45 connector operates effectively between -40°C to 85°C, making it suitable for various industrial environments.
It features a surface mount design, allowing for straightforward installation on printed circuit boards without interfering with adjacent components.
This model supports one port with eight ways, providing an efficient connection interface for Ethernet applications.
The connector is constructed with phosphor bronze and brass contacts, which are plated with gold and tin to minimize corrosion and ensure reliable connectivity.
This model is designed with a right angle orientation, which aids in compact electronic designs.
It is compatible with Cat5 and Cat5e LAN categories, making it suitable for various Ethernet networking applications.
Yes, it includes LED indicators and panel grounding tabs for enhanced functionality and effective noise reduction.
The connector has a depth of 20.5mm and a width of 13.3mm, providing compact dimensions for integration into electronic assemblies.
It uses a solder termination type, which is standard for reliable connections in electronic applications.
This connector is a female modular jack, designed for use in Ethernet applications.
The country of origin for this connector is China.
