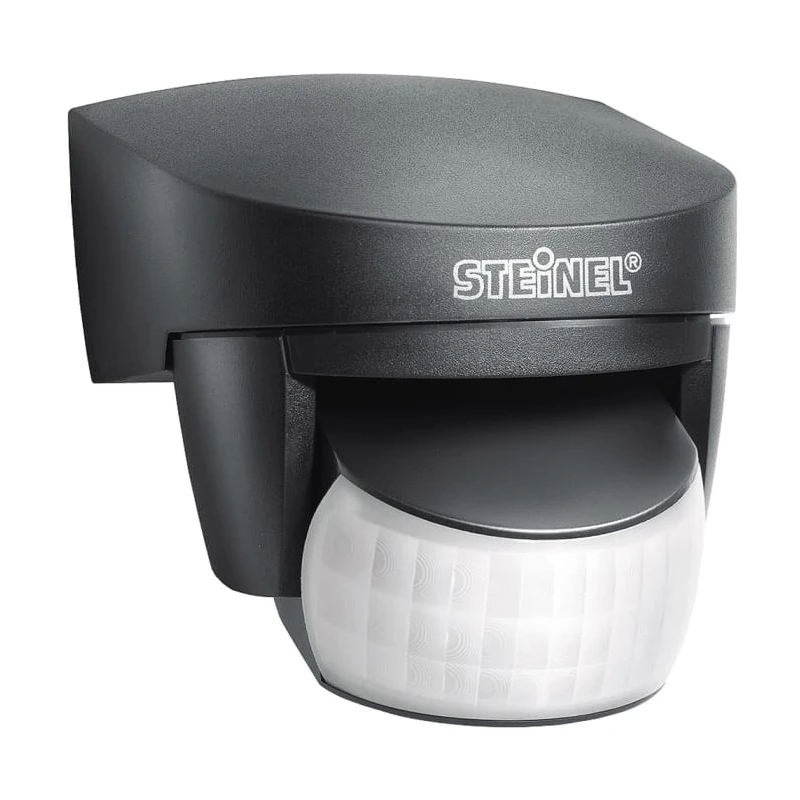

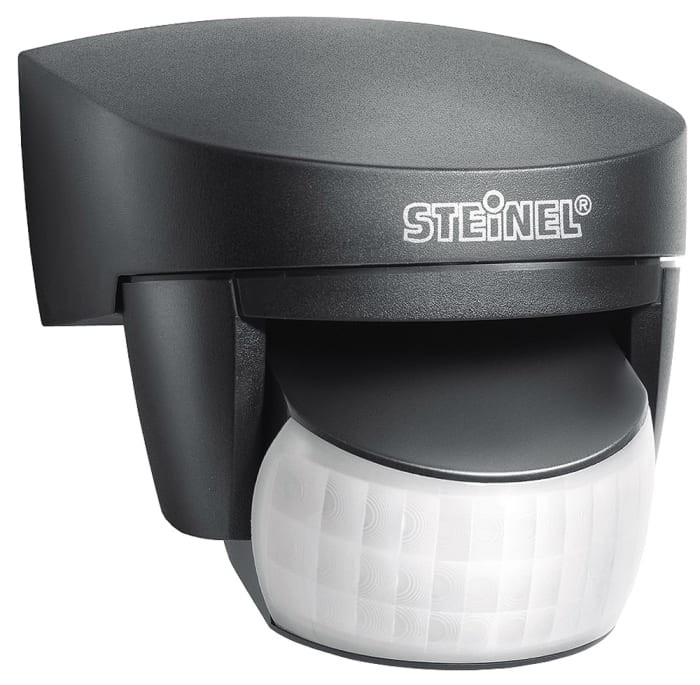

Steinel Passive Infrared PIR Sensor Wall Mount Black 240V AC IS 140-2 608811

Steinel 608811 Passive Infrared PIR Sensor is an advanced motion detector that uses intelligent sensor technology to detect movement and ambient light levels, automatically controlling connected lighting or alarm systems. The device operates from a 240V AC supply and features a robust IP54 rated enclosure suitable for both indoor and outdoor installations.

Featuring a 140° detection angle, the sensor's lens can swivel 180° horizontally and tilt 90° vertically, allowing tailored coverage for specific applications. Its maximum sensing range extends up to 14 meters, providing reliable detection over a wide area. The sensor employs precision spherical Fresnel lenses for enhanced detection accuracy.

The time delay settings are adjustable from 8 seconds to 35 minutes, with a brightness response threshold adjustable between 2 and 2000 lux, enabling operation only in desired lighting conditions. The detection zone can be customized further by applying the provided shrouds to mask specific areas.

The PIR sensor is designed for wall and surface mounting, finished in black for unobtrusive installation. Its IP54 protection class ensures resistance to dust ingress and water splashes, making it suitable for harsh environments.

Detects motion with a 140° detection angle for wide coverage. Adjustable lens allows 180° horizontal swivel and 90° vertical tilt for precise positioning. Maximum detection range of 14 meters for effective area sensing. Time delay can be set from 8 seconds up to 35 minutes to suit usage needs.

Brightness response adjustable between 2 and 2000 lux for ambient light control. IP54 rated for protection against dust and water splashes. Wall and surface mountable with black finish blending in with surroundings. Precision spherical Fresnel lenses enhance detection accuracy.

Detection area can be masked using supplied shrouds for targeted detection. Designed for automatic light control and alarm triggering in security applications.

This sensor is ideal for use in industrial, commercial, residential, and security systems, enabling efficient energy management by automating lighting and alarm control. It is suitable for installation in areas close to buildings, entrances, and corridors.
