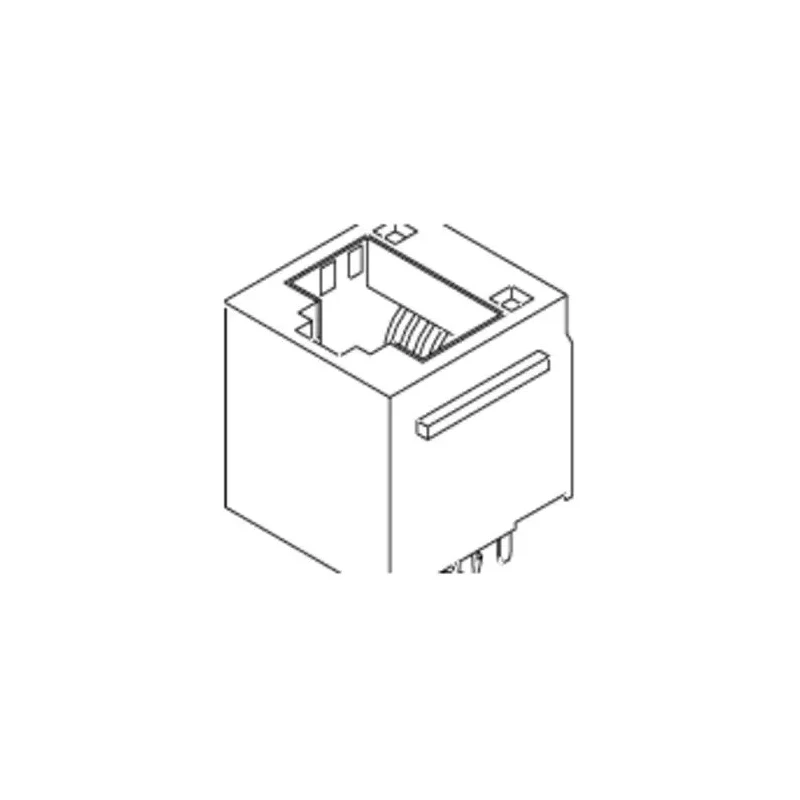

Molex RJ45 Cat5e Shielded Female Modular Jack Ethernet Connector, Through Hole, Vertical Orientation, 1 Port 8 Way RJ45

Free Delivery in India | Lowest Global Shipping Charges

Molex RJ45 Cat5e Shielded Female Modular Jack Ethernet Connector, Through Hole, Vertical Orientation, 1 Port 8 Way RJ45

Name: Molex RJ45 Cat5e Shielded Female Modular Jack Ethernet Connector, Through Hole, Vertical Orientation, 1 Port 8 Way RJ45
Brand: Molex
SKU: 399411
Price: 4.44 USD
Availability: InStock



Category Ethernet Connector Brand Molex Condition New

Specifications

Country of Origin	India
Brand	Molex
Orientation	Vertical
Length	16.64mm
Model	RJ45
Depth	16.25mm
Connector Type	Modular Jack
Number Of Ways	8
Width	18mm
Mount Type	Through Hole
Contact Material	Phosphor Bronze
Series	85507
Number Of Ports	1
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Shield Type	Shielded
Contact Plating	Gold over Nickel Palladium
Connector Gender	Female
LAN Category	Cat5e
Ethernet Connector Type	RJ45

Key Features

Modular jack provides shielded, vertical orientation connection through hole mounted on PCB.
Features 1 port with 8 ways for secure Cat5e network cabling.
Constructed with phosphor bronze contacts plated with gold over nickel palladium for reliable conductivity.
Operating temperature range from -40°C to 85°C ensures performance stability.
Termination type is solder, suitable for secure PCB assembly.
Compact dimensions include length 16.64 mm, width 18 mm, and depth 16.25 mm for versatile integration.
No magnetic or LED features included in this connector model.

Product Description

Molex RJ45 RJ45 Connector Female Through Hole 1 Port 8 Way is a shielded modular jack Ethernet connector designed for Cat5e network applications offering reliable performance and connectivity.

This connector features one port and an 8-way female configuration, optimized for vertical, through-hole mounting on printed circuit boards. Constructed with high-quality phosphor bronze contact material with gold over nickel palladium plating, it ensures excellent electrical conductivity and corrosion resistance.

The product supports operating temperatures from -40°C to a maximum of 85°C, making it suitable for use in various industrial and electronic equipment environments. The solder termination type facilitates robust mounting and a secure electrical connection.

Compact physical specifications of length 16.64 mm, width 18 mm, and depth 16.25 mm enable easy integration in space-constrained designs. Modular jack providing shielded Cat5e Ethernet connectivity. Single port, 8-way female connector with vertical orientation.

Phosphor bronze contacts with gold over nickel palladium plating. Suitable for through-hole mounting and solder termination. Operating temperature range from -40°C to 85°C. Compact dimensions are 16.64 mm length, 18 mm width, and 16.25 mm depth.

No integrated magnetics or LEDs in this connector. Commonly used in networking equipment, telecommunications, industrial automation systems, and data communication devices requiring reliable Ethernet Cat5e connections. Explore a wide range of high-quality connectors and electronic components in the Ethernet Connectors category on EnvMart for diverse industrial and technological applications.
