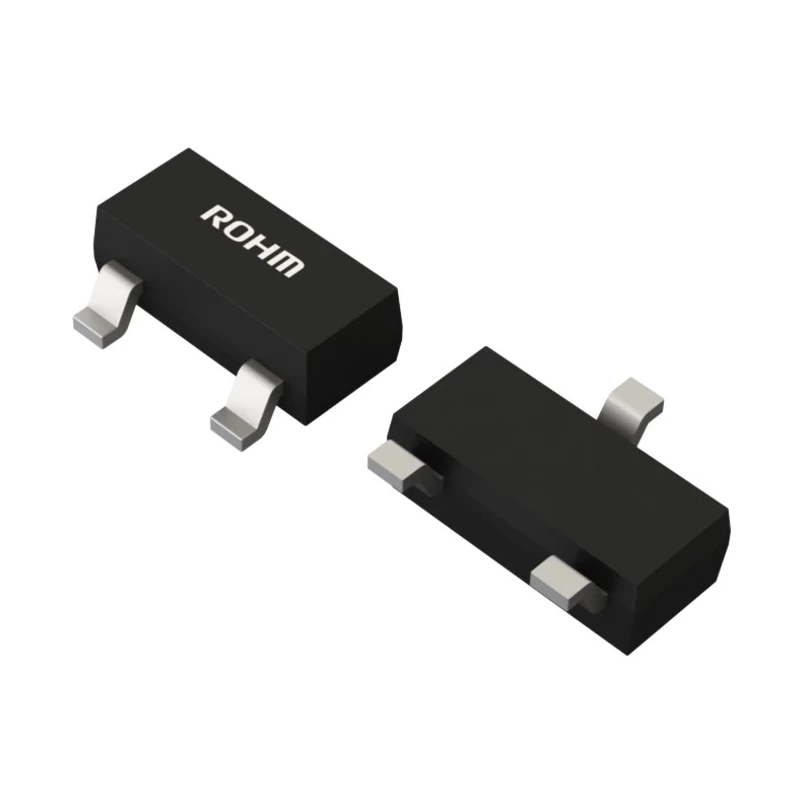

ROHM 2-Element Bi-Directional ESD Protection Diode, 100 W, 3-Pin SOT-23 ESD27VHYT116
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Model | ESD27VHYT116 |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | IEC61000-4-2 |
| Pin Count | 3 |
| Number of Elements per Chip | 2 |
| Clamping Voltage VC | 24V |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 29.19V |
| Maximum Reverse Stand-off Voltage Vwm | 24V |
| Peak Pulse Power Dissipation Pppm | 100W |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- This diode features a 24 V maximum reverse stand-off voltage for reliable device guarding.
- Bidirectional configuration allows protection in both voltage polarities.
- It supports an ESD protection level of ±30 kV according to IEC61000-4-2 standards.
- Surface mount design ensures easy PCB integration with a small mold type footprint.
- Operates efficiently within the temperature range of -55°C to 150°C.
- Low maximum reverse leakage current of 100 nA minimizes power loss in standby.
- Its 8 pF capacitance suits high speed data line protection applications.
- Ideal for safeguarding sensitive electronic circuits from transient voltage spikes.
Product Description
ROHM ESD27VHYT116 is a high-reliability 2-element bi-directional ESD protection diode packaged in a compact SOT-23 with 3 pins. It offers a peak pulse power dissipation of 100 W, making it suitable for robust electrostatic discharge protection in a variety of electronic devices.
The diode has a maximum reverse stand-off voltage (VRWM) of 24 V and a clamping voltage of 24 V. It exhibits a very low reverse leakage current of 100 nA and a capacitance of 8 pF, which is beneficial for signal integrity in high-speed data lines. This surface mount component is designed for easy PCB implementation while providing superior protection from voltage spikes.
Operating temperature ranges from -55°C to 150°C, enabling its use in harsh environments such as industrial electronics, telecommunications, consumer electronics, and automotive applications. The diode conforms to IEC61000-4-2, ensuring a high ESD protection level of ±30 kV contact discharge, safeguarding sensitive components from damaging electrical surges.
This ESD Protection Diode offers fast response and low clamping voltage. The device has a small mold type package ideal for space-constrained designs. Its bidirectional configuration is suitable for bidirectional voltage transients.
High surge resistance extends reliability and device protection over time. The diode is RoHS compliant and suitable for automated assembly processes.
ROHM's ESD27VHYT116 diode is widely used in consumer electronics, industrial control equipment, instrumentation, and communication systems where ESD protection is critical. The compact SOT-23 form factor supports compact and efficient PCB layouts for modern electronic devices.
Set includes 1 Pc ROHM ESD27VHYT116 diode in SOT-23 package. Explore other semiconductor components and ESD protection devices in EnvMart for your circuit protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse stand-off voltage (VRWM) of the ROHM ESD27VHYT116 diode is 24 V.
This model has a peak pulse power dissipation of 100 W, making it suitable for robust ESD protection.
The diode operates efficiently within a temperature range of -55°C to 150°C.
The clamping voltage (VC) of the ROHM ESD27VHYT116 is 24 V.
It exhibits a capacitance of 8 pF, which is beneficial for high-speed data line protection applications.
This diode features a 3-pin configuration, packaged in a compact SOT-23 format.
The diode is designed for surface mounting, ensuring easy PCB integration.
The maximum reverse leakage current is 100 nA, which helps minimize power loss in standby.
Yes, it conforms to IEC61000-4-2 standards, ensuring a high level of ESD protection.
It is widely used in consumer electronics, industrial control equipment, instrumentation, and communication systems where ESD protection is critical.
The minimum breakdown voltage (Vbr) of the ESD27VHYT116 is 29.19 V.
The diode features a bi-directional configuration, allowing protection in both voltage polarities.
