| Country of Origin | China |
|---|---|
| Brand | STMicroelectronics |
| Height | 0.7mm |
| Length | 1.3mm |
| Model | BAT41KFILM |
| Width | 0.9mm |
| Mount Type | Surface |
| Series | BAT41 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-523 |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 20μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1A |
| Maximum Forward Voltage Vf | 1V |

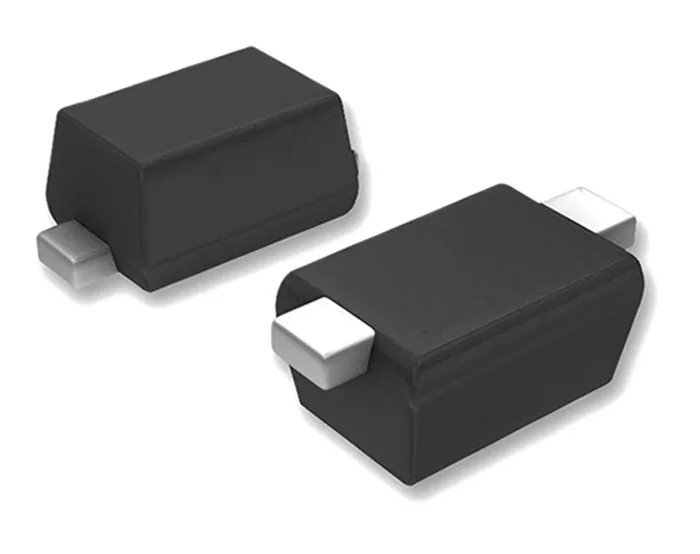

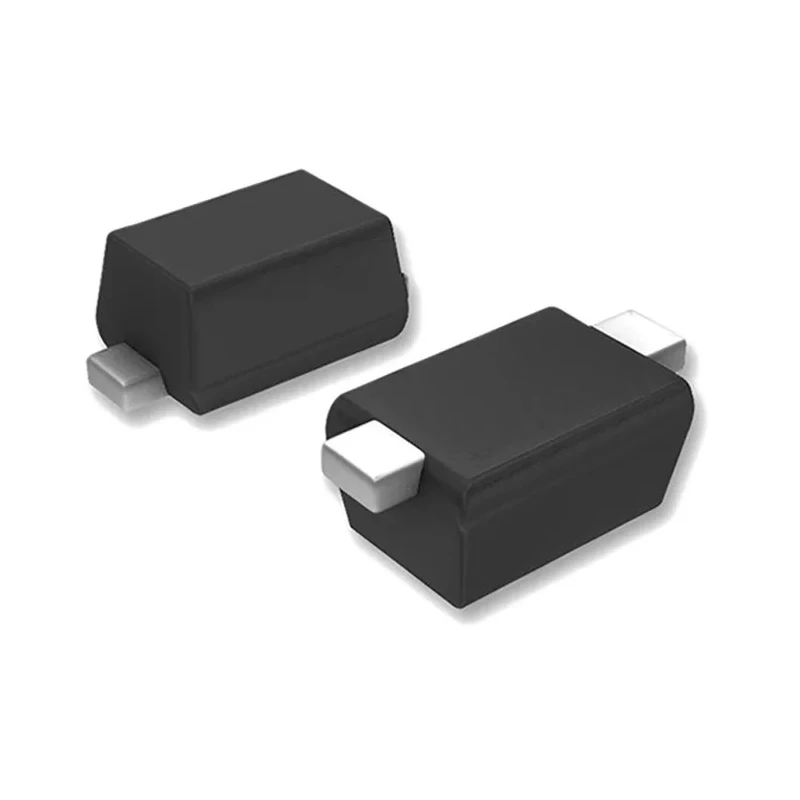

STMicroelectronics BAT41KFILM is a high-efficiency Schottky diode designed for surface-mount applications requiring low forward voltage and fast switching. It features a single diode configuration housed in a compact 2-pin SOD-523 package with dimensions of 1.3 mm length, 0.9 mm width, and 0.7 mm height. The diode can handle a continuous forward current of up to 200 mA and withstands a peak reverse repetitive voltage of 100 V, making it suitable for rectification and protection circuits in electronic devices.
The BAT41KFILM diode offers a maximum forward voltage of 1 V and a peak non-repetitive forward surge current of 1 A, providing robust performance in transient conditions. Its low peak reverse current of 20 μA ensures minimal leakage, enhancing circuit efficiency and thermal management under continuous operation up to 150°C.
This Schottky diode is ideal for use in power management, signal rectification, and electronic switching across industrial, electronics manufacturing, telecommunications, and consumer electronics sectors. Its surface mount design supports automated assembly, improving production efficiency in high-volume manufacturing environments.
It does not have specific automotive certifications but meets general industrial semiconductor quality. This diode features a maximum forward voltage of 1V ensuring efficient switching performance. It supports a maximum continuous forward current of 200 mA and a peak non-repetitive forward surge current of 1A.
Its peak reverse repetitive voltage rating is 100 V, with a low peak reverse current of 20 μA. Designed for surface mount applications, the diode's compact package measures 1.3 mm length, 0.9 mm width, and 0.7 mm height.
It operates reliably up to a maximum temperature of 150°C, suitable for various electronic and semiconductor applications. This product is manufactured in China and complies with standard industrial requirements. Explore more semiconductor devices and Schottky Diodes from STMicroelectronics in the Electronics & Electricals category at EnvMart.
