| Country of Origin | China |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.07mm |
| Length | 1.8mm |
| Model | BAT54JFILM |
| Width | 1.45mm |
| Mount Type | Surface |
| Series | BAT54 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-323 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 300mA |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1A |
| Maximum Forward Voltage Vf | 900mV |
| Peak Reverse Recovery Time trr | 5ns |

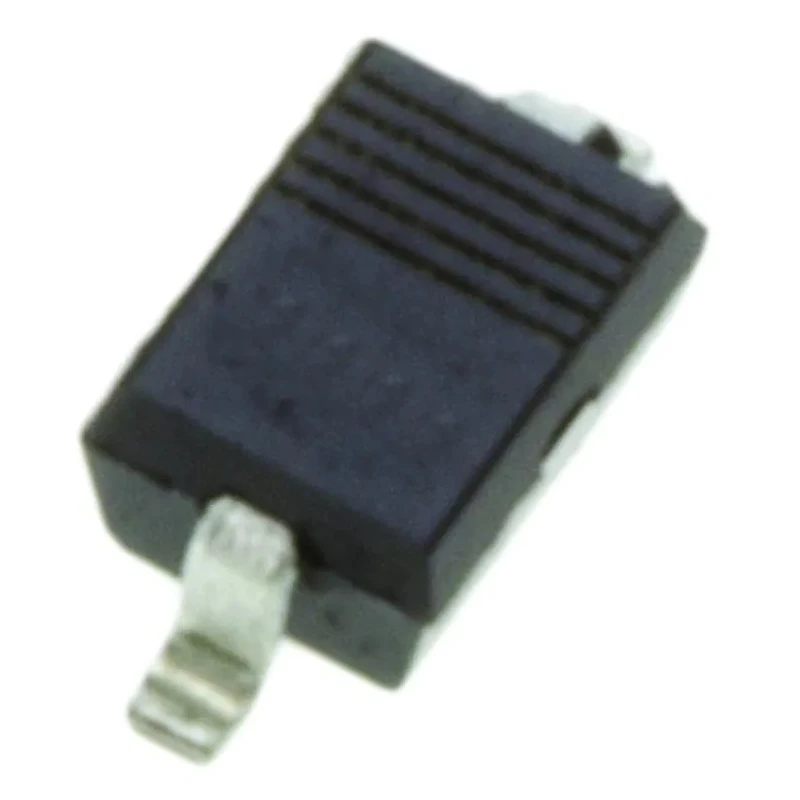

STMicroelectronics BAT54JFILM Schottky Diode 2-Pin Surface Mount in SOD-323 package is designed for efficient high-speed switching and rectification with a maximum forward current of 300 mA and a peak reverse voltage rating of 40 V. The diode features a low forward voltage drop of 900 mV and a negligible peak reverse current of 100 µA, improving power efficiency in electronic circuits.
This device operates reliably in the temperature range of -40°C to 150°C, making it suitable for various industrial and commercial electronic applications, including power supplies, automotive systems, and consumer electronics. The fast switching capabilities with a peak reverse recovery time of 5 ns ensure reduced switching losses and better performance at high frequencies.
The compact surface mount SOD-323 package, with dimensions of approximately 1.8 mm length, 1.45 mm width, and 1.07 mm height, facilitates high-density PCB mounting and automated manufacturing. Its single diode configuration and 2-pin layout support versatile circuit designs.
Ideal for power management, signal protection, and voltage clamping tasks, this diode is a reliable choice in discrete semiconductor components for embedded systems and electronic device manufacturing.
Compact SOD-323 surface mount package for space-saving PCB design. Maximum forward current 300 mA supports low power applications. Peak repetitive reverse voltage of 40 V ensures safe operation. Fast switching time of 5 ns minimizes losses in high-frequency circuits.
Wide operating temperature range from -40°C to 150°C ensures durability. Low forward voltage drop improves energy efficiency. Single diode configuration with 2-pin layout for versatile use. Peak surge current rating of 1 A guards against transient spikes.
This diode aligns with industrial, electrical, and electronic manufacturing requirements demanding reliable, efficient Schottky barrier diodes. Use within power conversion circuits, signal rectification, and automotive electronic systems for enhanced performance.
