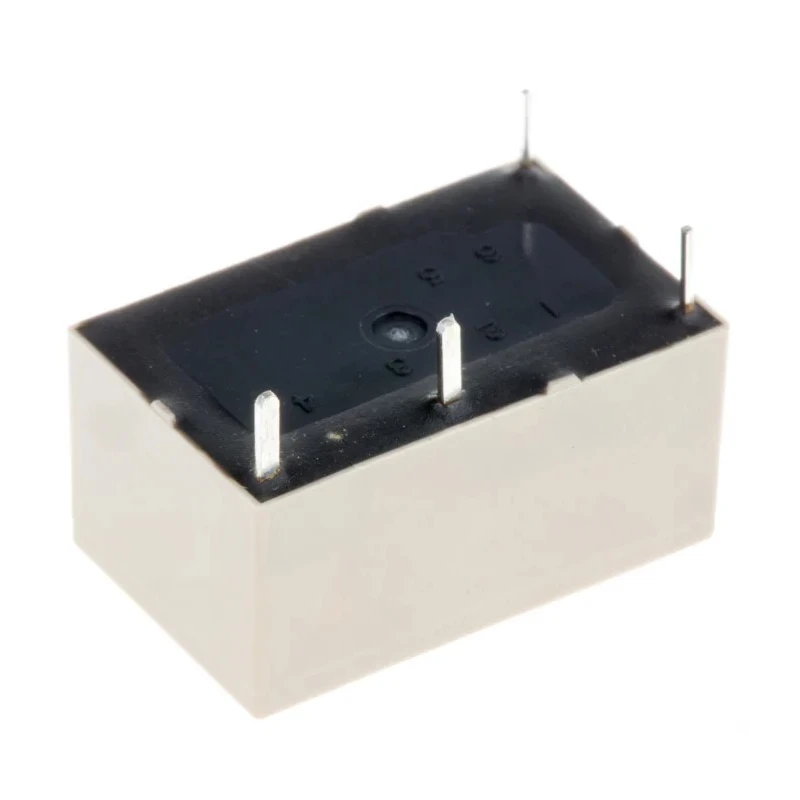

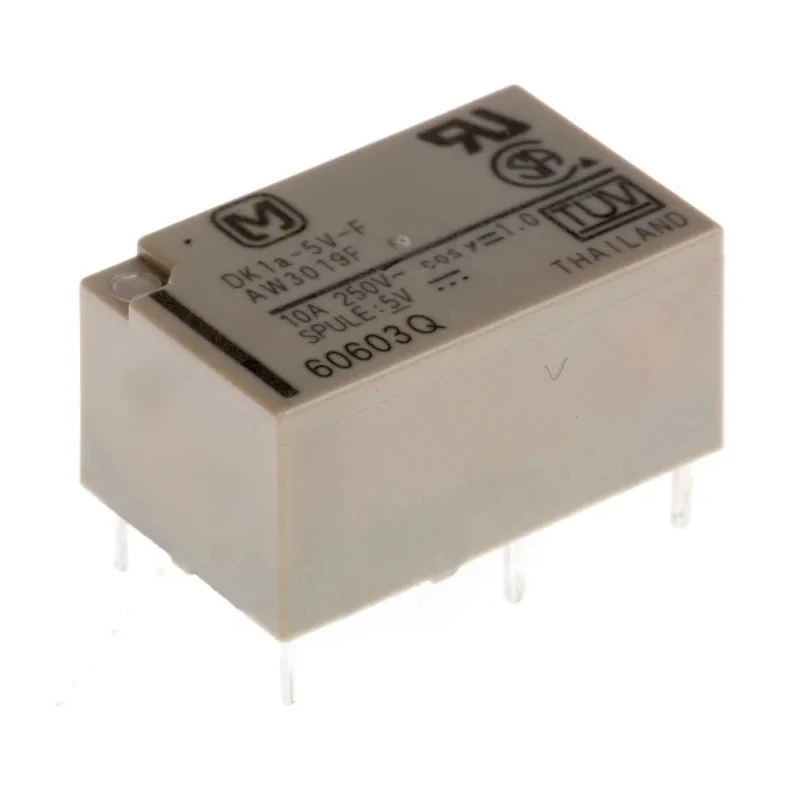

Panasonic PCB Power Relay, 5V DC Coil Voltage, 10A Switching Current, Gold Plated Contacts DK1A-5V-F
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Panasonic |
| Height | 10mm |
| Length | 20mm |
| Model | DK1A-5V-F |
| Width | 12.5mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | DK |
| Maximum Operating Temperature | 65°C |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| High Sensitivity | 200 mW nominal operating power |
| Contact Resistance | 30mΩ |
| Standards/Approvals | VDE, CSA |
| Coil Resistance | 125Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 200mW |
| Switching Power | 300W |
Key Features
- The DK series relay features a compact miniature size of 20mm length, 12.5mm width, and 10mm height.
- It provides a sealed construction that supports automatic washing and high breakdown voltage.
- Designed for power switching applications in industrial machinery, PLCs, temperature controllers, timers, and home appliances.
- Features gold plated contact material with low contact resistance of 30mΩ for improved conductivity.
- The relay operates within a temperature range of -40°C to 65°C, ensuring reliability in varied environments.
- High sensitivity coil with nominal operating power of 200mW and coil resistance of 125Ω.
- Supports switching power up to 300W with AC voltage rating of 250V and DC voltage rating of 30V.
- Complies with standards and approvals including VDE and CSA for quality assurance.
Product Description
Panasonic DK1A-5V-F PCB Power Relay is a high-performance miniature relay designed for PCB mounting with a 5V DC coil voltage and capability to switch currents up to 10A. Its compact dimensions (20mm length, 12.5mm width, and 10mm height) make it suitable for space-constrained applications in automation, industrial machinery, and consumer electronics.
This DK series relay showcases superior sensitivity with a nominal operating power of only 200mW and outstanding surge-withstanding voltage of 10,000V between coil and contacts, ensuring robustness and longevity. The sealed construction provides resistance against contaminants and enables automatic washing without compromising performance.
Ideal for power switching tasks in PLCs, temperature control systems, timers, and home appliances, it handles switching powers up to 300W with AC ratings up to 250V and DC ratings up to 30V. The gold plated contacts provide excellent conductivity and low contact resistance of 30mΩ, facilitating efficient electrical performance.
Operating temperature ranges from -40°C to 65°C, suitable for demanding industrial environments. Coil resistance is measured at 125Ω, and the relay has been tested and approved according to VDE and CSA standards, providing confidence in quality and safety.
The DK1A-5V-F relay is compact and reliable for industrial and household power control. Its sealed design and high insulation ratings protect against environmental factors and electrical surges. The low coil power consumption increases energy efficiency in control circuits.
Gold plated contacts ensure extended lifecycle and reduced oxidation risks. Confirmed compliance with relevant safety standards supports regulatory acceptance.
Originating from Thailand, this relay is a trusted component for engineering applications in electronics, electrical automation, HVAC control systems, and manufacturing equipment. Its reliable switching characteristics contribute to stable and durable machine operation.
Explore the Panasonic brand for a comprehensive range of reliable relays and electrical components on EnvMart, your expert industrial catalog resource.
