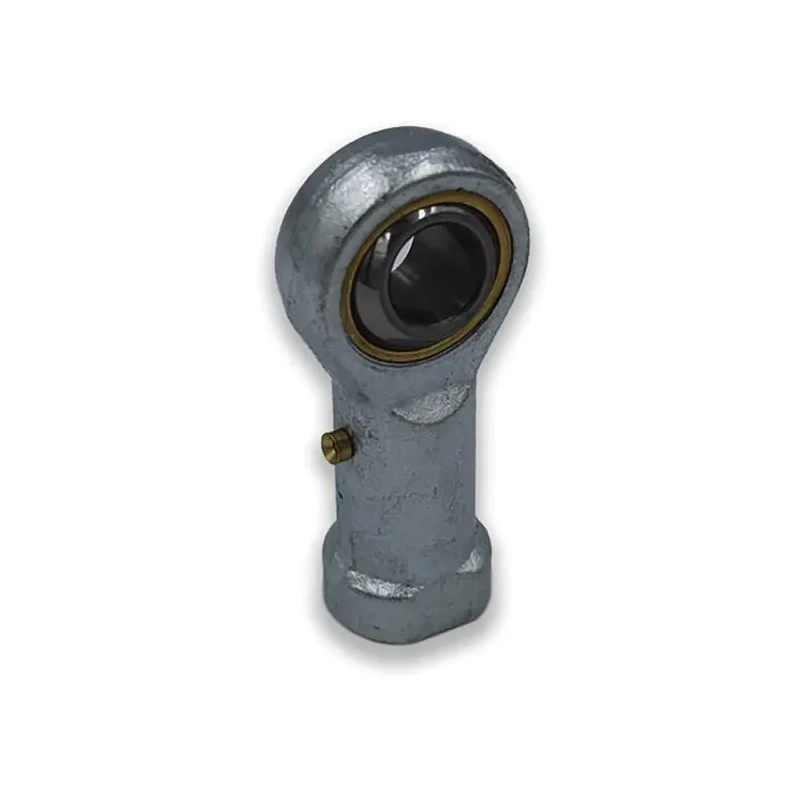

LDK Female Carbon Steel Rod End M6 Bore 6mm, Left Hand Thread PHS 6L
Specifications
| Country of Origin | China |
|---|---|
| Brand | LDK |
| Material | Carbon Steel |
| Model | PHS 6L |
| Body | Carbon steel,clear Zinc plated |
| BALL | AISI 52100 bearing Steel, heat treated, HRC58-64, Precision ground, polished |
| Overall Width | 39mm |
| Outside diameter | 18mm |
| Connection Size | M6 Female |
| Bore Diameter | 6mm |
| Thread Standard | Metric |
| Static Load Rating | 8.1kN |
| Thread Direction | Left Hand |
| Dynamic Load Rating | 3.2kN |
| Connection Gender | Female |
| Race | Brass |
| Sliding contact surfaces | Steel/Brass |
Key Features
- Constructed with carbon steel body and clear zinc plating for corrosion resistance.
- Ball made from heat treated AISI 52100 bearing steel with precision ground and polished finish.
- Left-hand threaded M6 female connection with 6mm bore diameter.
- Outside diameter measures 18mm and overall width is 39mm for compact installation.
- Sliding contact surfaces composed of steel and brass ensure smooth operation.
Product Description
LDK PHS 6L Female Carbon Steel Rod End M6 Bore 6mm is a precision engineered rotary bearing component ideal for mechanical, fluid power, and industrial automation applications. The product features a left-hand thread and metric sizing, making it suitable for myriad machine assembly tasks requiring secure yet flexible joint connections.
The rod end's body construction utilizes carbon steel with a clear zinc plating treatment providing enhanced protection against environmental corrosion and wear. This robust base ensures long service life even under demanding operational conditions.
The precision ball is manufactured from AISI 52100 bearing steel, heat treated to a hardness range of HRC58-64, and precision ground and polished to ensure smooth, consistent rotational movement with minimal friction. Brass race and steel/brass sliding surfaces contribute to the rod end’s durability and performance.
This rod end features a female connection size of M6, with a bore diameter of 6mm, outside diameter of 18mm, and an overall width of 39mm. The left-hand thread standard follows metric specifications, facilitating compatibility with common industrial fittings.
Designed for various industrial sectors including automotive, manufacturing equipment, hydraulics, and robotics, the LDK PHS 6L rod end supports reliable load handling with dynamic and static load ratings of 3.2kN and 8.1kN, respectively.
Carbon steel body with clear zinc plating for corrosion resistance. Precision AISI 52100 heat treated ball bearing for smooth rotation. Left-hand threaded M6 female connection with 6mm bore. Steel and brass sliding contact surfaces improve operational durability.
Compact dimensions suitable for diverse mechanical assemblies. Set your equipment up for dependable performance with this high-quality rod end, categorized under Rotary Bearings & Housing Units at EnvMart.
Explore more products in our Rod Ends category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dynamic load rating is 3.2kN, while the static load rating is 8.1kN.
It features a carbon steel body with clear zinc plating for corrosion resistance and a ball made from heat-treated AISI 52100 bearing steel.
The overall width is 39mm, the outside diameter is 18mm, and it has a bore diameter of 6mm.
It has a left-hand threaded M6 female connection.
The sliding contact surfaces are composed of steel and brass, which enhance operational durability.
The country of origin for this rod end is China.
The clear zinc plating provides enhanced protection against environmental corrosion and wear.
It is designed for various industrial sectors including automotive, manufacturing equipment, hydraulics, and robotics.
The thread standard follows metric specifications.
The ball is heat treated to a hardness range of HRC58-64 and is precision ground and polished for smooth rotation.
It is a precision-engineered rotary bearing component designed for secure yet flexible joint connections in mechanical assemblies.
The connection gender is female, specifically an M6 female connection.
