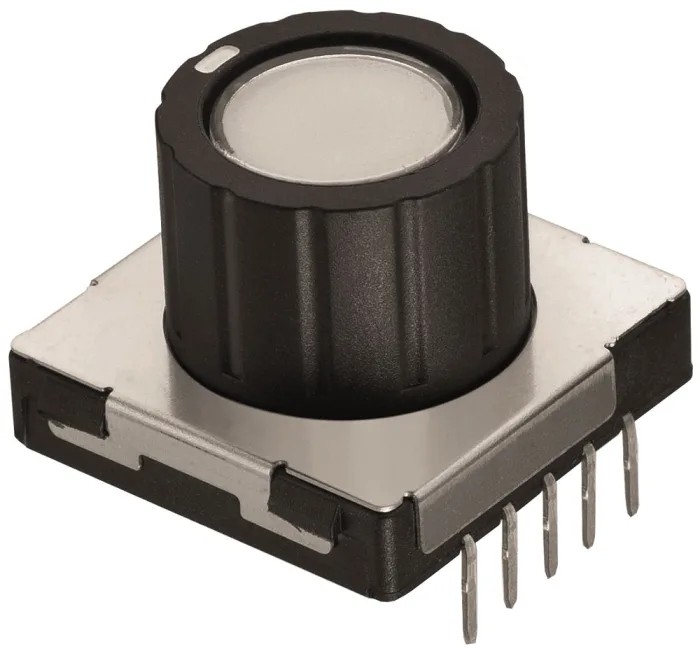

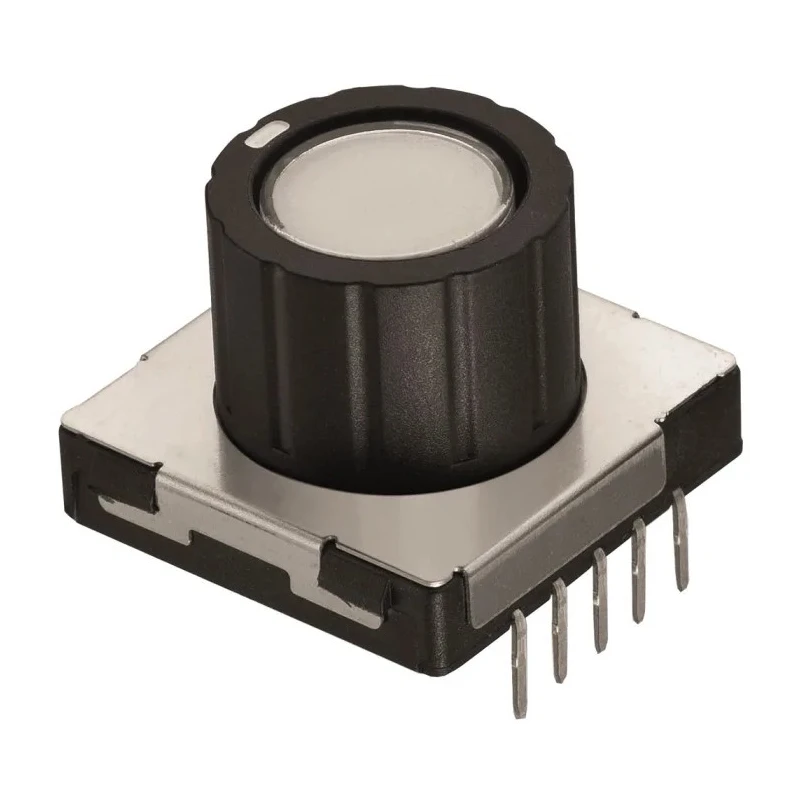

Wurth Elektronik WS-RPTL 8 Position 2 CO Rotary Switch 100mA Solder 481RV12172100
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 14.2mm |
| Brand | Wurth Elektronik |
| Height | 14.45mm |
| Model | 481RV12172100 |
| Depth | 20.4mm |
| Width | 20.4mm |
| Mount Type | Through Hole |
| Housing Material | Polyamide, Stainless Steel (Cover) |
| Series | WS-RPTL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | 2 CO |
| Number of Positions | 8 |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Maximum dc Voltage | 30V dc |
| Number of Poles | 18 |
| Standards/Approvals | RoHS, REACH |
| Actuator Colour | Black |
| Switch Contact Current | 100mA |
| Mechanical Life | 50000Cycles |
| Angle of Throw | 45 ° |
| Footprint/pin spacing | 2.54mm between pins and 5.08mm between rows |
| LED bicolour combination | red / bright green |
Key Features
- Compact rotary switch with illuminated pushbutton actuator.
- Housing made of polyamide with stainless steel cover for durability.
- Mount type is through-hole for PCB installation.
- Operating temperature range from -40°C to 85°C.
- Mechanical life rated at 50,000 cycles ensuring long-term reliability.
- Bicolour LED illumination in red and bright green for clear status indication.
- Pin footprint spacing is 2.54mm between pins and 5.08mm between rows for standard mounting.
- Suitable for low voltage DC circuits up to 30V with 100mA current rating.
Product Description
Wurth Elektronik 481RV12172100 is an 8 position rotary switch with 2 changeover (CO) contacts, designed for precision switching in low voltage DC applications. The rotary pushbutton switch features illuminated functionality with a bicolour LED combination of red and bright green, enhancing user interface clarity. It houses a durable polyamide body with a stainless steel cover, ensuring mechanical robustness.
This switch is mounted through-hole on PCBs and has a compact form factor with dimensions 20.4mm (depth and width) and 14.45mm height, facilitating integration into various industrial and automation systems. It operates reliably within a temperature range of -40°C to 85°C, making it suitable for demanding environmental conditions.
Equipped with a DPDT momentary pushbutton center switch, the WS-RPTL series offers flexibility in control circuit design. The mechanical life of 50,000 cycles ensures long-lasting durability in repetitive switching applications. The electrical contact rating supports up to 100mA contact current at 30V DC, appropriate for signal and control circuits.
Compact and robust rotary switch design with illuminated pushbutton actuator. Durable polyamide housing with stainless steel cover for protection. Through hole mount suitable for standard PCB installation. Wide operating temperature range from -40°C to 85°C for versatile use.
Bicolour LED indicator with red and bright green illumination. Mechanical life of 50,000 cycles for extended operational lifespan. Standard pin spacing of 2.54mm and 5.08mm for easy PCB integration.
This rotary switch is ideal for industrial automation, control panels, instrumentation, and other electronic equipment requiring reliable multi-position rotary selection. It complies with RoHS and REACH standards, ensuring environmental safety and regulatory conformance.
Explore more high-quality Rotary Switches and other electronics components in the Wurth Elektronik product lineup on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 85°C.
It has a contact current rating of 100mA.
This rotary switch features 8 positions.
The mechanical life of this switch is rated at 50,000 cycles.
It is designed for through-hole mounting on PCBs.
The pin footprint spacing is 2.54mm between pins and 5.08mm between rows.
The housing is made of polyamide with a stainless steel cover.
The minimum operating temperature is -40°C.
It can handle a maximum DC voltage of 30V.
It features a bicolour LED combination of red and bright green for status indication.
The angle of throw is 45 degrees.
Yes, it complies with RoHS and REACH standards.
