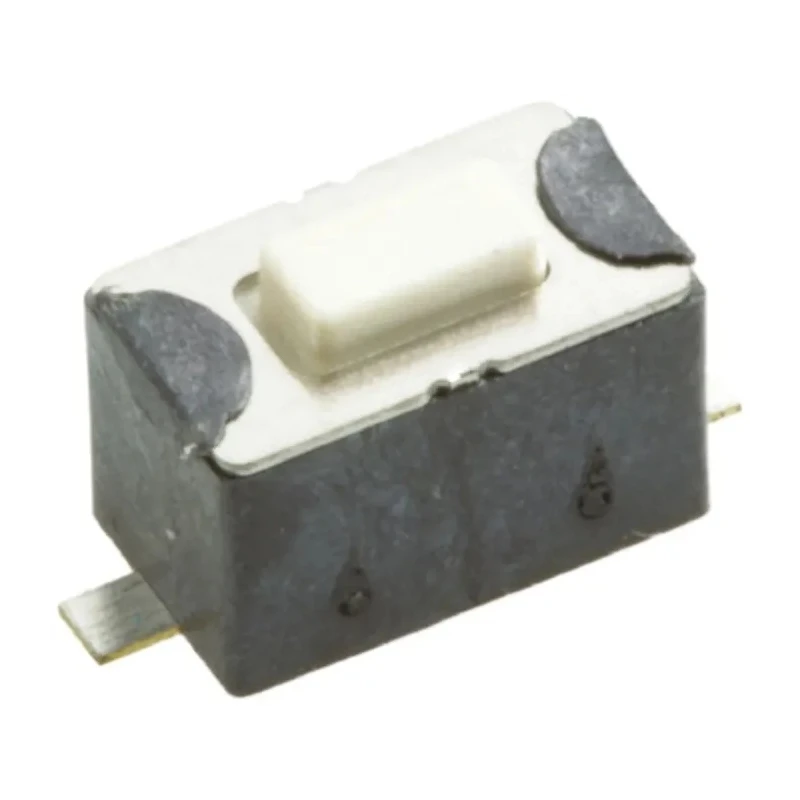

Wurth Elektronik White Tactile Switch, SPST Momentary, 1.5 mm Actuator, 50mA 12 V dc, Surface Mount 434111043826

Wurth Elektronik 434111043826 White Tactile Switch is a high-quality SPST momentary switch designed for surface mounting applications. It features a white tactile actuator with a length of 1.5 mm, optimized for precise tactile feedback and responsive operation. The switch supports a contact current of 50 mA and operates at 12 V dc, making it suitable for low power electronic applications.

This tactile switch measures 6 mm in length, 3.5 mm in width, and 4.3 mm in height, fitting compact PCB designs. Its actuator orientation is straight with an operating force of 2.55N, providing reliable actuation without excessive effort. The switch is designed with solder terminals to ensure robust mounting on circuit boards.

The device complies with RoHS standards, reflecting its environmental and safety compliance. The mechanical life of the switch is rated at 30,000 cycles, which supports long-term durability in electronic devices. Manufactured in China, this switch utilizes silver-clad stainless steel contacts and is covered with a stainless steel cover for enhanced corrosion resistance and reliability. The product also meets JEDEC J-STD 020 Hot Air reflow soldering standards to ensure compatibility with modern PCB assembly techniques.

This tactile switch is ideal for use in electronics, electrical automation, instrumentation, and control systems where reliable momentary switching is essential. Its compact size and robust engineering make it suitable for industrial and commercial applications including keyboards, control panels, and signal inputs.

Features such as a wide operating temperature range from -40°C to 85°C permits deployment in harsh environments without degradation in performance. Its surface mount design supports modern manufacturing and automated PCB assembly processes.

The switch features a white tactile actuator designed for responsive operation. It supports a contact current of 50mA at 12 V dc. The operating temperature range is -40°C to +85°C, suitable for diverse environments. The mechanical life expectancy is rated at 30,000 cycles, ensuring durability.

It is designed for surface mounting with a solder terminal type. The switch operation is momentary with SPST contact configuration. Its dimensions include 6 mm length, 3.5 mm width, and 4.3 mm height. The actuator orientation is straight with an operating force of 2.55N.

The product complies with RoHS standards and has silver-clad stainless steel contacts with a stainless steel cover. Manufactured in China to industry standards and JEDEC J-STD 020 Hot Air reflow soldering compliance.

EnvMart offers a wide range of Tactile Switches including this Wurth Elektronik model, suitable for reliable and precise electronic switching in multiple industrial, commercial, and consumer applications. Browse our Electronics & Electricals category for similar quality switches and components.
