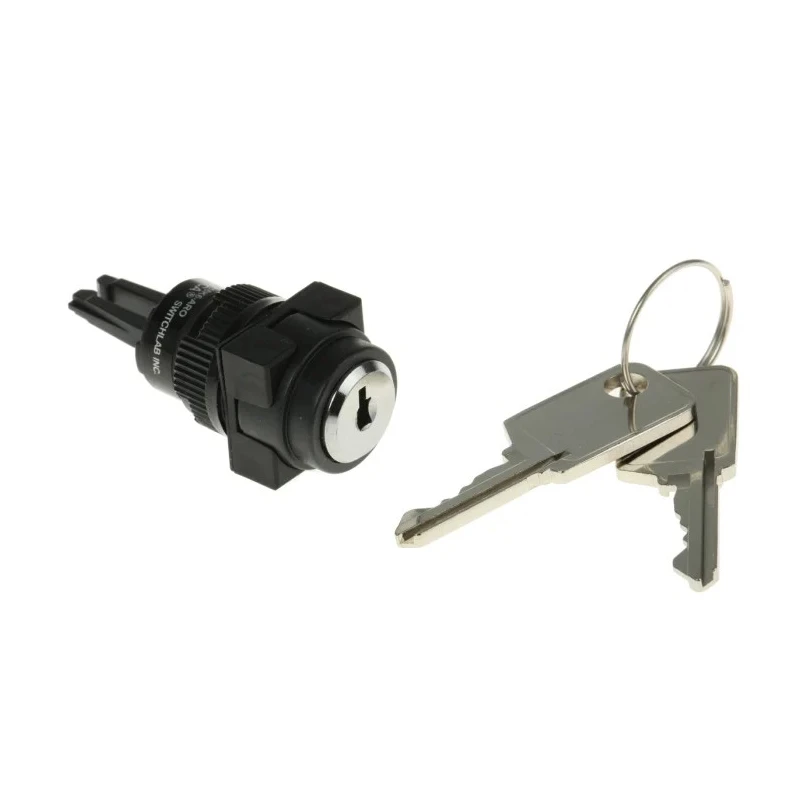

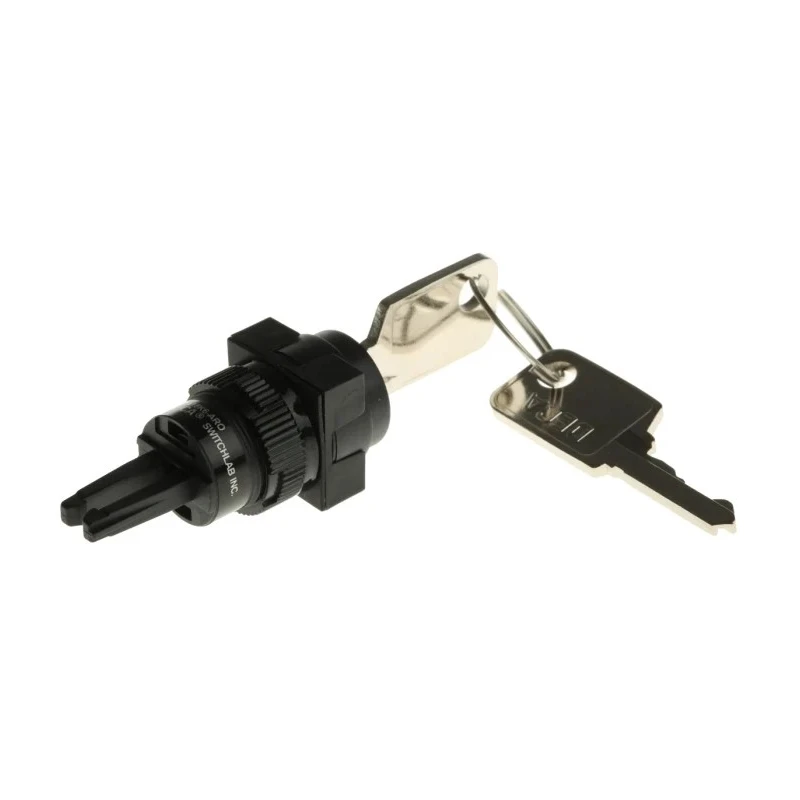

RS PRO IP65 Rated 5A 2-Way Latching Key Switch with Square Bezel, Silver Contacts, 250V AC 30V DC IP65 IP Rating IP65

Name: RS PRO IP65 Rated 5A 2-Way Latching Key Switch with Square Bezel, Silver Contacts, 250V AC 30V DC IP65 IP Rating IP65
Brand: RS PRO
SKU: 362726
Price: 1891.57 INR
Availability: InStock



Category Key Switch Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Model	IP65
IP Rating	IP65
Contact Material	Silver
Series	RS PRO
Maximum Operating Temperature	55°C
Number of Positions	2
Minimum Operating Temperature	-25°C
Terminal type	Tab
Standards/Approvals	RoHS
Switch Operation	Latching
Contact DC Voltage	30V dc
Switch Contact Current	5A
Mechanical Life	200000Cycles
Contact AC Voltage	250V ac
Bezel Shape	Square
Key Index Angle	90°
EAO IP65 Keylock Switch, 1 NO/1 NC, 5A 2-Way Flat-KeyBrand	EAO

Key Features

The switch features a square bezel shape for standard panel mounting.
Operates at a contact current of 5 A at 250 V AC and 30 V DC.
Equipped with silver contacts for excellent rust and corrosion resistance.
The key index angle is 90 degrees, supporting two positions.
Suitable for indoor and outdoor use with an IP65 rating for water jet protection.
The switch operates over a temperature range of -25°C to 55°C.
Mechanical life exceeds 200,000 operations for durable performance.
It comes supplied with two keys for dual user access or a spare key.

Product Description

RS PRO IP65 5A 2-Way Latching Key Switch is designed with silver contacts and a sturdy square bezel shape to fit standard 16 mm diameter panel cut-outs. This key switch excels in controlling access to electrical systems such as powered equipment and shop-front roller shutters, making it ideal for commercial and industrial applications.

The switch operates at 5 A contact current for AC up to 250 V and DC up to 30 V with latching switch operation providing two positions and a key index angle of 90°. Its mechanical life spans 200,000 cycles, showcasing long-lasting reliability.

Featuring an IP65 rating, it offers protection against water jets from any angle, permitting safe outdoor and indoor installation. The silver contact material ensures resistance to corrosion and rust in harsh environments. The operating temperature range from -25°C to 55°C extends its usability across various climates.

The key switch is supplied with two keys, enabling either two-user access control or a spare key for convenience. The tab-type terminals provide secure electrical connections for ease of installation.

Typical applications include industrial automation systems, security access control, HVAC equipment, manufacturing machinery, and water treatment control panels where reliable switching and restricted access is critical.

A reliable choice from RS PRO series, this Key Switch complies with RoHS standards and is manufactured in Taiwan, Province of China, backed by recognized safety certifications such as UL, cUL, VDE, and ENEC.

The switch features a square bezel shape for standard panel mounting. Operates at a contact current of 5 A at 250 V AC and 30 V DC. Equipped with silver contacts for excellent rust and corrosion resistance. The key index angle is 90 degrees, supporting two positions.

Suitable for indoor and outdoor use with an IP65 rating for water jet protection. The switch operates over a temperature range of -25°C to 55°C. Mechanical life exceeds 200,000 operations for durable performance. It comes supplied with two keys for dual user access or a spare key.
