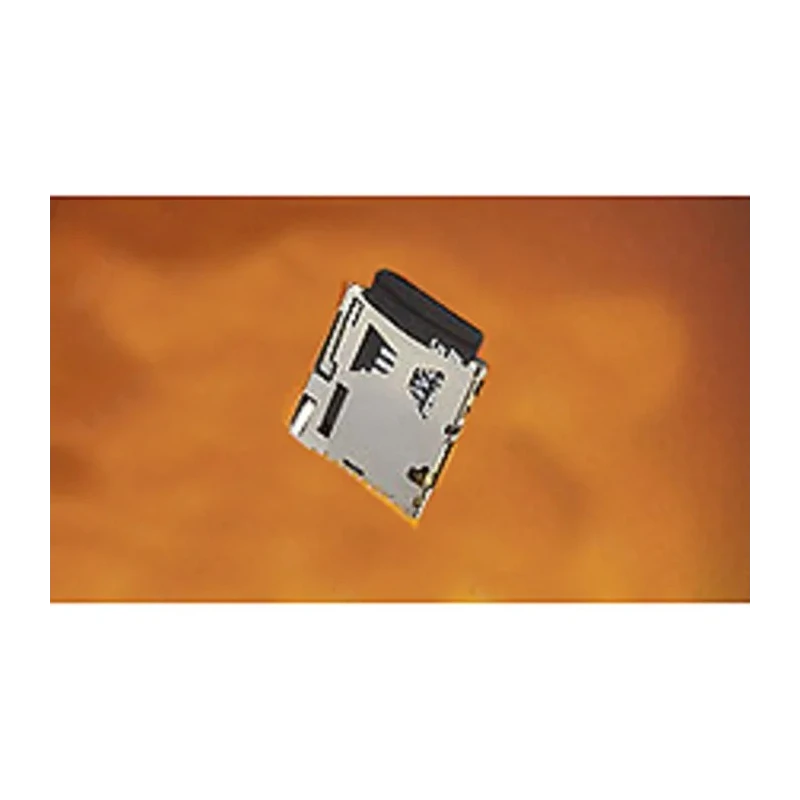

Molex 8 Way Push-Push MicroSD Memory Card Connector, Surface Mount, Solder Termination, 1.1mm Pitch, Liquid 503182-1852
Specifications
| Country of Origin | Vietnam |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Gender | Male |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | 503182 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Pitch | 1.1mm |
| Contact Plating | Tin, Gold |
| Number of Contacts | 8 |
| Card Type | MicroSD |
| Insertion/Removal Method | Push-Push |
Key Features
- This connector supports MicroSD cards with 8 contact pins.
- Features a push-push insertion and removal method for secure card handling.
- Compact design with a 1.1mm pitch and 1.45mm height suitable for modern PCB layouts.
- Constructed using liquid crystal polymer housing for durability and stability.
- Contacts are made of copper alloy with tin and gold plating for excellent conductivity.
- Supports operating temperatures from -25°C to 85°C ensuring performance in harsh environments.
- Orientation is straight with surface mount type for ease of automated assembly.
Product Description
Molex 503182-1852 is a high-quality 8 Way Push-Push MicroSD Memory Card Connector designed for reliable insertion and removal of MicroSD cards in electronic devices. This connector uses a surface mount design with solder termination and features a 1.1mm pitch and a compact 1.45mm height, making it ideal for applications demanding space-efficient PCB layouts.
The housing material is liquid crystal polymer, providing excellent mechanical strength and thermal stability. Contacts are crafted from copper alloy and plated with tin and gold to ensure long-lasting electrical conductivity and resistance to corrosion. The push-push mechanism allows for secure card insertion and effortless removal while preventing accidental ejection.
This MicroSD connector operates reliably within a wide temperature range of -25°C to +85°C, suitable for various industrial and consumer electronic applications including computers, cameras, and other portable devices.
The straight orientation and surface mount mount type facilitate automated high-volume manufacturing and PCB assembly processes. It is manufactured in Vietnam and meets no specific standards/approvals but features premium quality construction consistent with Molex products.
This connector supports MicroSD cards with 8 contact pins. Features a push-push insertion and removal method for secure card handling. Compact design with a 1.1mm pitch and 1.45mm height suitable for modern PCB layouts. Constructed using liquid crystal polymer housing for durability and stability.
Contacts are made of copper alloy with tin and gold plating for excellent conductivity. Supports operating temperatures from -25°C to 85°C ensuring performance in harsh environments. Orientation is straight with surface mount type for ease of automated assembly.
This product is ideal for use in industrial electronics manufacturing, consumer electronics devices, telecommunications, and embedded system applications where secure and compact memory card connections are essential.
Explore more electronic components and connectors at EnvMart for your design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector is 1.1mm, making it suitable for compact PCB layouts.
It supports operating temperatures from -25°C to +85°C, ensuring reliable performance in various environments.
The housing is made of liquid crystal polymer, while the contacts are crafted from copper alloy with tin and gold plating for conductivity.
This model features a push-push mechanism, allowing for secure card insertion and effortless removal while preventing accidental ejection.
It uses a surface mount type, facilitating automated assembly processes in manufacturing.
This connector has 8 contacts, designed specifically for MicroSD cards.
The orientation of this connector is straight, which is standard for many PCB applications.
The termination type is solder, which is common for surface mount applications.
It is manufactured in Vietnam, consistent with the production of Molex products.
It is ideal for industrial electronics manufacturing, consumer electronics devices, telecommunications, and embedded systems.
The height of this model is 1.45mm, making it compact for modern PCB layouts.
This connector supports MicroSD cards, providing secure connections for various electronic devices.
