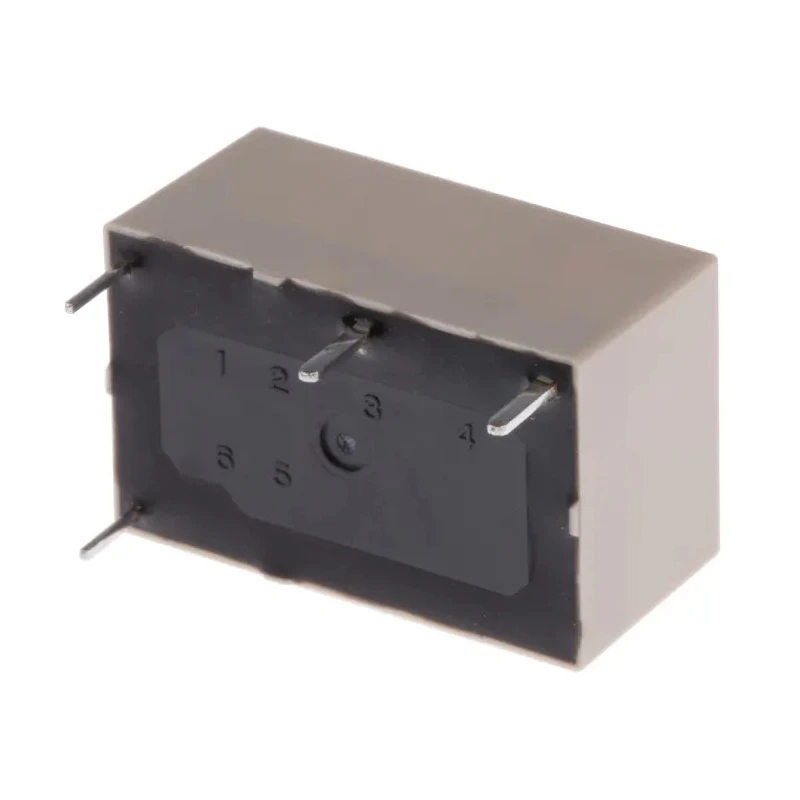

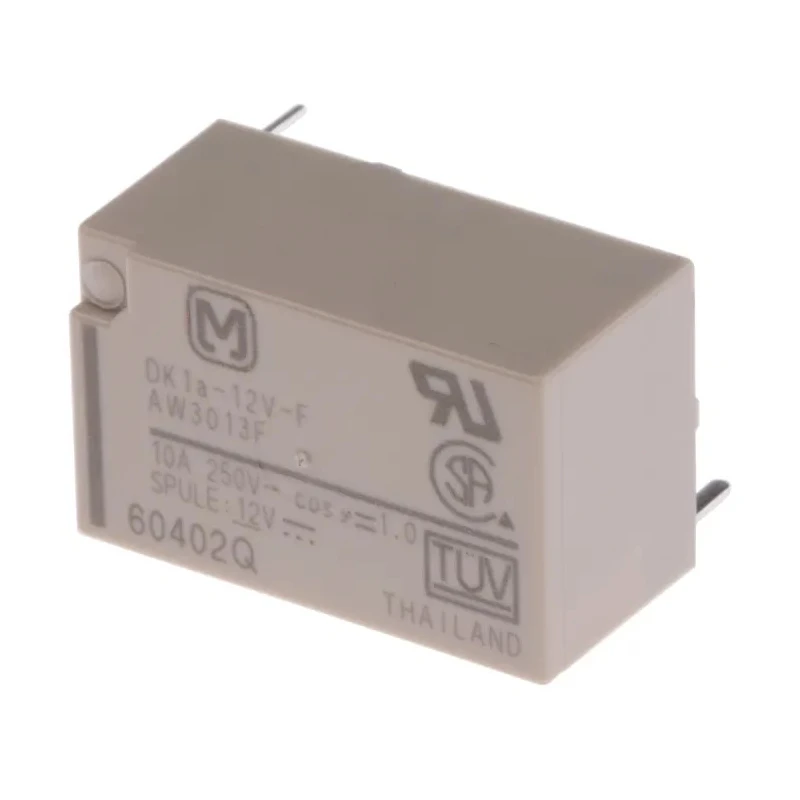

Panasonic PCB Power Relay 12V DC Coil, 10A Switching Current, SPST Contact Configuration DK1A-12V-F
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Panasonic |
| Height | 10mm |
| Length | 20mm |
| Model | DK1A-12V-F |
| Width | 12.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | DK1A |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| High Sensitivity | 200 mW nominal operating power |
| Contact Resistance | 30mΩ |
| Standards/Approvals | VDE, UL, CSA |
| Coil Resistance | 720Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 200mW |
| Switching Power | 300W |
Key Features
- High sensitivity with a nominal operating power of 200 mW.
- Compact design with dimensions 20mm length, 12.5mm width, and 10mm height.
- Sealed construction suitable for automatic washing and enhanced durability.
- Supports switching AC voltage up to 125V AC and DC voltage up to 125V DC.
- Contact material composed of silver alloy ensuring low resistance of 30mΩ.
- Wide operating temperature range from -40°C to 65°C.
- Complies with standards and approvals including VDE, UL, and CSA.
- PCB mount type with PCB pin terminals for easy integration.
Product Description
Panasonic DK1A-12V-F is a PCB Power Relay designed with a 12V DC coil and a high switching current capacity of 10A, configured as Single Pole Single Throw (SPST). It is engineered for applications requiring compact size, high capacity, and high sensitivity, making it suitable for industrial machinery, PLCs, temperature controllers, timers, and home appliances.
This miniature power relay has a sealed construction that allows for automatic washing, enhanced reliability, and endurance. It features a coil power consumption of just 200 mW, resulting in efficient operation. The relay exhibits a high surge withstanding voltage of 10,000V between contact and coil, ensuring robust performance under demanding electrical conditions.

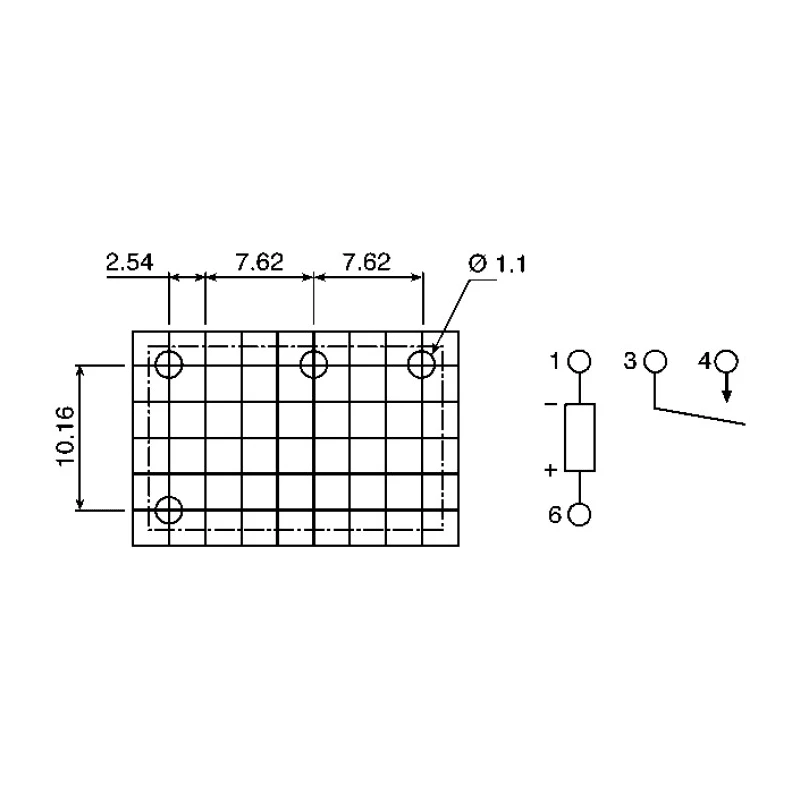

With precise dimensions of 20mm length, 12.5mm width, and 10mm height, the relay fits compact spaces and mounts easily on PCB via PCB pin terminals. The contact material is a silver alloy, delivering a low contact resistance of 30mΩ, thus minimizing electrical losses. The relay supports switching voltages of up to 125V AC and 125V DC, enabling flexible use across various electronic circuits.
The device operates reliably between temperatures of -40°C to 65°C and complies with internationally recognized standards including VDE, UL, and CSA certifications. It belongs to Panasonic's DK1A series, known for quality and performance in power switching applications.
High sensitivity with nominal operating power of 200 mW. Compact, sealed construction suitable for automatic washing. Supports 10A switching current and 125V AC/DC voltages. Silver alloy contacts ensure low resistance and durability.
Wide operating temperature range from -40°C to 65°C. PCB mounting with PCB pin terminals. Compliant with VDE, UL, and CSA standards.
This power relay is ideal for use in industrial automation, electrical control systems, home appliances, timers, and PLC applications. As a trusted Panasonic product, it combines reliability with efficient performance.
Explore further in the Electronics & Electricals category for other high quality Power Relays and related components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 10A, making it suitable for various applications requiring high current switching.
The relay has precise dimensions of 20mm in length, 12.5mm in width, and 10mm in height, allowing for easy integration into compact spaces.
It supports switching voltages of up to 125V AC and 125V DC, providing flexibility for various electronic circuits.
The relay operates with a nominal power consumption of 200 mW, which contributes to its high sensitivity and efficient operation.
It features a Single Pole Single Throw (SPST) contact configuration, suitable for simple on/off applications.
The contacts are made of silver alloy, which ensures a low contact resistance of 30mΩ, minimizing electrical losses during operation.
This relay operates effectively within a temperature range of -40°C to 65°C, making it versatile for various environments.
It complies with internationally recognized standards including VDE, UL, and CSA, ensuring quality and safety for various applications.
This model is designed for PCB mounting and features PCB pin terminals for easy integration into electronic circuits.
It has a high surge withstanding voltage of 10,000V between contact and coil, ensuring robust performance under demanding conditions.
The relay operates with a coil voltage of 12V DC, which is standard for many control applications.
The coil resistance for this model is 720Ω, which is essential for determining the current flow through the coil during operation.
