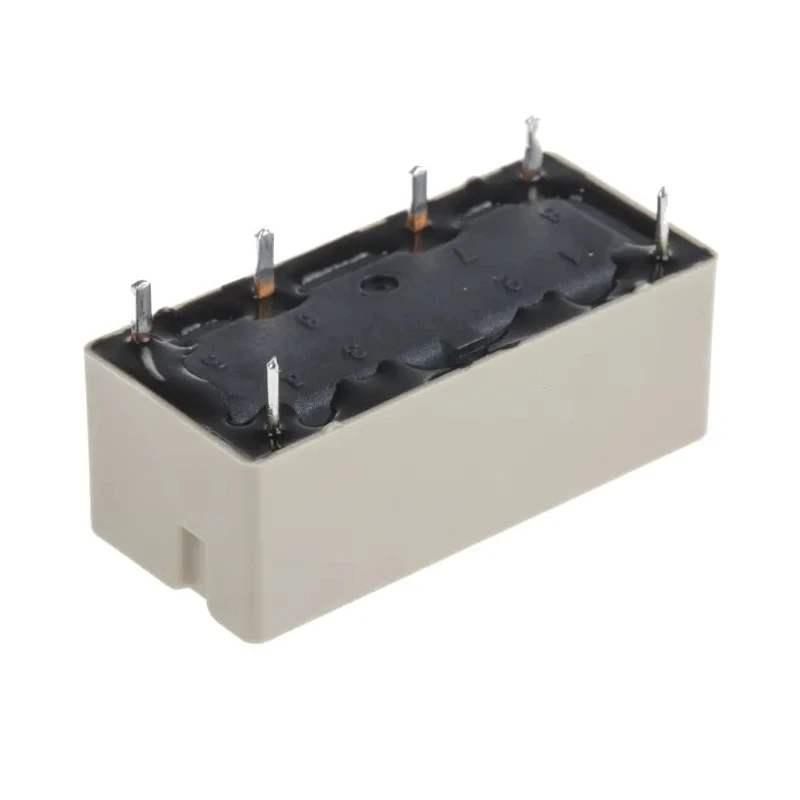

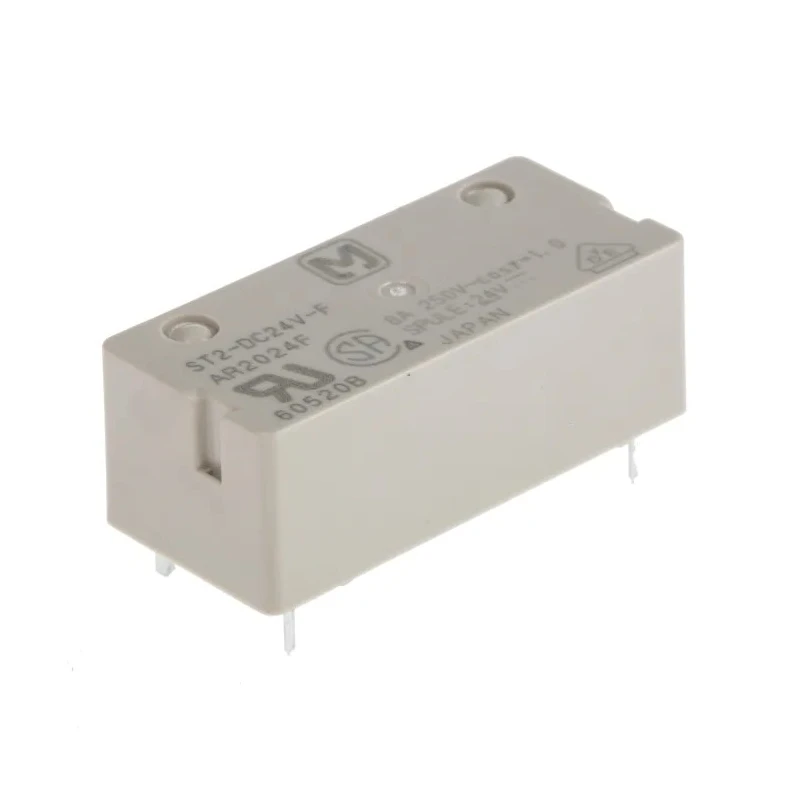

Panasonic PCB Power Relay 24V DC Coil 8A Switching Current DPST ST2-DC24V-F
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 11mm |
| Length | 31mm |
| Model | ST2-DC24V-F |
| Width | 14mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SP4-P |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | PCB Pin |
| Contact Resistance | 30mΩ |
| Standards/Approvals | VDE, UL, CSA |
| Coil Resistance | 2.4kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 380V |
| Coil Power | 240mW |
| Switching Power | 150W |
Key Features
- The DPST contact configuration allows double pole single throw operation.
- Designed for PCB mounting with PCB pin terminals for easy integration.
- Supports switching of up to 150W power with AC voltage of 380V and DC voltage of 250V.
- Operates reliably between -40°C to 60°C operating temperature range.
- Features a sealed design enabling automatic cleaning and high stability.
- Small form factor with dimensions 11mm height, 14mm width, and 31mm length.
- Silver alloy contacts ensure low contact resistance of 30mΩ for efficient performance.
- Coil resistance is 2.4kΩ with coil power consumption of 240mW suitable for IC-driving.
Product Description
Panasonic ST2-DC24V-F PCB Power Relay is a high-performance relay featuring a 24V DC coil and 8A switching current. It is designed for PCB mounting applications, providing a compact and reliable switching solution for electronic and industrial equipment.
This relay supports a DPST contact configuration allowing control of two circuits with a single device. The relay's sealed construction enables automatic washing and extends operational durability under various industrial conditions.
With a switching power capacity of 150W, the relay can handle switching AC loads up to 380V and DC loads up to 250V, making it suitable for inductive lamp load switching and other demanding tasks.
The device operates efficiently in a wide temperature range from -40°C to 60°C, ensuring reliable performance in harsh environments. Its compact size, measuring 11mm height, 14mm width, and 31mm length, supports space-limited PCB applications.
Silver alloy contacts provide low contact resistance of 30mΩ, and the coil resistance of 2.4kΩ with coil power of 240mW makes the relay sensitive enough for direct IC-driving. The relay series SP4-P is known for its high breakdown voltage, stable operation, and industrial-grade durability.
The DPST contact configuration allows simultaneous switching of two circuits. Sealed design protects internal components and enables automatic cleaning. Compact dimensions with a height of 11mm, width 14mm, and length 31mm.
Supports coil voltage of 24V DC with coil resistance of 2.4kΩ. High switching power capacity of 150W with AC voltage rating of 380V. Certified to international standards including VDE, UL, and CSA for quality assurance. Suitable for industrial, electronic control, automation, and appliance applications.
Silver alloy contacts improve durability and reduce electrical resistance. Maximum operating temperature of 60°C and minimum operating temperature of -40°C.
This Panasonic PCB power relay is manufactured in Japan, ensuring premium quality and reliability. It is widely used in industrial automation, electronic devices, HVAC controls, and other sectors where precise, robust switching is required.
For additional industrial products like this Panasonic Power Relay and related components, explore the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 8A.
This model measures 11mm in height, 14mm in width, and 31mm in length.
It can switch AC voltage up to 380V and DC voltage up to 250V.
The relay operates at a coil voltage of 24V DC with a coil power consumption of 240mW.
It features a DPST (Double Pole Single Throw) contact configuration, allowing control of two circuits with a single device.
The contact resistance is 30mΩ, which helps ensure efficient performance.
It operates reliably between -40°C and 60°C.
The contacts are made of silver alloy, which improves durability and reduces electrical resistance.
This model is designed for PCB mounting and features PCB pin terminals for easy integration.
It is certified to international standards including VDE, UL, and CSA.
The coil resistance is 2.4kΩ, making it suitable for direct IC-driving.
The relay supports a maximum switching power capacity of 150W.
