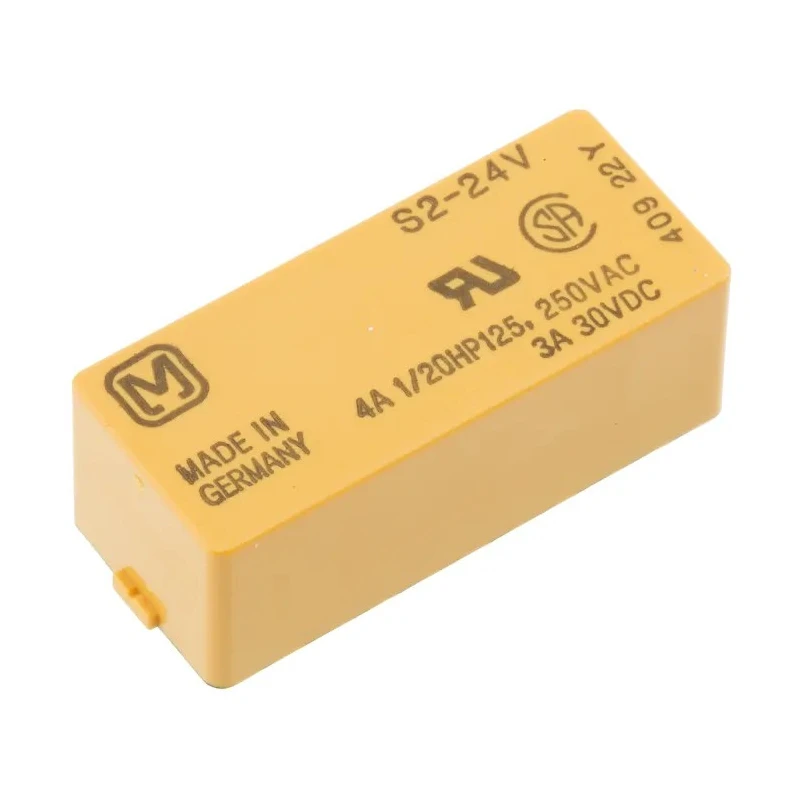

Panasonic PCB Power Relay 24V dc Coil 4A Switching Current DPDT S2EB-24V
Specifications

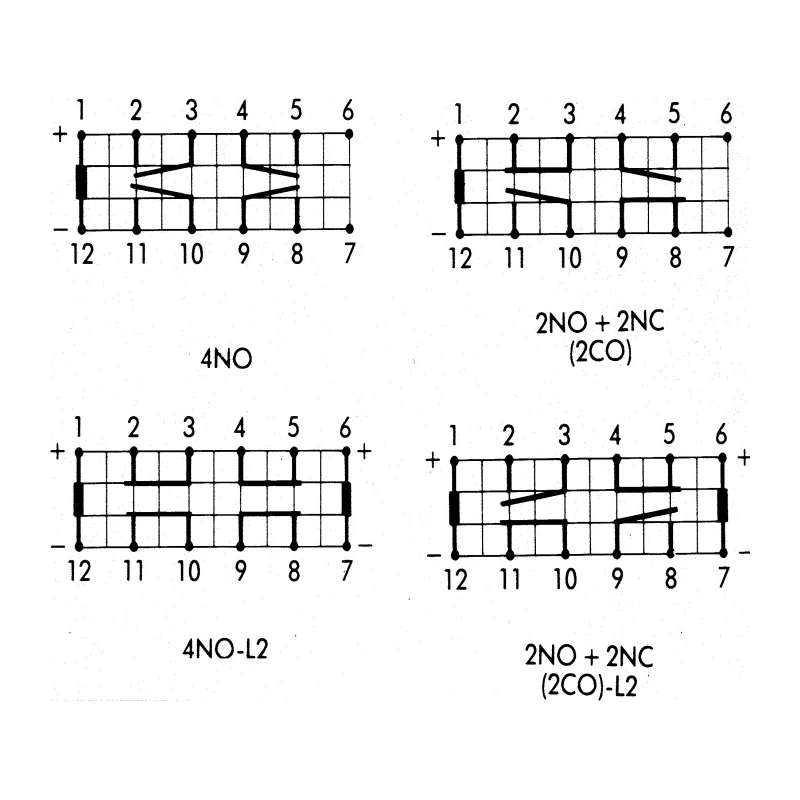

| Country of Origin | Czech Republic |
|---|---|
| Brand | Panasonic |
| Height | 10.4mm |
| Length | 28mm |
| Model | S2EB-24V |
| Width | 12mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | S |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 4A |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 2.9kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 48V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 202mW |
Key Features
- Designed for PCB mounting with a compact S series form factor.
- Features a coil resistance of 2.9kΩ and coil power consumption of 202mW.
- Gold plated contacts provide durable low resistance switching.
- Operates reliably between -40°C to 65°C ambient temperatures.
- Supports switching voltages up to 48V dc and 250V ac.
- Has a contact resistance of just 50mΩ ensuring low power loss.
- Robust design offers strong vibration and shock resistance.
- Low thermal electromotive force of approximately 0.3μV for stable operation.
Product Description
Panasonic S2EB-24V PCB Power Relay is a high-quality, low-profile power relay designed specifically for PCB mounting applications requiring reliable and efficient signal switching. It utilizes a 24V dc coil with a coil resistance of 2.9kΩ and low coil power consumption of 202mW, making it energy efficient and suitable for continuous operation.
This DPDT (Double Pole Double Throw) relay offers a switching current capacity of 4A and supports switching voltages up to 48V dc and 250V ac, allowing versatile use across various industrial and automation control systems. The contacts are gold plated to minimize contact resistance and ensure longevity with a low resistance rating of 50mΩ. The relay is robust against vibration and mechanical shocks, enhancing reliability in demanding environments.
It operates in harsh temperature ranges from -40°C to +65°C, making it suitable for use in diverse climates and industrial conditions. The relay's compact dimensions (10.4 mm height, 28 mm length, 12 mm width) facilitate easy PCB integration while maintaining high performance.
Manufactured in Czech Republic, this S series relay complies with RoHS directives for environmental safety. Its low thermal electromotive force (approx. 0.3μV) further supports precision and stability in control circuits.
Compact S series design fits standard 2.54 mm grid DIL terminal array. High sensitivity with low operating coil power improves energy efficiency. Suitable for industrial automation, manufacturing equipment, and HVAC control systems.
Wide operating temperature range supports outdoor and indoor applications. Gold plated contacts ensure reliable switching with minimal electrical noise. Strong resistance to vibration and shock increases durability in mechanical environments.
This Panasonic PCB Power Relay is an ideal solution for electrical and automation applications requiring dependable switching performance in a compact package. Browse EnvMart for more Panasonic relays and electronic components to support your projects.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 24V DC.
It has a maximum switching current of 4A.
This model measures 10.4 mm in height, 28 mm in length, and 12 mm in width.
The relay features a DPDT (Double Pole Double Throw) contact configuration.
The contact resistance is rated at 50 mΩ, ensuring low power loss during operation.
It operates reliably in ambient temperatures ranging from -40°C to +65°C.
The coil resistance is 2.9 kΩ.
The coil power consumption is 202 mW.
It is manufactured in the Czech Republic.
The contacts are made of gold-plated material to minimize contact resistance.
It supports switching voltages up to 48V DC and 250V AC.
Yes, it complies with RoHS directives for environmental safety.
