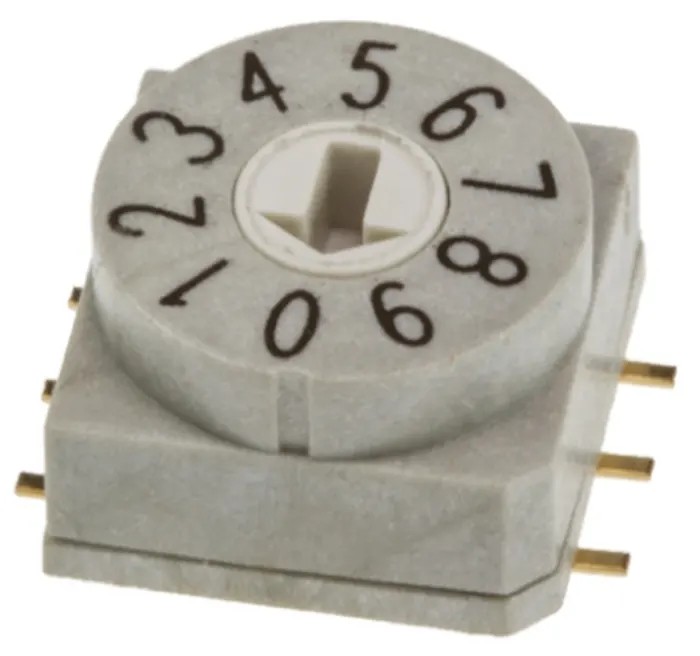

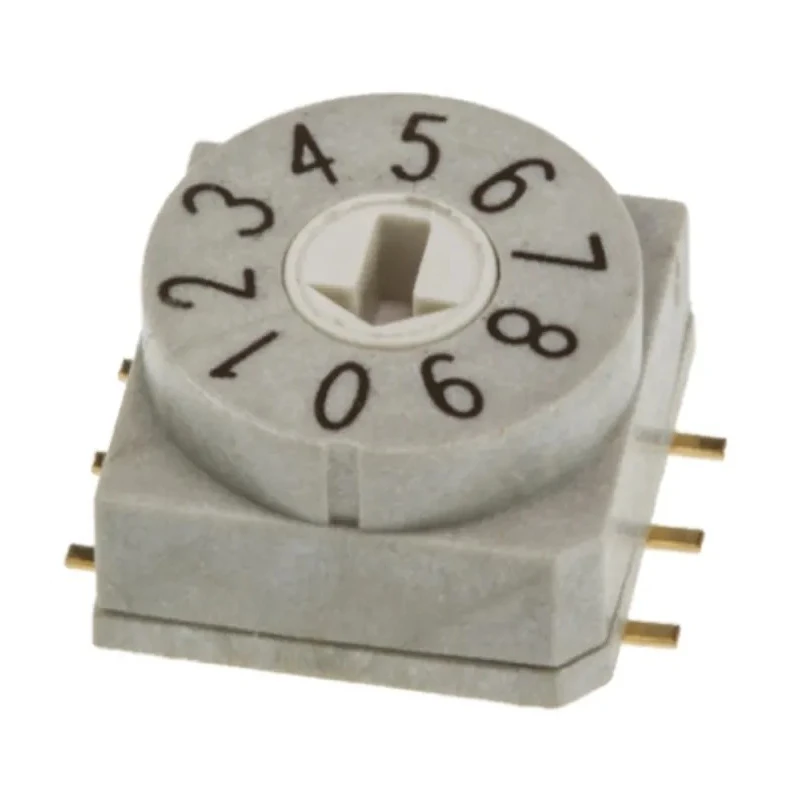

Wurth Elektronik Rotary Coded DIP Switch Surface Mount with Gull Wing Terminals 428521320810

Wurth Elektronik 428521320810 Rotary Coded DIP Switch Surface Mount is a precision electronic component designed for reliable switching applications in electronic circuits. Featuring gold plated contacts and an arrow-shaped actuator, it guarantees longevity and precise position detection in varied industrial and electronic settings.

The switch uses a surface mount design with gull wing terminals, facilitating easy and secure PCB assembly. It is engineered to operate efficiently across a wide temperature range from -40°C to +85°C, making it suitable for many industrial environments including automation, control systems, and instrumentation panels.

With a footprint pin spacing of 2.54mm by 5.08mm, this rotary DIP switch is compatible with standard PCB layouts and supports reflow soldering per JEDEC J-STD 020 hot air standards, ensuring reliable assembly and performance in mass production.

The product is manufactured in the Republic of Korea, reflecting Wurth Elektronik's commitment to quality and durability for demanding industrial applications. Equipped with an arrow-shaped actuator for precise rotary position control.

Gold plated contacts ensure excellent conductivity and corrosion resistance. Designed for surface mounting with gull wing terminal type for secure PCB connection. Operates within a temperature range from -40°C to +85°C for varied environmental conditions.

Pin spacing of 2.54mm between pins and 5.08mm between rows for standard PCB footprints. Reflow soldering compatible according to JEDEC J-STD 020 hot air guidelines. Manufactured in Korea, Republic Of, ensuring quality production standards.

This Rotary Coded DIP Switch is ideal for industrial automation, electronic instrumentation, control panel assemblies, and other embedded systems requiring precise rotary selection and reliable switching. Explore more Wurth Elektronik switches and other electronic components at EnvMart.
