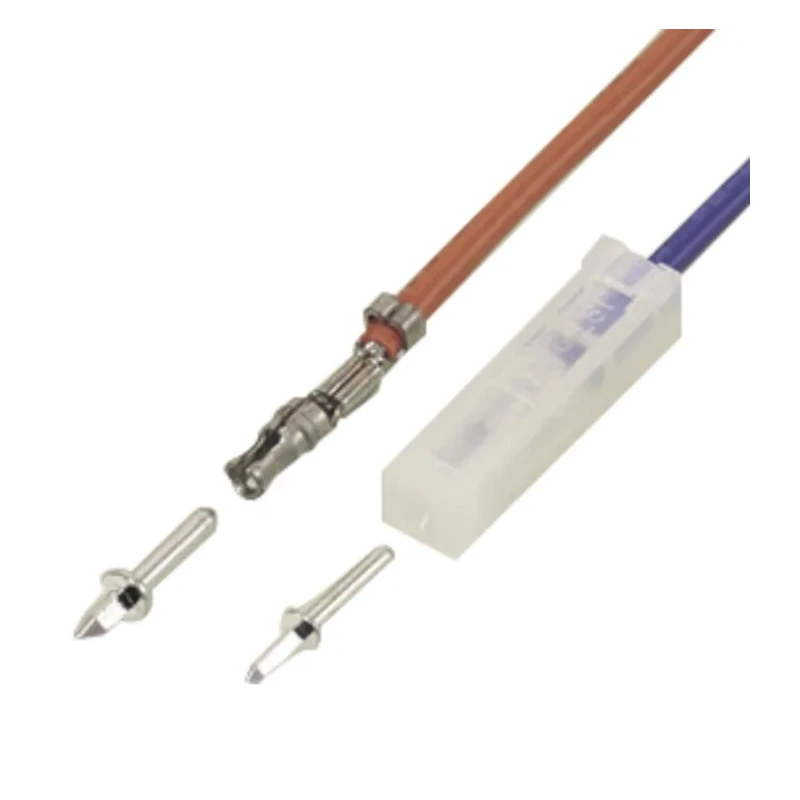

JST RT Series Straight Through Hole Pin Header, 1 Contact, 1 Row, Unshrouded, 5A, 500V RT-01T-1.0B(LF)

Free Delivery in India | Lowest Global Shipping Charges

JST RT Series Straight Through Hole Pin Header, 1 Contact, 1 Row, Unshrouded, 5A, 500V RT-01T-1.0B(LF)



Category PCB Pin Header Brand JST Condition New

Specifications

Country of Origin	India
Voltage	500V
Brand	JST
Orientation	Straight
Current	5A
Model	RT-01T-1.0B(LF)
Mount Type	Through Hole
Housing Material	Polyamide 66
Contact Material	Brass
Series	RT
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Standards/Approvals	RoHS
Contact Plating	Copper, Tin
Number of Contacts	1
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Wire-to-Board

Key Features

The housing is made of durable Polyamide 66 material.
Contact material is brass with copper and tin plating for reliable electrical conductivity.
Supports a wide operating temperature range from -25°C to 85°C.
Features a solder termination type for secure mounting.
Designed for unshrouded mounting, facilitating easy insertion and connection.
Meets RoHS compliance standards ensuring environmental safety.
Ideal for PCB applications requiring robust and reliable pin headers.
Provides a male contact gender to fit corresponding female connectors.

Product Description

The JST RT-01T-1.0B(LF) is a straight through hole pin header featuring 1 contact and 1 row configuration, specifically designed for wire-to-board connector applications. It supports rated current of 5A and voltage up to 500V, making it suitable for a variety of electronic circuit board assemblies.

Constructed with a housing made from Polyamide 66, this pin header is engineered for durability and high heat resistance, with an operational temperature range between -25°C and 85°C. The contact is manufactured from brass and plated with copper and tin, ensuring excellent conductivity and corrosion resistance.

This component is unshrouded with a male contact gender, facilitating straightforward and reliable pin insertion. Its solder termination type supports robust mounting on PCB through-hole layouts.

The design includes a funnel shaped lead-in to ease the insertion process while maintaining a high retaining force for stable connections. The connector meets RoHS environmental compliance standards, reflecting its adherence to safety and environmental regulations.

Applications include industrial electronics, power distribution boards, and manufacturing equipment that require dependable PCB connections. Its through-hole mount type is ideal for manufacturing processes that demand durability and long-term mechanical strength.

The housing is made of durable Polyamide 66 material. Contact material is brass with copper and tin plating for reliable electrical conductivity. Supports a wide operating temperature range from -25°C to 85°C. Features a solder termination type for secure mounting.

Designed for unshrouded mounting, facilitating easy insertion and connection. Meets RoHS compliance standards ensuring environmental safety. Ideal for PCB applications requiring robust and reliable pin headers. Provides a male contact gender to fit corresponding female connectors.
