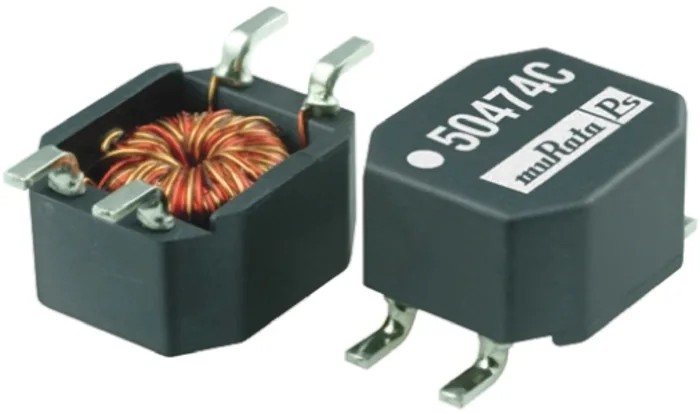

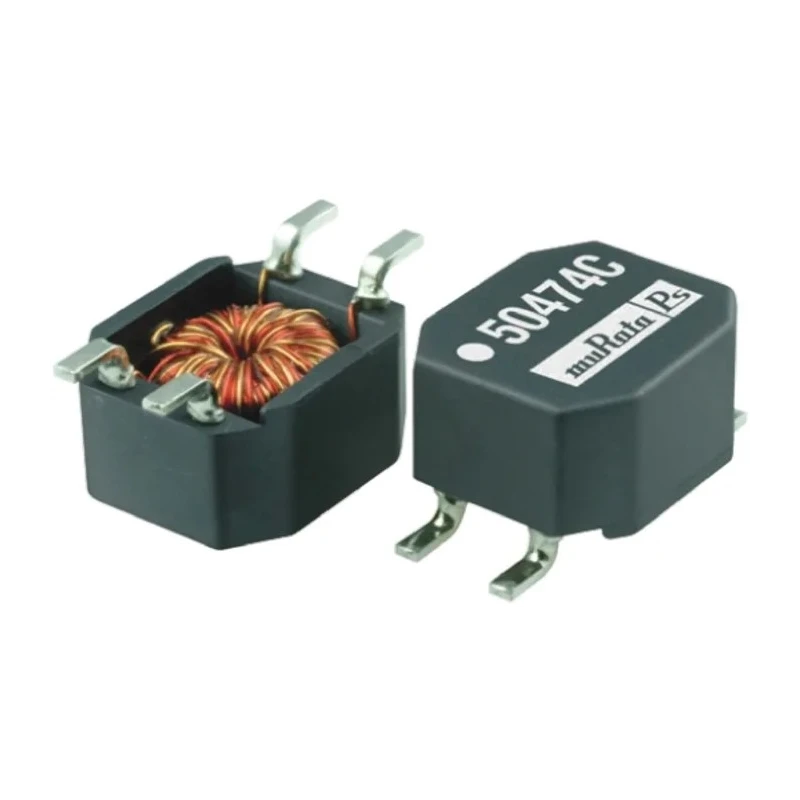

Murata Power Solutions Surface Mount Common Mode Choke 2.2mH 500mA 50225C
Specifications
| Country of Origin | China |
|---|---|
| Brand | Murata Power Solutions |
| Height | 3.6mm |
| Length | 7mm |
| Model | 50225C |
| Depth | 5.9mm |
| Series | 5000 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Inductance | 2.2mH |
| Standards/Approvals | UL94 V-0, RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 500mA |
| Pin Count | 4 |
| Maximum DC Resistance | 400mΩ |
| Inductance Tolerance | -30 to 50 % |
| Termination Style | Pure Tin Dip |
| Inductor Construction | Wirewound |
Key Features
- Compact surface mount package ideal for PCB installation.
- Inductance of 2.2mH with tolerance from -30 to 50 percent.
- Maximum DC current rating of 500mA.
- Wirewound inductor construction ensures reliable performance.
- Operating temperature range from -40°C to 85°C for harsh environments.
- UL94 V-0 rated packaging material for flame retardancy.
- Pure tin dip termination style for excellent solderability.
- Compliant with RoHS standards, suitable for eco-friendly applications.
Product Description
Murata Power Solutions 50225C Surface Mount Common Mode Choke offers a precise inductance of 2.2mH with a tolerance of -30 to 50 percent and is capable of handling maximum DC currents up to 500mA. This component is designed for surface mounting on PCBs and is ideal for applications requiring noise attenuation in electronic circuits.
The device features a compact 4-pin surface mount package measuring 7mm in length, 3.6mm in height, and 5.9mm in depth. The wirewound inductor construction ensures reliable inductance characteristics and durability, making it well suited for use in low current switching power supplies and telecommunication equipment.
Its operational temperature range from -40°C to 85°C allows for stable performance in various environmental conditions. The packaging material meets UL94 V-0 flame retardant standards, adding safety in industrial and commercial electronic applications. Terminations are pure tin dipped, which ensures excellent solderability and connection reliability on PCB assemblies.
Murata's 5000 series common mode chokes provide effective suppression of common mode noise signals up to 100MHz, improving electromagnetic compatibility and reducing interference. This product conforms to RoHS, ensuring compliance with environmental regulations for hazardous substances.
Compact surface mount design for automated assembly lines. Inductance value of 2.2mH provides efficient noise filtering. Maximum DC current rating of 500mA suitable for low power electronics. Wirewound construction for stable electrical performance.
Wide temperature rating from -40°C to 85°C ensures versatility. UL94 V-0 rated packaging enhances fire safety compliance. Pure tin dip termination style supports robust PCB mounting. Pin count of four facilitates multi-line noise suppression.
Dimensions optimized for compact electronic devices. RoHS compliant to meet international environmental standards.
This surface mount common mode choke is ideal for industrial, telecom, and consumer electronics applications needing reliable noise reduction solutions. Users can depend on Murata Power Solutions for high-quality passive components designed to improve device performance and compliance.
Explore more from the Surface Mount Inductors category at EnvMart for compatible and complementary electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this common mode choke is 2.2mH, with a tolerance ranging from -30 to 50 percent.
This model has a maximum DC current rating of 500mA.
The dimensions of this inductor are 7mm in length, 3.6mm in height, and 5.9mm in depth.
It operates within a temperature range of -40°C to 85°C, making it suitable for harsh environments.
This model features a pure tin dip termination style, which enhances solderability.
Yes, it is compliant with RoHS standards, ensuring it meets environmental regulations for hazardous substances.
The inductor is constructed using a wirewound design, which provides reliable inductance characteristics.
This common mode choke has a pin count of four, facilitating multi-line noise suppression.
The packaging material is rated UL94 V-0 for flame retardancy, adding safety in electronic applications.
It belongs to the 5000 series of common mode chokes from Murata Power Solutions.
This model is suitable for applications requiring noise attenuation in electronic circuits, such as low current switching power supplies and telecommunication equipment.
The maximum DC resistance for this inductor is 400mΩ.
