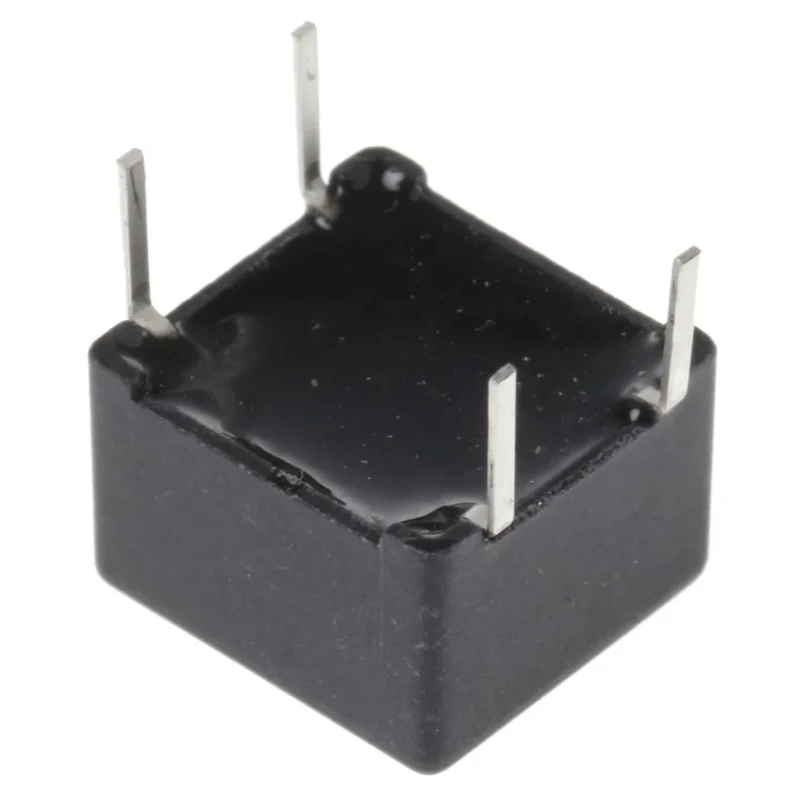

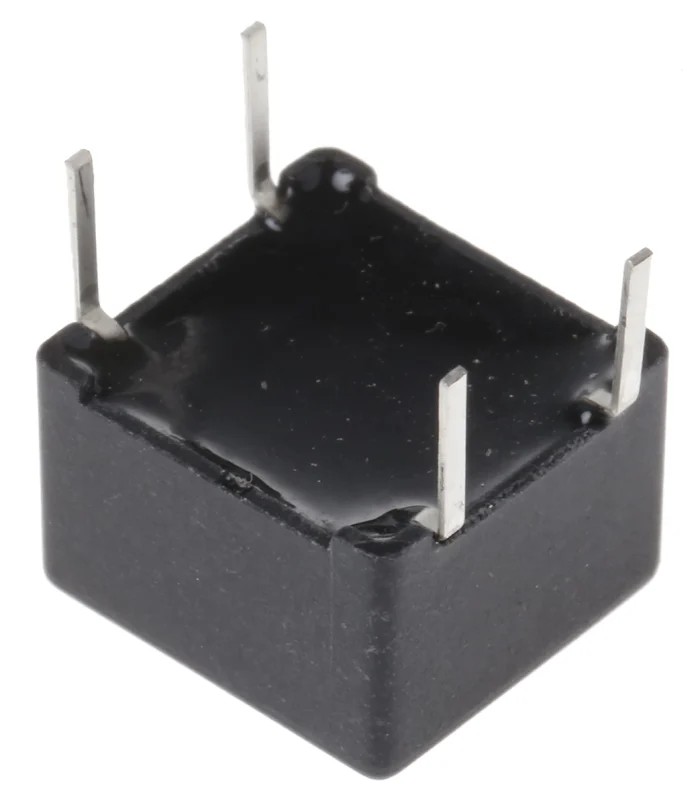

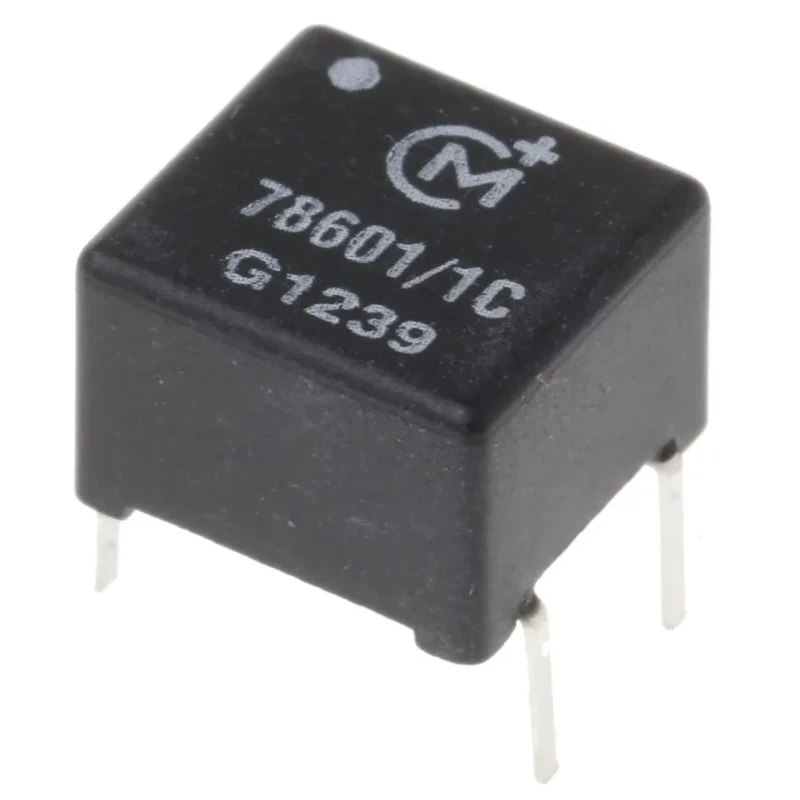

Murata Power Solutions Through Hole Pulse Transformer 3:71 Turns Ratio, 2000 μH Primary Inductance, 0.6Ω Primary 78601/1C

Murata Power Solutions model 78601/1C is a through hole pulse transformer primarily designed for coupling applications, thyristor and triac firing, and small sized switch mode power supply systems. It features a 3:71 turns ratio enabling efficient voltage transformation crucial in power conversion and signal transmission circuits.

The primary inductance of 2000 μH and low primary DC resistance of 0.6Ω contribute to reliable signal integrity and minimal power loss during operation. This transformer is built to operate safely within a temperature range of 0°C to 70°C, making it suitable for industrial and commercial electronic assemblies.

The device has a compact form factor, measuring 9.52 mm in length, 9 mm in width and 6.35 mm in depth, and weighs only 1.1 g. It features six pins with a through hole mount type enabling secure installation on printed circuit boards. The isolation voltage of 1 kV provides effective electrical separation and safety in varied electronic environments.

Compliant with RoHS standards, the pulse transformer is environmentally friendly and suitable for green manufacturing processes. The specified leakage inductance of 0.47 μH enhances its performance in filtering and noise suppression. Additionally, the transformer can be configured to modify turns ratios by series connection of windings and can also function as a common mode choke in specific filtering applications.

This pulse transformer is ideal for applications in industrial control systems, power electronics, telecommunications, and other electronic instrumentation requiring signal isolation and voltage transformation in compact formats.

The pulse transformer features a 3:71 turns ratio for effective voltage transformation. Primary inductance of 2000 μH supports signal integrity. Low primary DC resistance of 0.6Ω minimizes power loss. Compact through hole mount design with six pins for versatile installation.

Operating temperature range from 0°C to 70°C ensures reliability in various environments. RoHS compliant ensuring adherence to environmental standards. Leakage inductance of 0.47 μH for improved filtering. Dimensions of 9.52 mm (L) x 9 mm (W) x 6.35 mm (D) with a weight of 1.1 g.

Isolation voltage rating of 1 kV enhances electrical safety. Can be used as a common mode choke in filtering applications.
