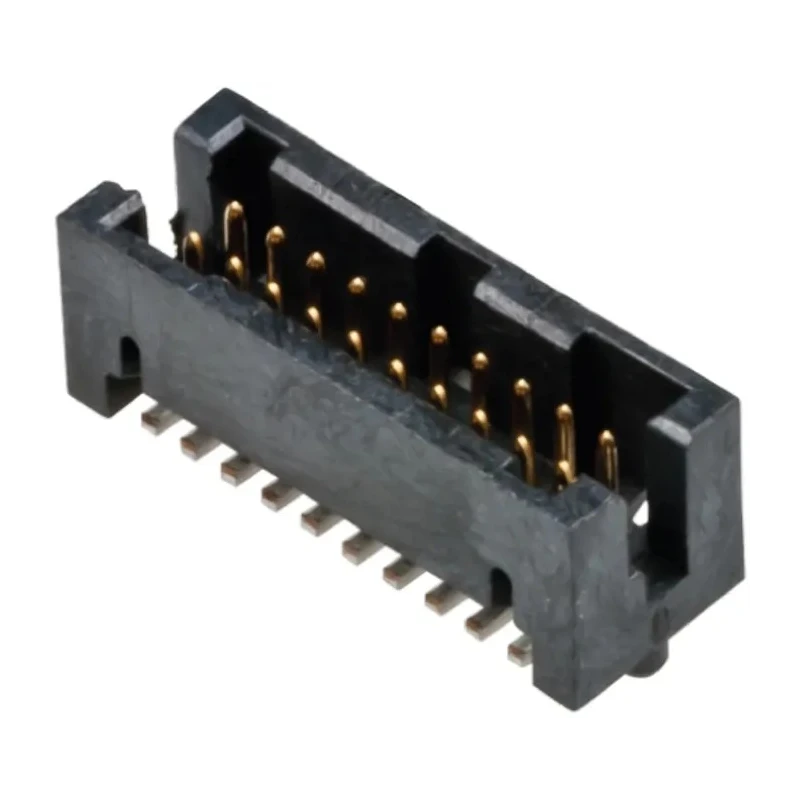

Amphenol ICC Rib-Cage Series Straight Surface PCB Header, 20 Contacts, 1.27 mm Pitch, 2 Row, Shrouded 87409-110LF

Free Delivery in India | Lowest Global Shipping Charges

Amphenol ICC Rib-Cage Series Straight Surface PCB Header, 20 Contacts, 1.27 mm Pitch, 2 Row, Shrouded 87409-110LF

Name: Amphenol ICC Rib-Cage Series Straight Surface PCB Header, 20 Contacts, 1.27 mm Pitch, 2 Row, Shrouded 87409-110LF
Brand: Amphenol ICC
SKU: 219331



Category PCB Headers Brand Amphenol ICC Condition New

Specifications

Country of Origin	China
Voltage	800V
Brand	Amphenol ICC
Orientation	Straight
Current	1A
Model	87409-110LF
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	Rib-Cage
Termination Type	Solder
Maximum Operating Temperature	130°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	1.27mm
Contact Plating	Gold
Number of Contacts	20
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

Features a Rib-Cage series with liquid crystal polymer housing.
Designed with phosphor bronze contacts plated with gold for corrosion resistance.
Supports a current rating of 1A with a voltage rating of 800V.
Offers surface-mount technology mounting with a straight orientation.
Operates in extreme temperature ranges from -55°C to 130°C.
Shrouded male contact type ensures reliable board-to-board connections.
Compatible with mezzanine connections for printed circuit boards and flexible printed circuits.
Manufactured in China with a product condition rated as new.

Product Description

Amphenol ICC 87409-110LF PCB Header is a high-quality rib-cage series straight surface mount connector designed for precision electronic applications. Featuring 20 male contacts arranged in two rows with a 1.27 mm pitch, it ensures reliable board-to-board connectivity in demanding industrial environments.

The connector housing is made from liquid crystal polymer, providing durability and stability under mechanical stress. Contacts are composed of phosphor bronze and plated with 0.76 μm gold for excellent conductivity and corrosion resistance. Designed for surface mounting, it offers a straight orientation and shrouded configuration to protect the contacts.

Rated for a current of 1 ampere and voltage up to 800 volts, this PCB header operates reliably across a wide temperature range from -55°C to 130°C. Its termination type is designed for soldering, facilitating secure electrical connections. The rib-cage system accommodates mezzanine connections between printed circuit boards (PCBs) or flexible printed circuits (FPCs), making it suitable for advanced electronic assemblies.

This component has no specific certifications but adheres to quality manufacturing standards for industrial and commercial electronics. Applications include use in electronic components manufacturing, industrial automation, telecommunications, and other sectors requiring robust PCB interconnections.

Features a Rib-Cage series with liquid crystal polymer housing. Designed with phosphor bronze contacts plated with gold for corrosion resistance. Supports a current rating of 1A with a voltage rating of 800V. Offers surface-mount technology mounting with a straight orientation.

Operates in extreme temperature ranges from -55°C to 130°C. Shrouded male contact type ensures reliable board-to-board connections. Compatible with mezzanine connections for printed circuit boards and flexible printed circuits.

Manufactured in China with a product condition rated as new.
