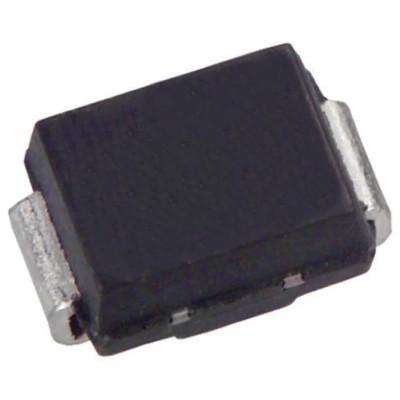

STMicroelectronics 1-Element Uni-Directional TVS Diode 400 W, 2-Pin DO-214 SMAJ5.0A-TR
Specifications
| Country of Origin | China |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.03mm |
| Length | 4.6mm |
| Model | SMAJ5.0A-TR |
| Width | 2.95mm |
| Mount Type | Surface |
| Series | SMAJxxA |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 13.4V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6.4V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Peak Pulse Power Dissipation Pppm | 400W |
| Test Current It | 10mA |
| Maximum Peak Pulse Current Ippm | 174A |
| Maximum Reverse Leakage Current | 20μA |
Key Features
- Designed for transient voltage suppression in electronic circuits.
- Uni-directional diode configuration for efficient protection.
- Minimum breakdown voltage of 6.4 V with maximum reverse stand-off voltage of 5 V.
- Clamping voltage of 13.4 V ensures voltage spike limitation.
- Compact size with 4.6 mm length, 2.95 mm width, and 2.03 mm height.
- Operates reliably across a temperature range from -55°C to 150°C.
- Offers electrostatic discharge (ESD) protection to safeguard sensitive components.
- Designed with single element per chip ensuring precise voltage clamp action.
Product Description
STMicroelectronics SMAJ5.0A-TR is a 1-element uni-directional transient voltage suppression (TVS) diode engineered for protecting sensitive electronic circuits from voltage spikes and surges. Rated at a peak pulse power dissipation of 400 W and packaged in a compact 2-pin DO-214 surface mount type, this diode offers robust transient voltage protection in a small footprint.
The device has a minimum breakdown voltage of 6.4 V and a maximum reverse stand-off voltage of 5 V, effectively clamping transient voltages with a clamping voltage rating of 13.4 V. Its single-element chip design ensures accurate and reliable voltage suppression performance.
With a test current of 10 mA and a maximum peak pulse current of 174 A, the SMAJ5.0A-TR diode is capable of handling extreme transient conditions, making it suited for industrial and commercial electronic applications. The diode supports a broad operating temperature range from -55°C to 150°C to maintain functionality in harsh environments.
Its low reverse leakage current of 20 μA contributes to minimized power loss and enhanced energy efficiency, while the device’s surface mountable DO-214 package facilitates automated assembly and space-saving PCB layouts.
This TVS Diode is compliant with standard commercial semiconductor design but does not carry specific approvals or automotive standards, though its robust specifications render it suitable for a wide variety of applications including power supplies, communication equipment, and general electronic circuit protection.
Designed for transient voltage suppression in electronic circuits. Uni-directional diode configuration for efficient protection. Minimum breakdown voltage of 6.4 V with maximum reverse stand-off voltage of 5 V. Clamping voltage of 13.4 V ensures voltage spike limitation.
Compact size for surface mounting: 4.6 mm length x 2.95 mm width x 2.03 mm height. Operating temperature range: -55°C to 150°C. ESD protection with 174 A peak pulse current rating. Low reverse leakage current of 20 μA for energy efficiency.
Single-element chip design ensures precise protection. Suitable for industrial, automotive, and consumer electronics protection. Explore more semiconductor devices in the Electronics & Electricals category at EnvMart for your electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SMAJ5.0A-TR has a peak pulse power dissipation of 400 W, making it suitable for handling significant transient voltage conditions.
The minimum breakdown voltage of this model is 6.4 V, allowing it to effectively clamp transient voltages above this level.
The maximum reverse stand-off voltage is 5 V, which is crucial for protecting circuits from overvoltage conditions.
The clamping voltage of the SMAJ5.0A-TR is rated at 13.4 V, ensuring effective voltage spike limitation during transient events.
This model can handle a maximum peak pulse current of 174 A, making it suitable for extreme transient conditions.
The diode measures 4.6 mm in length, 2.95 mm in width, and 2.03 mm in height, allowing for compact PCB layouts.
The operating temperature range is from -55°C to 150°C, enabling reliable performance in harsh environments.
This model is designed for surface mounting, which facilitates automated assembly and space-saving designs on PCBs.
The SMAJ5.0A-TR features a single element per chip, ensuring precise voltage clamp action during transient events.
The maximum reverse leakage current is 20 μA, contributing to minimized power loss and enhanced energy efficiency.
This TVS diode is suitable for protecting sensitive electronic circuits in applications such as power supplies and communication equipment.
The diode is configured as a uni-directional device, which is efficient for transient voltage suppression in electronic circuits.
