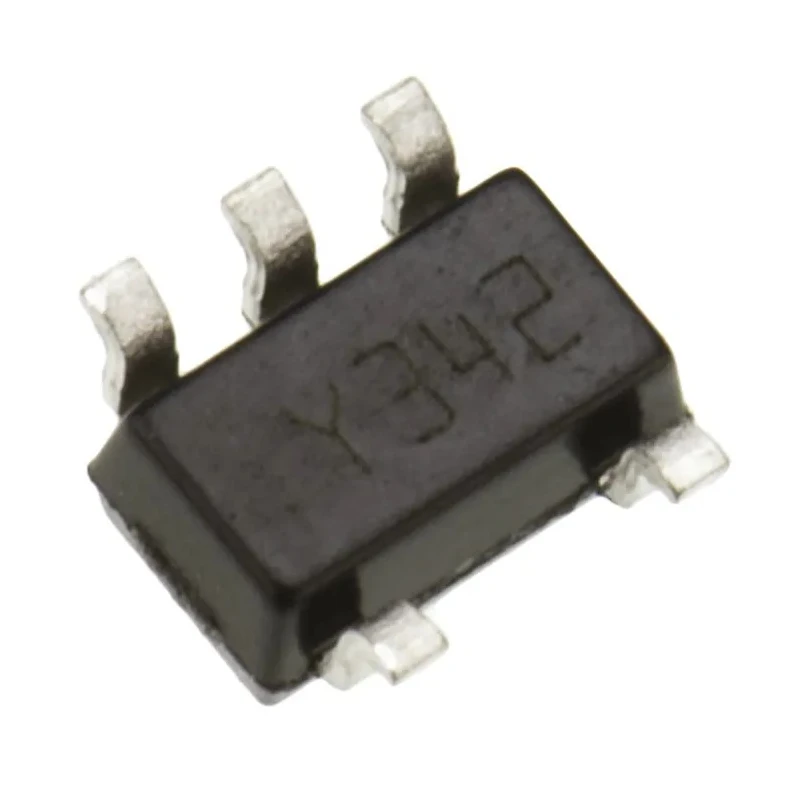

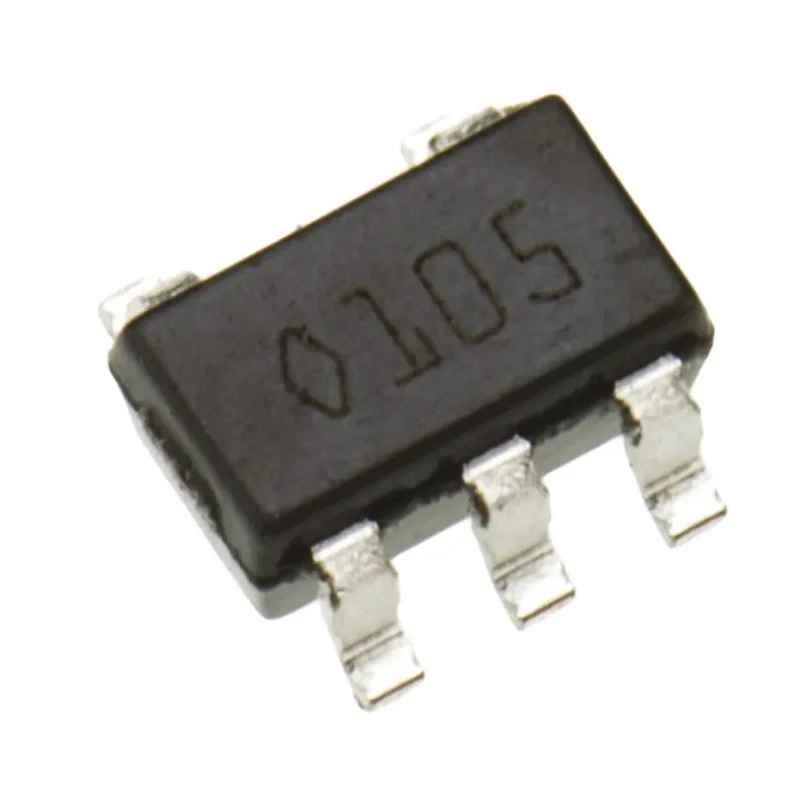

STMicroelectronics Current Sensing Amplifier Single Channel 5-Pin SOT-23 Package TSC101BILT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.3mm |
| Length | 3mm |
| Model | TSC101BILT |
| Mount Type | Surface |
| Series | TSC101 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 5 |
| Maximum Supply Voltage | 24V |
| Minimum Supply Voltage | 4V |
| Supply Current | 300μA |
| GBP - Gain Bandwidth Product | 670kHz |
| CMRR - Common Mode Rejection Ratio | 90dB |
Key Features
- Operates with a single power supply voltage ranging from 4V to 24V.
- Features a high common mode rejection ratio (CMRR) of 90dB for accurate sensing.
- Consumes low supply current of 300μA, ensuring efficient power usage.
- Compact package with 3mm length and 1.3mm height suitable for space-constrained designs.
- Gain bandwidth product of 670kHz enabling responsive signal amplification.
- Wide operating temperature range from -40°C to 125°C for reliable industrial performance.
- Surface mount device with 5 pins in SOT-23 package type.
- Ideal for enhancing application safety by accurate current sensing in power rails.
Product Description
STMicroelectronics TSC101BILT current sensing amplifier is designed for accurate and reliable measurement of currents in electronic circuits. Featuring a single power supply operation between 4V and 24V, it ensures versatility across various industrial and laboratory applications.
The amplifier delivers a voltage output proportional to the voltage drop across low-value resistors, commonly used in high-current power rails, enabling precise current monitoring essential for system safety and performance optimization.
This device offers a high common mode rejection ratio of 90dB which minimizes interference from external noise sources, coupled with a low supply current of 300μA that supports energy-efficient circuits.
The compact SOT-23 5-pin package (3mm length, 1.3mm height) allows for easy integration in space-constrained printed circuit boards. Its gain bandwidth product of 670kHz facilitates fast and accurate amplification of current signals.
Operating reliably within a wide temperature range of -40°C to 125°C, the TSC101BILT suits demanding industrial, electronic manufacturing, and research laboratory environments. Though not certified for automotive standards, it is well-suited for general current sensing needs in electronics, power management, and embedded system applications.
Operates on a single supply voltage from 4V to 24V providing flexibility. Maintains high noise rejection with a 90dB common mode rejection ratio. Ensures low power consumption with 300μA supply current. Compact 5-pin SOT-23 surface mount package for PCB integration.
Wide operating temperature from -40°C to 125°C for robust performance. Gain bandwidth product of 670kHz allows for responsive signal handling. Accurately senses current for enhanced application safety in power rails. Explore more Current Sensing Amplifiers and semiconductor components for industrial, laboratory, and electronic design applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with a single power supply voltage ranging from 4V to 24V.
The amplifier features a high common mode rejection ratio (CMRR) of 90dB, which helps minimize interference from external noise sources.
It consumes a low supply current of 300μA, ensuring efficient power usage.
The gain bandwidth product of the TSC101BILT is 670kHz, enabling responsive signal amplification.
The compact SOT-23 package has a length of 3mm and a height of 1.3mm, making it suitable for space-constrained designs.
It operates reliably within a wide temperature range of -40°C to 125°C, suitable for industrial applications.
This model is a single channel current sensing amplifier.
It is a surface mount device, designed for easy integration into printed circuit boards.
It is well-suited for general current sensing needs in electronics, power management, and embedded system applications.
The maximum operating temperature for the TSC101BILT is 125°C.
The minimum supply voltage required for this model is 4V.
The country of origin for the TSC101BILT is India.
