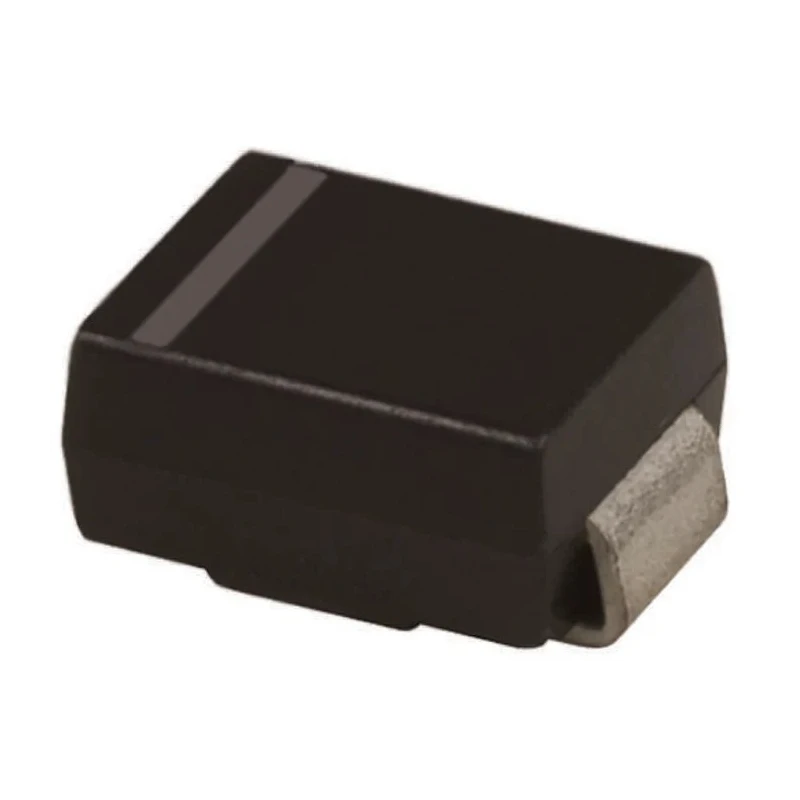

STMicroelectronics 1-Element Uni-Directional TVS Diode Surface Mount 2-Pin DO-214 Package 600 W SM6T30A

STMicroelectronics SM6T30A is a 1-element uni-directional TVS (Transient Voltage Suppressor) diode designed to protect sensitive electronic equipment from voltage spikes and electrostatic discharges. This device supports a peak pulse power dissipation of 600 W, delivering robust transient voltage protection in a compact 2-pin DO-214 surface mount package.

The TVS Diode features a single diode configuration providing uni-directional clamping action, which is ideal for DC power lines and sensitive electronics requiring protection from fast transient surges. It offers a minimum breakdown voltage of 28.5 V and maximum reverse stand-off voltage of 25.6 V, ensuring effective voltage surge suppression.

Key electrical characteristics include a maximum peak pulse current of 75 A and a clamping voltage of 53.5 V. The device also maintains low leakage current (maximum 200 nA) at operating voltage, which minimizes power loss and improves efficiency. It is designed to operate in harsh environments with operational temperatures ranging from -55°C to 150°C, suitable for industrial, automotive, telecommunications, and consumer electronic applications.

The SM6T30A maintains compact dimensions with a length of 3.95 mm, width of 4.6 mm, and height of 2.45 mm, facilitating ease of integration in space-constrained PCB designs. Its surface mount capability ensures reliable mechanical and electrical connections, improving manufacturing efficiency.

This device complies with standard industrial requirements and is ideal for transient voltage suppression applications in power supplies, automotive electronics, consumer electronics, and telecommunications equipment. Its rugged design ensures enhanced longevity and stable protection under extreme transient events.

Designed for electrostatic discharge and transient voltage protection. Uni-directional diode configuration ensures effective overvoltage suppression. Maximum reverse stand-off voltage is 25.6 V with breakdown voltage of 28.5 V.

Capable of withstanding up to 75 A peak pulse current and clamping voltage of 53.5 V. Operates reliably within temperature range of -55°C to 150°C. Compact dimensions with length 3.95 mm, width 4.6 mm, and height 2.45 mm.

Low maximum reverse leakage current of 200 nA for efficient operation. Single element per chip design for precise transient voltage suppression. 2-pin DO-214 package for easy surface mounting in PCB assemblies. Explore more electronic components and semiconductor devices at EnvMart for high quality and reliable industrial-grade products.
