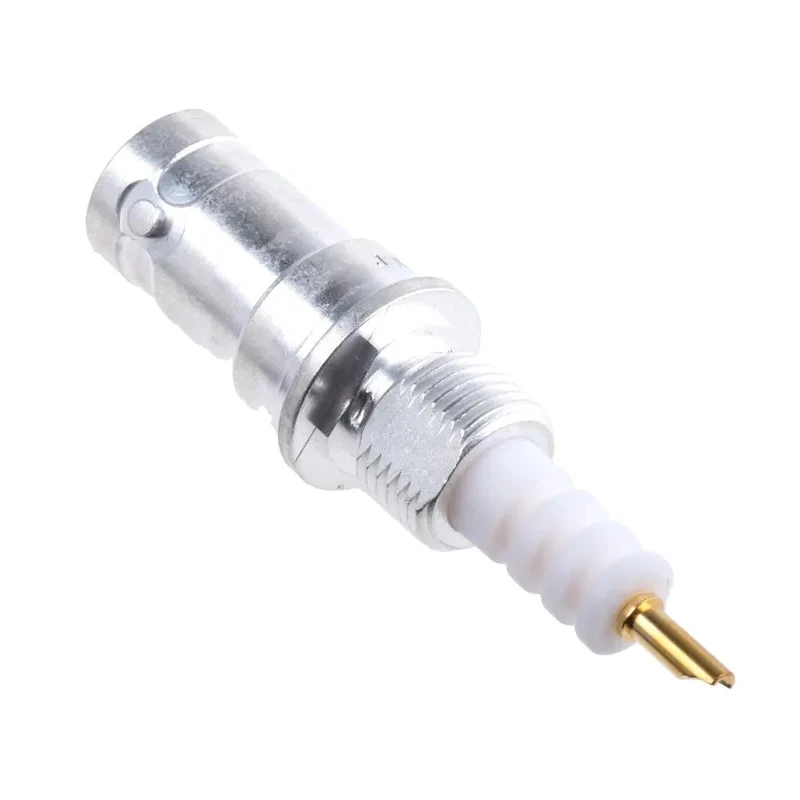

TE Connectivity Coaxial Connector Panel Mount Female SHV, Straight Body, Solder Termination 5051494-1
Specifications
| Country of Origin | Mexico |
|---|---|
| Size | Standard |
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Panel Mount |
| Operating Frequency | 0.3GHz |
| Contact Material | Beryllium Copper Alloy |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Contact Plating | Gold |
| Contact Gender | Male |
| Connector Gender | Female |
| Coaxial Connector Type | SHV |
| Body Plating | Silver |
Key Features
- This connector features a silver plated body and gold plated beryllium copper alloy contacts.
- It provides reliable electrical performance with normal polarity and a male contact gender inside.
- Capable of operating from -65°C to 165°C for a wide temperature range.
- Designed with a polarized center contact recessed in dielectric material for secure connection.
- Bayonet-locking coupling prevents mismating with standard BNC connectors.
- Operates effectively up to 0.3 GHz frequency range for RF applications.
- Manufactured in Mexico, ensuring quality standards.
Product Description
TE Connectivity model 5051494-1 is a high-quality coaxial connector designed for panel mount applications with a female SHV interface and straight body, terminated via soldering. It supports high-voltage requirements up to 5,000 volts DC, making it suitable for demanding industrial and laboratory RF connections.
The connector features a robust silver-plated body and gold-plated beryllium copper alloy contacts, which provide excellent conductivity and corrosion resistance. Its operating temperature range from -65°C to 165°C ensures reliable functioning in harsh environments.
The polarized recessed center contacts enhance safety by preventing incorrect mating, while the bayonet-locking mechanism secures the connection firmly. With a frequency operation capability up to 0.3 GHz, this connector is ideal for RF coaxial cable interfaces in communication, instrumentation, and scientific equipment.
Manufactured in Mexico to exacting standards, this SHV coaxial connector panel mount female type offers reliable performance for industrial, laboratory, telecommunications, and high-voltage applications.
This connector features a silver plated body and gold plated beryllium copper alloy contacts. Provides normal polarity with a male contact gender inside the female connector. Operation temperature range from -65°C to 165°C supports harsh conditions.
Bayonet-locking coupling prevents misconnection with other types such as BNC connectors. Capable of operating up to 0.3 GHz frequency for RF applications. Panel mount design for convenient and secure installation. Termination via solder ensures stable electrical connection.
This product is widely used in industrial, laboratory, communication systems, and other high-voltage electronic assemblies. Browse similar Coaxial Connectors and industrial connectors at EnvMart for all your connectivity needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports high-voltage requirements up to 5,000 volts DC, making it suitable for demanding industrial and laboratory RF connections.
It operates effectively within a temperature range of -65°C to 165°C, ensuring reliable functioning in harsh environments.
The connector features a solder termination type, ensuring a stable electrical connection.
It is capable of operating up to 0.3 GHz, making it suitable for RF applications.
It features a silver-plated body and gold-plated beryllium copper alloy contacts, providing excellent conductivity and corrosion resistance.
This model has a female connector gender, with a male contact gender inside.
The bayonet-locking coupling secures the connection firmly and prevents mismating with standard BNC connectors.
It is manufactured in Mexico, ensuring adherence to quality standards.
The connector has a straight orientation, suitable for panel mount applications.
It is widely used in industrial, laboratory, communication systems, and other high-voltage electronic assemblies.
The contacts are made of beryllium copper alloy, which enhances conductivity and performance.
The polarized recessed center contacts enhance safety by preventing incorrect mating during connection.
