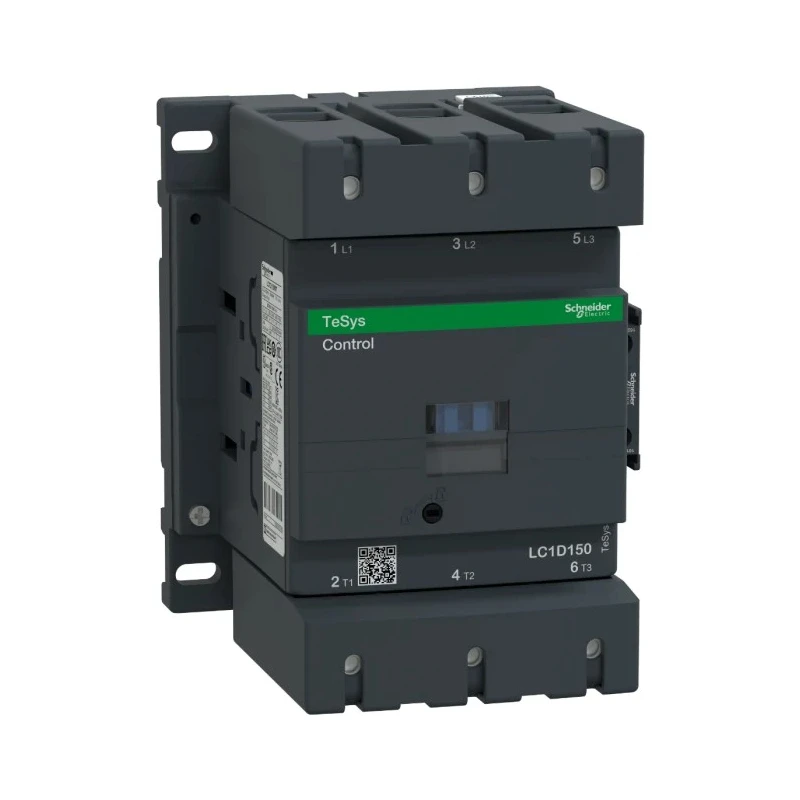

Schneider Electric TeSys D Contactor 3-Pole 150 A 80 kW 1kV AC Coil 48V AC LC1D150E7

Schneider Electric LC1D150E7 TeSys D contactor is a high-performance, 3-pole contactor designed for motor control and resistive load applications. It supports a coil voltage of 48V AC and contact voltage up to 1 kV AC with a rated contact current of 150 A, making it suitable for motors up to 80 kW.

The device features a robust design with screw clamp terminals for both load and auxiliary connections, providing secure and durable electrical contact. It includes two auxiliary contacts configured as one normally open and one normally closed (mirror certified), enhancing functionality for complex control circuits.

Designed for efficient industrial installation, the contactor mounts easily on standard DIN rails and supports operation in ambient temperatures ranging from -5°C to 60°C. Its compact dimensions (158mm length, 120mm width, 132mm depth) allow for dense panel integration without sacrificing accessibility.

Certified across multiple international standards (IEC, UL, CSA, CCC, EAC) and compliant with RoHS/REACh regulations, this contactor ensures safety, reliability, and environmental responsibility. Its coil operates at 48V AC with integrated transient suppression for enhanced durability.

Typical applications include motor starters for industrial machinery, HVAC systems, manufacturing automation, and construction equipment. The contactor fulfills power needs up to 40 HP at 200 - 208 VAC, 50 HP at 240 VAC, 100 HP at 480 VAC, and 125 HP at 600 VAC across three-phase power systems.

Equipped with a 48V AC coil for efficient control circuit operation. Features 3 normally open poles suitable for motor control and resistive loads. Rated for 150 A contact current with 1 kV AC contact voltage capacity. Includes 2 auxiliary contacts with 1 NO and 1 NC configuration for versatile switching.

Mounted on DIN rail for robust and compact installation. Supports operational temperatures from -5°C to 60°C, ensuring reliability in various environments. Complies with international standards including CCC, CSA, EAC, IEC, RoHS, and UL.

Durable screw terminal connections with IP20 finger-safe protection. Compact dimensions optimize panel space with 158mm length, 120mm width, and 132mm depth. Suitable for industrial uses such as motor starters, HVAC, automation, manufacturing, and construction.
