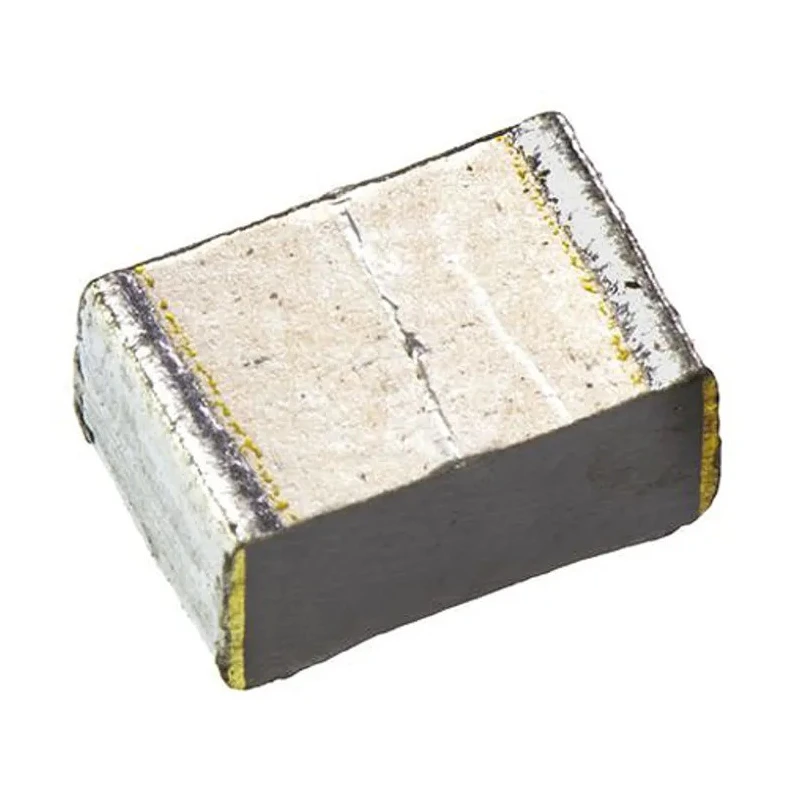

Panasonic ECHU(X) Series Film Capacitor 50 V dc 50 V ac, 220 nF, Surface Mount, 125°C Maximum Operating ECHU1H224JX9

Panasonic ECHU1H224JX9 ECHU(X) Series Film Capacitor is a precision 220 nF capacitance device designed for demanding electronics applications requiring stable performance and long-term reliability. It supports a rated DC voltage of 50 V and AC voltage of 50 V, with a maximum operating temperature of 125°C, making it suitable for harsh industrial environments.

Constructed from stacked metallised Polyphenylene Sulfide (PPS) film, this capacitor employs a mold-less design that reduces weight and size, enabling compact and efficient circuit board layouts. Its low Equivalent Series Resistance (ESR) enhances performance in filtering and audio frequency circuits.

The capacitor is specifically engineered for surface mount technology (SMT) and is compatible with reflow soldering, optimizing manufacturing efficiency in high-volume PCB assembly scenarios. Its resilience to environmental stress is validated by its ability to withstand 85°C at 85% relative humidity for 500 hours, ensuring stability and reliability.

Typical applications of the Panasonic ECHU(X) Series film capacitors include time constant applications, oscillation and resonance circuits, as well as general filtering and audio circuits in industrial and commercial electronic equipment.

Compact surface mount Film Capacitor with 220 nF capacitance. 50 V dc and 50 V ac rated voltage capacity. Mold-less metallised PPS film construction enhances durability. Low ESR for improved circuit performance. High operating temperature of up to 125°C.

RoHS compliant and environmentally safe.

The product's origin is Japan, attesting to Panasonic’s high-quality manufacturing standards. It is designed for electronics, industrial machinery, and power components markets demanding reliability and consistency.
