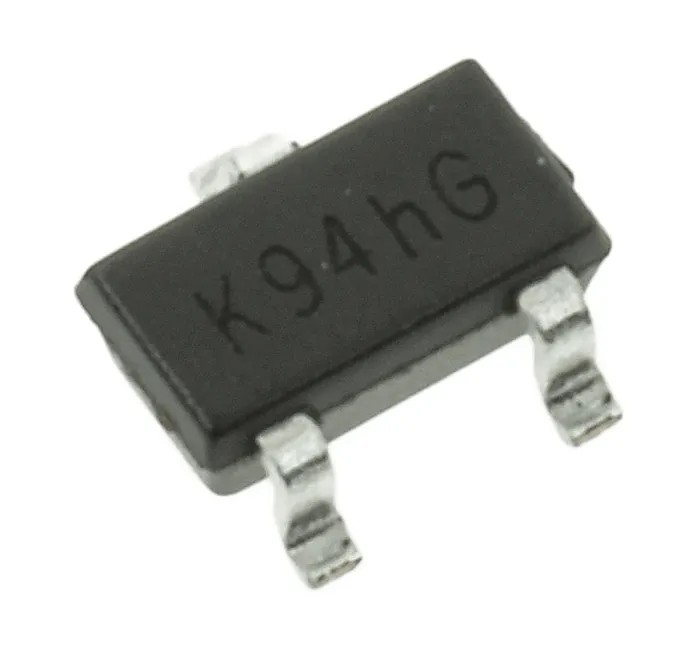

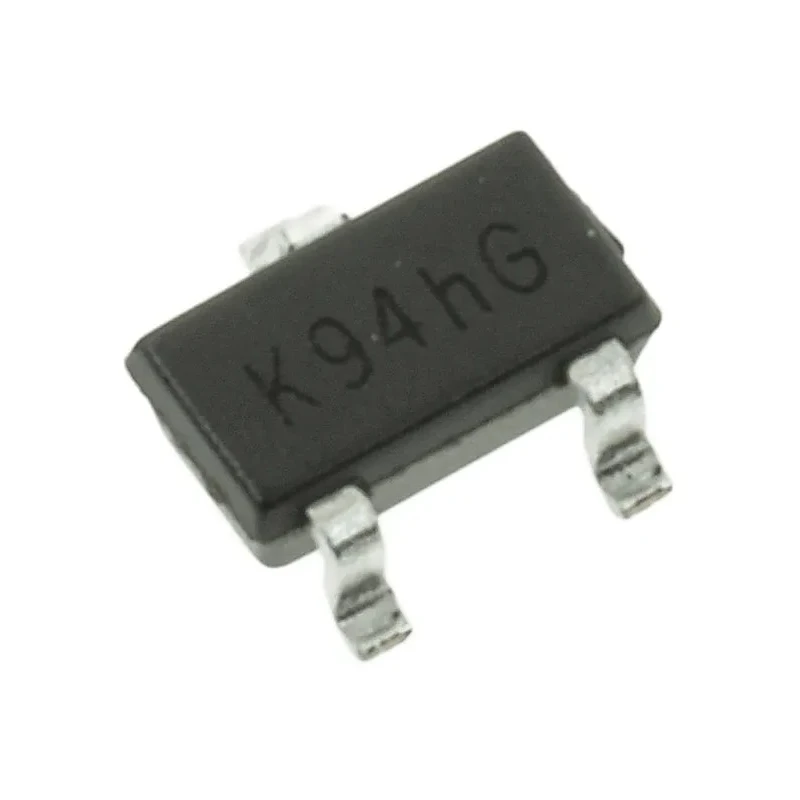

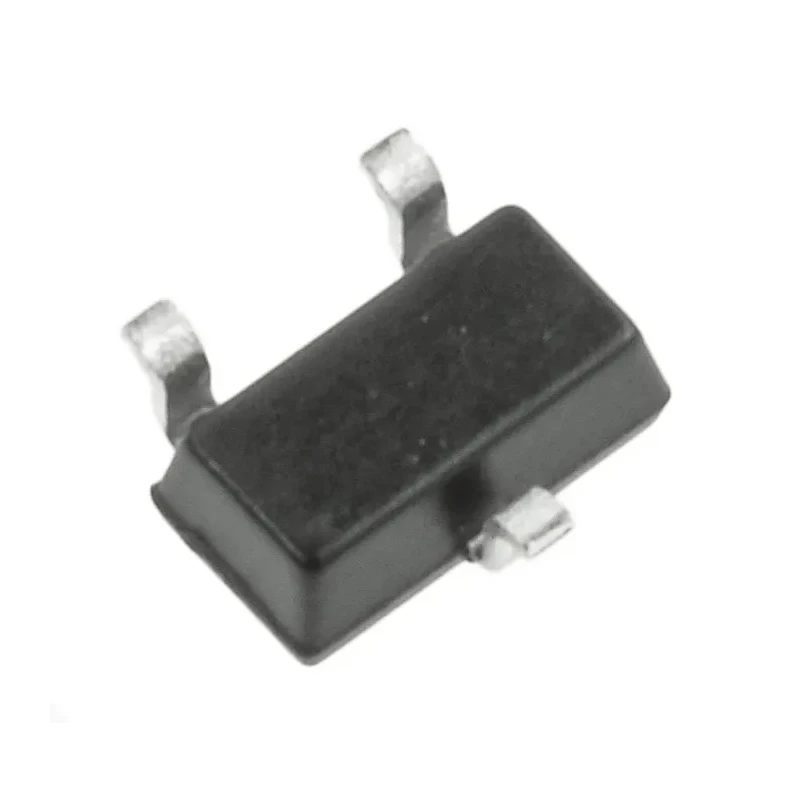

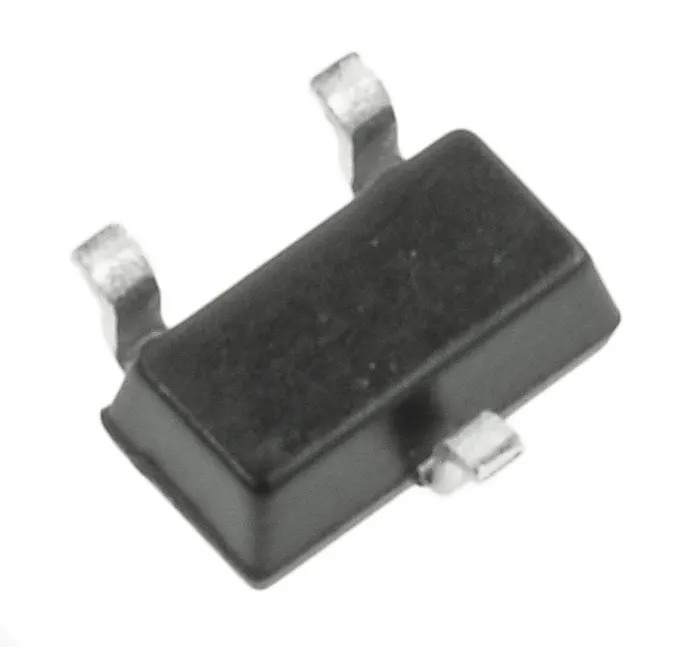

DiodesZetex Surface Micropower Omnipolar Hall-effect Switch 2.5 V to 5.5 V SC-59 3-Pin AH180N-WG-7
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Response time | 125μs |
| Height | 1.3mm |
| Length | 3.1mm |
| Model | AH180N-WG-7 |
| Technology | Chopper Stabilised |
| Sensor Type | Hall Effect Sensors |
| Width | 1.7mm |
| Mount Type | Surface |
| Series | AH180N |
| Maximum Operating Temperature | 85°C |
| Package Type | SC-59 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Supply Current | 40μA |
| Magnetic Type | Omnipolar |
Key Features
- The device operates within a supply voltage range of 2.5 V to 5.5 V.
- It features a compact SC-59 surface mount package with a 3-pin configuration.
- The operating temperature range is from -40°C to 85°C ensuring performance in harsh environments.
- This Hall-effect switch uses chopper stabilized technology for enhanced sensitivity and stability.
- The omnipolar magnetic type responds to both north and south magnetic poles.
- Supply current is extremely low at 40 μA, allowing efficient power use.
- Response time is fast at 125 μs suitable for high-speed switching applications.
- The device conforms to RoHS 2 directives and withstands ESD levels above 6 kV (HBM).
Product Description
DiodesZetex AH180N-WG-7 Surface Micropower Omnipolar Hall-effect Switch operates over a supply voltage range of 2.5 V to 5.5 V and is designed for highly reliable, non-contact magnetic switching in electronic systems.
Featuring a small SC-59 surface mount package and 3-pin configuration, the AH180N-WG-7 is optimized for space-constrained circuit boards and enables compact, low-power designs. Its chopper stabilized technology provides stable, noise-immune output signals, making it suitable for precise sensing and switching applications.
The omnipolar magnetic sensing capability allows activation by either magnetic polarity, increasing design flexibility.
It functions effectively across an operating temperature window from -40°C to 85°C, suitable for industrial, automotive (non-automotive standard), and consumer electronics environments.
The device draws a minimal supply current of 40 μA, enhancing energy efficiency in battery-powered devices, while a response time of 125 μs supports fast switching and sensing tasks.
Compliance with RoHS 2 (EU Directive 2011/65/EU) and robust ESD protection above 6 kV ensures environmental and operational reliability. With compact dimensions (3.1 mm length, 1.7 mm width, 1.3 mm height), it is ideal for modern electronics where PCB space is at a premium.
This Hall-effect switch is manufactured in China and supplied new to meet rigorous quality standards. The device is well-suited for applications in industrial automation, consumer electronics, robotics, and embedded systems requiring magnetic proximity sensing.
Its omnipolar sensing makes it flexible for use in position sensing and speed measurement applications. The compact SC-59 package simplifies PCB assembly and supports automated insertion processes. Low power consumption is advantageous for portable and low-energy electronic systems.
The robust operating temperature and ESD resistance extend device longevity in demanding environments. Explore the DiodesZetex product line and related Hall-effect sensor ICs at EnvMart for your electronic component needs.
Explore more products in our Hall Effect Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of 2.5 V to 5.5 V.
The response time is 125 μs, making it suitable for high-speed switching applications.
It functions effectively across an operating temperature range from -40°C to 85°C.
The device features a compact SC-59 surface mount package with a 3-pin configuration.
The supply current is extremely low at 40 μA, enhancing energy efficiency in applications.
This model uses chopper stabilized technology for enhanced sensitivity and stability.
It offers omnipolar magnetic sensing, responding to both north and south magnetic poles.
The dimensions are 3.1 mm in length, 1.7 mm in width, and 1.3 mm in height.
It is suitable for industrial, automotive (non-automotive standard), and consumer electronics environments.
The device withstands ESD levels above 6 kV (HBM), ensuring operational reliability.
This Hall-effect switch is manufactured in China.
It is well-suited for applications in industrial automation, consumer electronics, robotics, and embedded systems requiring magnetic proximity sensing.
