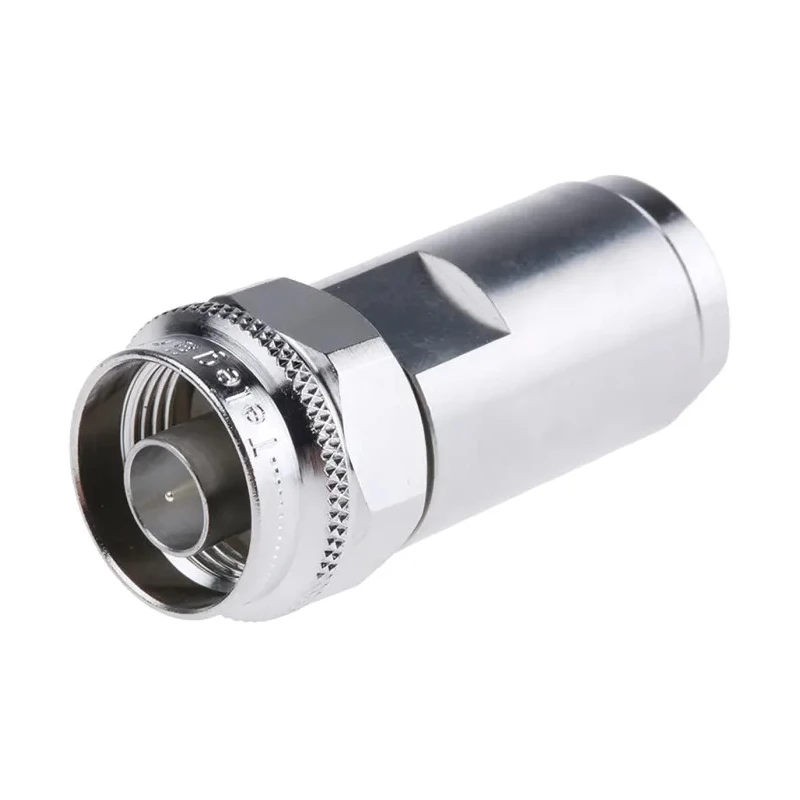

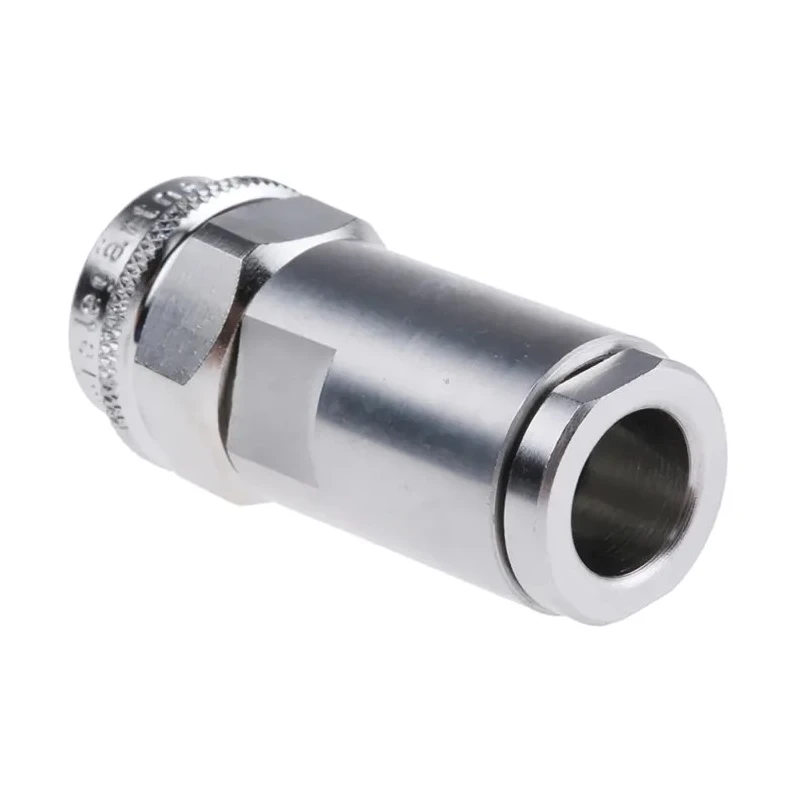

Telegartner N Series Coaxial Connector Cable Male N Connector, 50 Ω, Straight Body Clamp J01020A0156
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Straight |
| Model | J01020A0156 |
| Mount Type | Cable |
| Operating Frequency | 11GHz |
| Contact Material | Silver Alloy |
| Series | N |
| Termination Type | Clamp |
| Maximum Operating Temperature | 100°C |
| Cable Type | 2.7/7.25, LMR-400 |
| Minimum Operating Temperature | -30°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Silver |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | N Connector |
| Body Plating | Copper Nickel Alloy |
Key Features
- The connector is designed for cable mounting type.
- It supports an operating frequency up to 11 GHz for high-performance RF applications.
- The body plating is a durable copper nickel alloy to ensure longevity.
- Termination is by clamp, facilitating secure cable attachment.
- Suitable for use in operating temperatures from -30°C to 100°C.
- The contact is made from silver alloy with silver plating for excellent signal integrity.
- It features a male connector gender and normal polarity.
- Complies with no specific standards or approvals.
Product Description
Telegartner J01020A0156 N Series Coaxial Connector Cable Male N Connector is engineered for professional RF coaxial connection applications, offering a characteristic impedance of 50 ohms. The connector features a straight body clamp design, allowing secure and reliable cable termination suitable for demanding electronic setups.
This Coaxial Connector supports a broad operating frequency range up to 11 GHz, making it ideal for industrial, telecommunications, and measurement equipment applications requiring high signal integrity and minimal loss.
The connector body is plated with copper nickel alloy, which provides corrosion resistance and durability in varied environmental conditions. The contact utilizes silver alloy with silver plating, delivering excellent conductivity and ensuring minimal intermodulation distortions in RF signals.
Designed for cable mounting, the clamp-type termination securely attaches cables, such as 2.7/7.25 LMR-400 types, which are standard in RF cable assemblies. Operating temperature ranges from -30°C to 100°C allow this connector to perform reliably in harsh environments.
With its male connector gender and normal polarity, the product fits seamlessly into compatible female counterparts within the N series range. While no explicit certifications are listed, manufacturing standards from Germany ensure quality and consistency.
The connector is suitable for applications in industrial electronics, telecommunications, laboratory instrumentation, and RF system installations. Its robust design supports use in harsh environments, including temperature extremes and mechanical stress settings.
The product enables low loss, stable connections critical for high-frequency RF signal transmission. Cable compatibility is ensured with common coaxial cables used in professional and industrial contexts. Availability of high-quality connectors like this supports maintenance and upgrade tasks in demanding technical infrastructures.
Explore more connectors and related RF components within the Electronics Components category at EnvMart to support your industrial and commercial electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Telegartner N Series Coaxial Connector supports an operating frequency of up to 11 GHz, making it suitable for high-performance RF applications.
This model uses a clamp-type termination, which facilitates secure attachment of cables.
The connector has a characteristic impedance of 50 ohms, which is standard for RF applications.
The body is plated with a copper nickel alloy for durability, while the contact is made from silver alloy with silver plating to ensure excellent signal integrity.
It can operate within a temperature range of -30°C to 100°C, allowing it to perform reliably in harsh environments.
This connector is suitable for use with 2.7/7.25 and LMR-400 type cables commonly used in RF cable assemblies.
This model features a male connector gender, designed to fit into compatible female counterparts within the N series range.
The connector is manufactured in Germany, ensuring quality and consistency in its production.
The connector has a straight body orientation, which is typical for many RF applications.
The contact is plated with silver, which enhances its conductivity and minimizes intermodulation distortions in RF signals.
It is suitable for applications in industrial electronics, telecommunications, laboratory instrumentation, and RF system installations.
The model number of this connector is J01020A0156, which identifies it within the Telegartner N Series.
