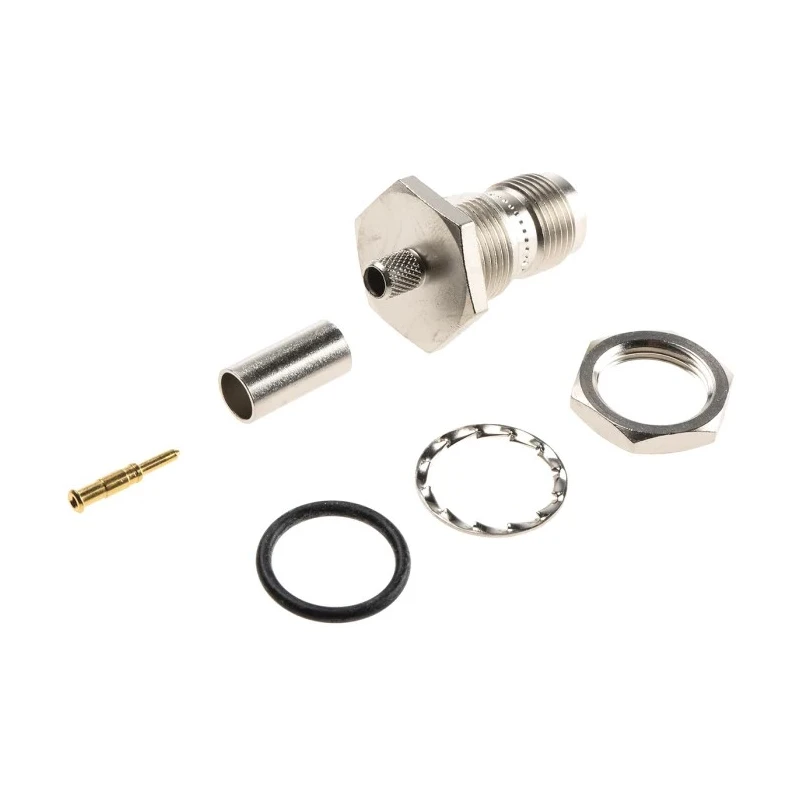

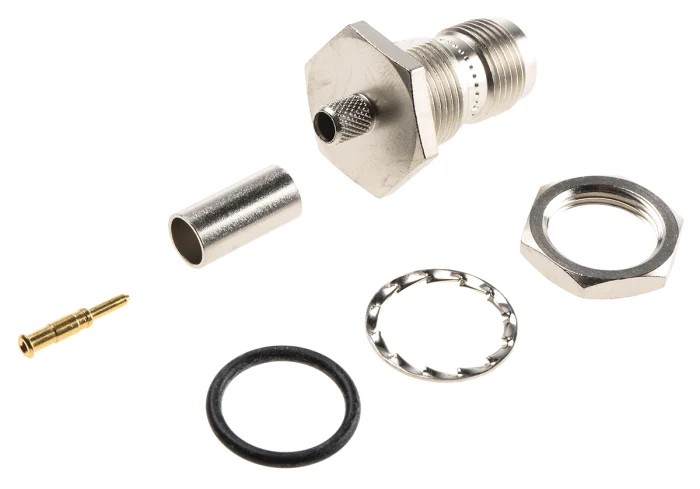

Telegartner TNC Series Coaxial Connector Panel Mount Female TNC, 50 Ω, Straight Body Crimp J01011R0000

Free Delivery in India | Lowest Global Shipping Charges

Telegartner TNC Series Coaxial Connector Panel Mount Female TNC, 50 Ω, Straight Body Crimp J01011R0000

Name: Telegartner TNC Series Coaxial Connector Panel Mount Female TNC, 50 Ω, Straight Body Crimp J01011R0000
Brand: Telegartner
SKU: 218787
Price: 18.76 USD
Availability: InStock



Category Coaxial Connector Brand Telegartner Condition New

Specifications

Country of Origin	Germany
Size	Standard
Brand	Telegartner
Orientation	Straight
Model	J01011R0000
Mount Type	Panel Mount
Operating Frequency	6GHz
Contact Material	Beryllium Copper
Series	TNC
Termination Type	Crimp
Maximum Operating Temperature	165°C
Cable Type	RG58C/U
Minimum Operating Temperature	-65°C
Polarity	Reverse
Impedance	50Ω
Contact Plating	Copper Nickel Gold Alloy
Contact Gender	Female
Connector Gender	Female
Coaxial Connector Type	TNC
Body Plating	Nickel
Telegartner, Jack Panel Mount, 50Ω, Crimp Termination, Straight BodyBrand	Telegartner

Key Features

Designed for panel mount applications with a female connector type.
Features straight body orientation for ease of installation.
Operates up to 6 GHz frequency suitable for RF applications.
Constructed with nickel-plated body and beryllium copper contacts for durability.
Contact plating uses copper nickel gold alloy for improved conductivity.
Supports reverse polarity configuration, mainly used in WLAN systems.
Termination is via crimp method compatible with RG58C/U cables.
Operates in a wide temperature range from -65°C to 165°C.

Product Description

Telegartner J01011R0000 TNC Series Coaxial Connector is a high-quality panel mount female connector designed for precision RF applications. It delivers reliable electrical performance with controlled impedance of 50 Ω and supports frequencies up to 6 GHz, making it ideal for robust WLAN and other high-frequency systems.

The connector features a straight body design and a reverse polarity configuration, providing a secure and vibration-resistant coupling. Its termination type is crimp, suitable for RG58C/U coaxial cables, ensuring firm mechanical and electrical connections.

Constructed with a nickel-plated body, the connector offers resistance against corrosion and wear, while the beryllium copper contacts provide excellent mechanical strength. The contacts are plated with a copper nickel gold alloy, enhancing conductivity and durability.

Designed to withstand operating temperatures ranging from -65°C to 165°C, this connector is suitable for a wide range of industrial, laboratory, and communication applications requiring reliability under extreme conditions.

The product is manufactured in Germany, reflecting stringent quality standards and precision engineering. Designed for panel mount applications with a female connector type. Features straight body orientation for ease of installation.

Operates up to 6 GHz frequency suitable for RF applications. Constructed with nickel-plated body and beryllium copper contacts for durability. Contact plating uses copper nickel gold alloy for improved conductivity. Supports reverse polarity configuration, mainly used in WLAN systems.

Termination is via crimp method compatible with RG58C/U cables. Operates in a wide temperature range from -65°C to 165°C. Manufactured in Germany ensuring high-quality standards.

This TNC coaxial connector is well-suited for use in electronics, industrial communications, and RF test and measurement equipment environments. Explore Telegartner and related Coaxial Connector products for comprehensive solutions in RF connectivity on EnvMart.
