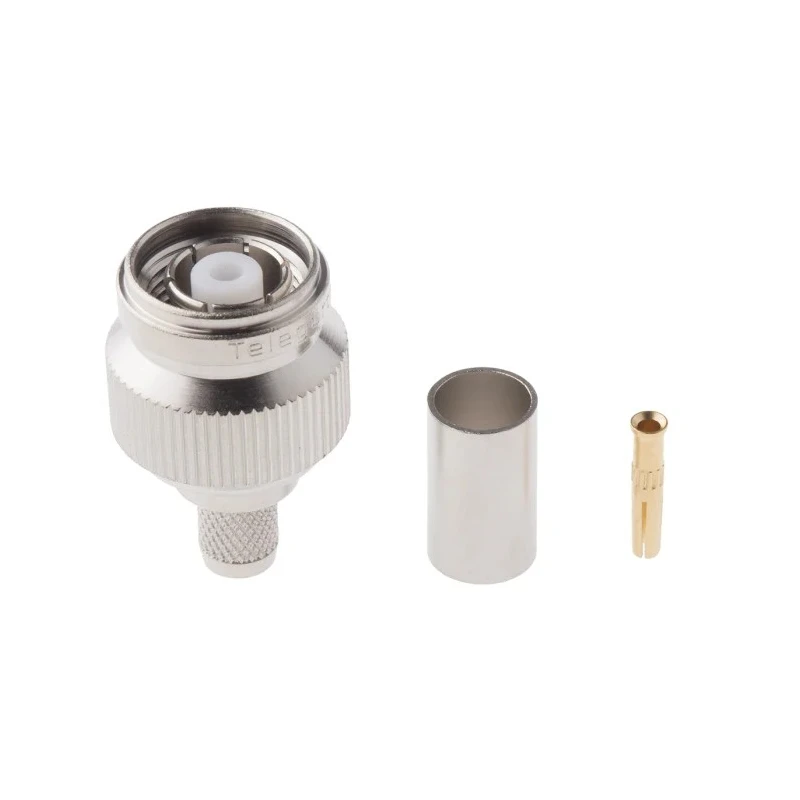

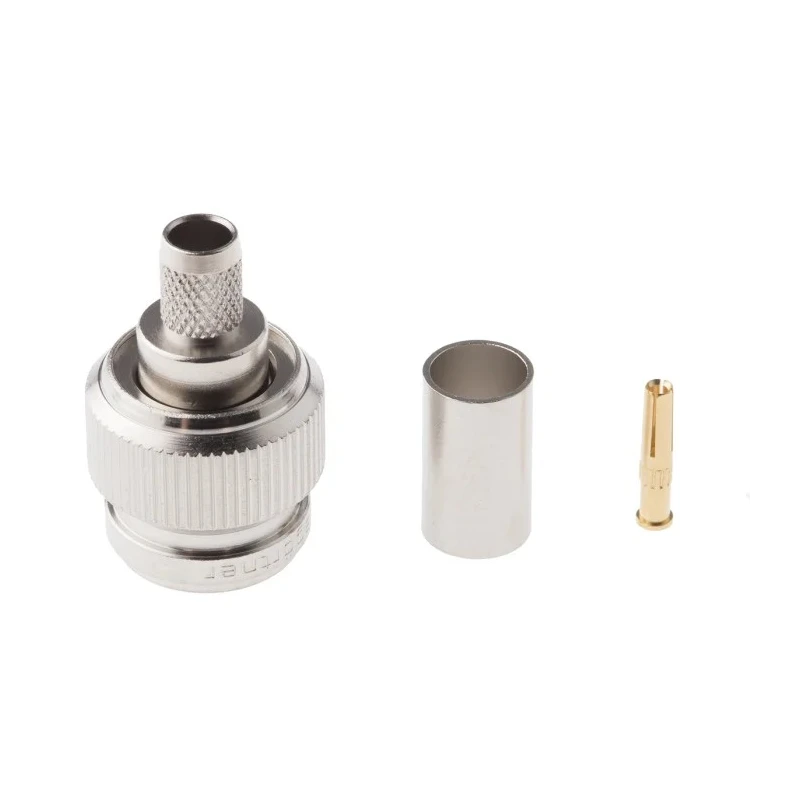

Telegartner TNC Series Coaxial Connector Cable Male TNC, 50 Ω, Straight Body Crimp J01010R0005
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Straight |
| Model | J01010R0005 |
| Mount Type | Cable |
| Operating Frequency | 6GHz |
| Contact Material | Beryllium Copper |
| Series | TNC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 165°C |
| Cable Type | HPF 240, LMR-240, RF 240 |
| Minimum Operating Temperature | -65°C |
| Polarity | Reverse |
| Impedance | 50Ω |
| Contact Plating | Copper Nickel Gold Alloy |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | TNC |
| Body Plating | Nickel |
Key Features
- Connector type is TNC, designed for cable mount.
- Impedance of 50 ohms ensures signal integrity in RF applications.
- Compatible cable types include HPF 240, LMR-240, and RF 240.
- Operating frequency up to 6 GHz suitable for high-frequency use.
- Body plating of nickel offers corrosion resistance.
- Contact made from beryllium copper plated with copper nickel gold alloy for durability.
- Reverse polarity connector ideal for WLAN applications.
- Operates in temperature range from -65°C to 165°C.
Product Description
Telegartner J01010R0005 TNC Series Coaxial Connector Cable is a high-performance RF connector designed for cable mounting with a male TNC interface and straight body crimp termination. It operates at an impedance of 50 Ω and supports frequencies up to 6 GHz, making it well-suited for applications in wireless LANs and other RF communication systems.
The connector features a nickel-plated body for enhanced corrosion resistance and longevity in demanding environments. Its contacts are made of beryllium copper with a copper nickel gold alloy plating, ensuring reliable electrical performance and mechanical strength. The reverse polarity design is particularly useful in specialized WLAN installations where signal integrity and connection reliability are paramount.
This TNC connector type is compatible with cable types HPF 240, LMR-240, and RF 240, giving flexibility for various cabling needs within electronic, telecommunications, and industrial sectors. The operating temperature range from -65°C to 165°C allows this connector to perform reliably in extreme environmental conditions.
The crimp termination type provides a robust and vibration-resistant connection, suitable for professional assembly and maintenance. Connector type TNC with cable mount and straight orientation. Impedance controlled at 50 Ω for optimal RF performance.
Operating frequency capability up to 6 GHz for high-frequency applications. Nickel body plating offers corrosion resistance. Beryllium copper contact with copper nickel gold alloy plating for durability. Reverse polarity design enhances application flexibility in WLAN systems.
Wide temperature operation from -65°C to 165°C ensures reliable performance. Crimp termination secures the connector on the cable firmly.
This product is ideal for use in electronic, telecommunications, industrial, and laboratory environments requiring durable, high-frequency coaxial connections. Its design ensures stable signal transmission and mechanical robustness for critical installations.
Explore more in our Coaxial Connector category to discover additional options suited for varied industrial and commercial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a maximum frequency of 6 GHz, making it suitable for high-frequency applications.
It is compatible with HPF 240, LMR-240, and RF 240 cable types, providing flexibility for various cabling needs.
The connector has an impedance rating of 50 Ω, ensuring optimal signal integrity in RF applications.
The contacts are made from beryllium copper and are plated with a copper nickel gold alloy for enhanced durability and performance.
It operates in a temperature range from -65°C to 165°C, allowing reliable performance in extreme conditions.
This model features a crimp termination type, which provides a robust and vibration-resistant connection.
The body is nickel-plated, offering corrosion resistance and longevity in demanding environments.
This connector has a straight body orientation, designed for cable mounting applications.
It features a reverse polarity design, which is particularly useful for specialized WLAN applications.
The connector is manufactured in Germany, ensuring adherence to high manufacturing standards.
This model has a male connector gender, suitable for various RF applications.
Yes, it is suitable for use in electronic, telecommunications, industrial, and laboratory environments requiring high-frequency coaxial connections.
