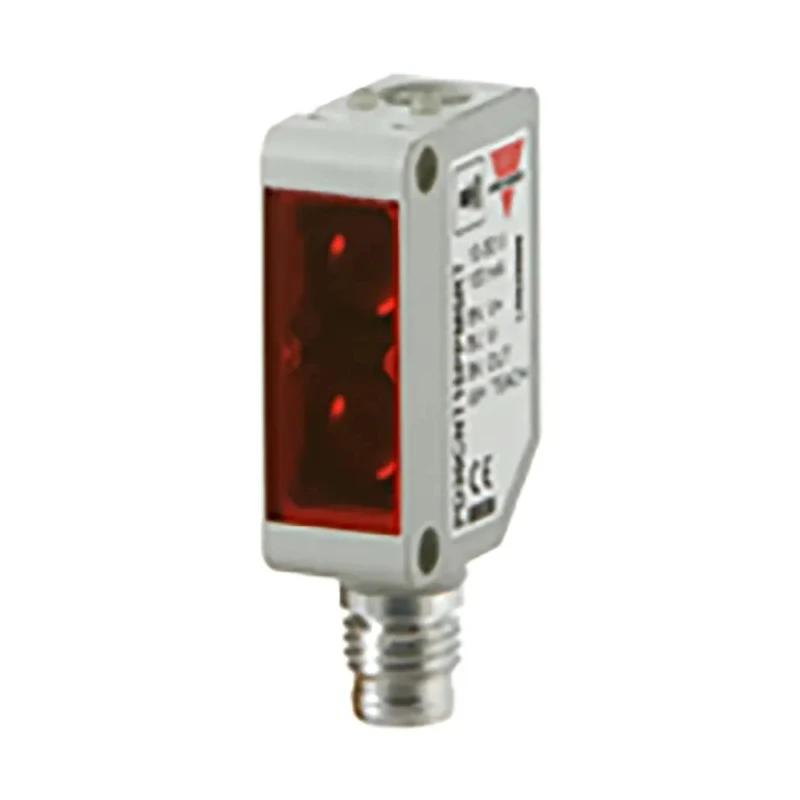

Carlo Gavazzi Retroreflective Miniature Photoelectric Sensor, 2 m Detection Range, PNP NO/NC Output, IP67

Carlo Gavazzi PD30CNG02PPM5RT is a retroreflective miniature photoelectric sensor designed for precise detection tasks in automation and industrial applications. This sensor features a compact 10 x 30 x 20 mm reinforced PMMA/ABS housing and provides excellent performance in detecting transparent objects with a detection range of 2 meters using a reflector.

The sensor utilizes a modulated red LED light source with a wavelength of 617 nm, ensuring accurate and reliable sensing under varying environmental conditions. It supports PNP NO/NC output configurations and includes programmable make and break switching functions. The preset output type (NPN or PNP) allows for versatile integration within control systems.

Sensitivity adjustment is facilitated through Teach-In programming and a remote teach feature, which enables easy setup from a PLC or other control devices. The sensor's electrical ratings include a maximum DC voltage of 30 V and a maximum output current of 100 mA. Connectivity is provided via an M8 connector.

Designed for industrial use, the sensor is built with an ABS housing material that ensures robustness and protection, rated at IP67 for dust and water resistance. Operating temperature range spans from -25°C to 55°C. It includes protection features against reverse polarity, short circuits, and transient voltages, contributing to reliable long-term operation. The sensor complies with CSA, IEC, and UL safety and quality standards.

This Photoelectric Sensor is suitable for various industrial, manufacturing, automation, and control applications requiring compact, accurate, and durable sensors. Its miniature size and flexible programming options make it ideal for integration into complex automation systems requiring non-contact object detection and transparency sensing.

Package or additional accessories are as per standard delivery. For more industrial automation solutions, explore the Electronics & Electricals Sensors category on EnvMart. Compact housing measuring 10 x 30 x 20 mm reinforced PMMA/ABS construction.

Retroreflective detection method with 2 m sensing range using reflector. Selectable PNP NO/NC output with programmable switching functions. Remote teach functionality for easy on-site adjustment and PLC compatibility. IP67 rated enclosure providing protection against dust and water ingress.

Operating temperature range between -25°C and 55°C for various environments. Maximum DC voltage rating of 30 V and output current up to 100 mA. Conforms to CSA, IEC, and UL standards ensuring safe and reliable operation.
