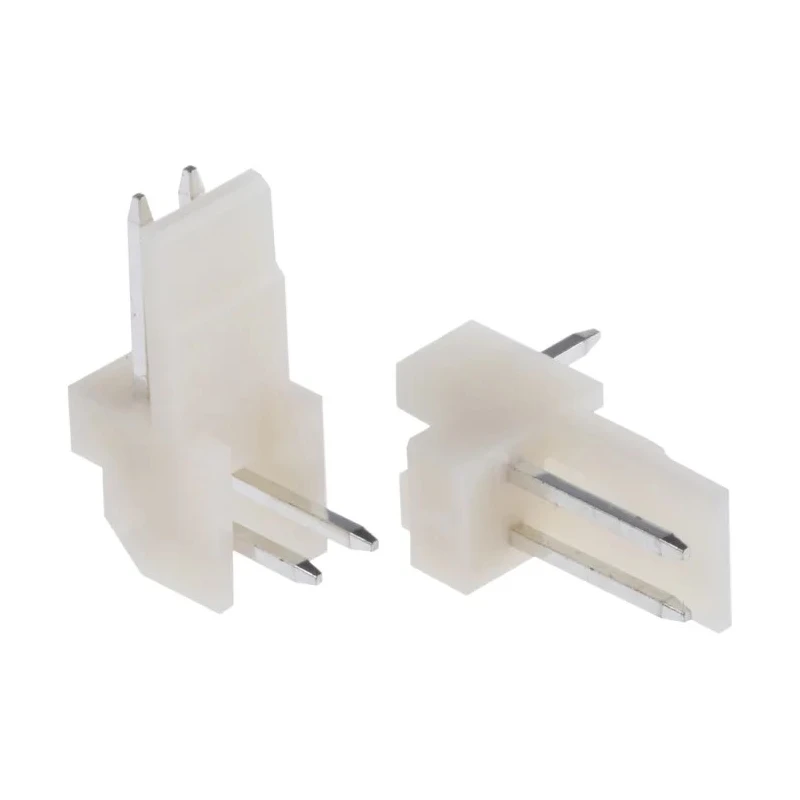

TE Connectivity EI Series Right Angle Through Hole PCB Header, 2 Contacts, 2.5 mm Pitch, 1 Row, Shrouded 171826-2

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity EI Series Right Angle Through Hole PCB Header, 2 Contacts, 2.5 mm Pitch, 1 Row, Shrouded 171826-2

Name: TE Connectivity EI Series Right Angle Through Hole PCB Header, 2 Contacts, 2.5 mm Pitch, 1 Row, Shrouded 171826-2
Brand: TE Connectivity
SKU: 218552
Price: 0.81 USD
Availability: InStock



Category PCB Header Brand TE Connectivity Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	TE Connectivity
Orientation	Right Angle
Current	2A
Model	171826-2
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	EI
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-65°C
Number of Rows	1
Pitch	2.5mm
Contact Plating	Tin
Number of Contacts	2
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Manufactured with durable nylon housing material rated UL 94V-0 for safety.
Designed for wire-to-board connections with right angle orientation and through hole mount.
Features brass contacts plated with tin for reliable conductivity.
Supports operating voltage up to 250V and current up to 2A.
Polarized locking latch ensures secure mating with receptacle connectors.
Operates reliably in temperatures from -65°C to 105°C.
Compact single row design with 2 contacts spaced at 2.5 mm pitch.
Suitable for industrial electronic assembly requiring high-density PCB connections.

Product Description

TE Connectivity 171826-2 PCB Header from the Economy Interconnection (EI) Series is a right angle, through hole connector designed for high-density wire-to-board interconnections. This model features 2 male contacts arranged in a single row with a pitch of 2.5 mm. The contacts are fabricated from brass and plated with tin to ensure excellent electrical conductivity and solderability.

The housing is made of UL 94V-0 rated 6/6 nylon, providing a robust and flame-retardant casing. The shrouded design includes a polarized locking latch, which guarantees a secure, vibration-resistant connection to mating PCB receptacles. This connector supports an operating voltage of up to 250 volts and can carry a maximum current of 2 amperes.

The connector operates reliably in harsh environmental conditions with a temperature range from -65°C minimum to 105°C maximum, making it suitable for use in industrial electronics, manufacturing, automation equipment, and other applications requiring dependable PCB connections.

The compact form factor and precise 2.5 mm row pitch help optimize PCB real estate while simplifying solder assembly with through hole mounting. Durable, UL 94V-0 rated nylon housing ensures safety and stability. Polarized locking latch prevents accidental disconnects.

Compatibility with industrial electronic and automation systems. Reliable electric performance with brass/tin plated contacts. Wide temperature operating range for robustness. Ideal for compact and high-density PCB designs.

Easy through hole solder mounting for assembly efficiency.

This TE Connectivity EI Series PCB Header is a quality connector solution in the electronics components category, designed for reliable interconnections in industrial, manufacturing, and electrical control applications. For more related products, browse the PCB Headers category on EnvMart.
