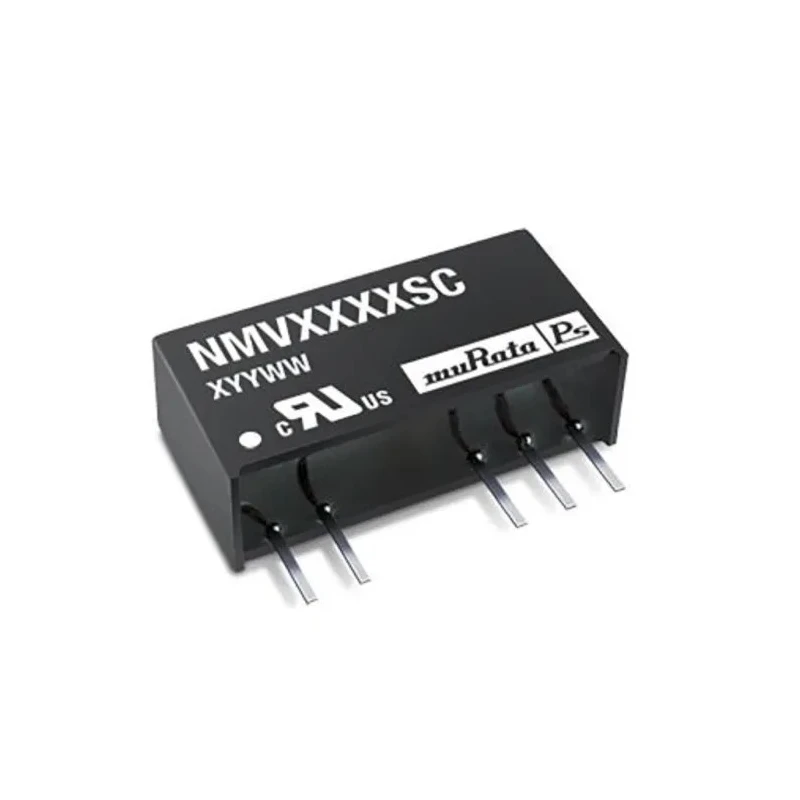

Murata Power Solutions Unregulated Isolated DC-DC Converter 5V DC Output, -5V DC Output, 100mA, 5.5V DC Max Input NMV0505SC
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions NMV DC/DC Converter, 5V dc |
| Brand | Murata Power Solutions |
| Efficiency | 71.5% |
| Length | 19.5mm |
| Model | NMV0505SC |
| Depth | 10mm |
| Gross Weight | 2.1g |
| Width | 19.5mm |
| Mount Type | Through Hole |
| Series | NMV |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 2 |
| Ripple and Noise | 17mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 5.5V dc |
| Standards/Approvals | UL 60950, RoHS |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 7 |
| Output Voltage 1 | 5, -5V dc |
| Output Current 1 | 100mA |
| Isolation Voltage | 3kV dc |
| NMV0505S unregulated DC-DC,+/-5V 1WBrand | Murata Power Solutions |
Key Features
- Features through hole SIP7 plastic package for easy PCB mounting.
- Operates with input voltage range of 4.5V to 5.5V DC ensuring stable power supply.
- Provides 3kV DC isolation for enhanced electrical safety.
- Compact dimensions of 19.5mm x 19.5mm x 10mm allowing space-saving PCB integration.
- High efficiency of 71.5% reduces energy loss during conversion.
- Ripple and noise of 17mV peak-to-peak ensures clean output.
- Wide operating temperature from -40°C to 85°C suitable for harsh environments.
- Compliant with UL 60950 and RoHS standards for quality and sustainability.
Product Description
Murata Power Solutions NMV0505SC is an unregulated isolated DC-DC converter providing dual output voltages of 5V DC and -5V DC with an output current of 100mA and maximum output power of 1 watt. Designed in a compact SIP7 plastic package suitable for through-hole mounting, it simplifies integration into electronic circuits.
The converter operates efficiently within an input voltage range of 4.5V to 5.5V DC, making it ideal for applications requiring reliable power conversion with minimal external components. Its dual outputs and electrical isolation of 3kV DC enhance safety and noise immunity in sensitive electronics.
Measuring 19.5 mm in length and width and 10 mm in depth, the NMV0505SC occupies minimal PCB space. The device boasts a conversion efficiency of 71.5%, resulting in reduced heat dissipation and improved system efficiency. Output ripple and noise are kept low at 17mV peak-to-peak, supporting stable operation in multiple industrial environments.
This DC-DC converter functions reliably over a temperature range from -40°C up to 85°C, suitable for industrial, telecommunications, instrumentation, and measurement applications. It is certified under UL 60950 and RoHS directives, ensuring compliance with international safety and environmental standards.
The lightweight unit weighing 2.1 grams facilitates its use in portable and compact systems. The NMV series from Murata Power Solutions represents a balance of reliability, compactness, and energy efficiency for power isolation and voltage conversion needs.
Features through hole SIP7 plastic package for easy PCB mounting. Operates with input voltage range of 4.5V to 5.5V DC ensuring stable power supply. Provides 3kV DC isolation for enhanced electrical safety. Compact dimensions of 19.5mm x 19.5mm x 10mm allowing space-saving PCB integration.
High efficiency of 71.5% reduces energy loss during conversion. Ripple and noise of 17mV peak-to-peak ensures clean output. Wide operating temperature from -40°C to 85°C suitable for harsh environments. Compliant with UL 60950 and RoHS standards for quality and sustainability.
Lightweight design weighing approximately 2.1 grams minimizes system weight. Explore the full range of DC/DC Converters and power solutions at EnvMart for your electronic component requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides dual output voltages of 5V DC and -5V DC.
The maximum input voltage for the NMV0505SC is 5.5V DC.
It has an efficiency rating of 71.5%, which helps reduce energy loss during conversion.
The converter measures 19.5mm in length, 19.5mm in width, and 10mm in depth.
The NMV0505SC provides an isolation voltage of 3kV DC, enhancing electrical safety.
It operates reliably within a temperature range of -40°C to 85°C.
The maximum output power is 1 watt, with an output current of 100mA.
This unit features a through-hole SIP7 plastic package for easy PCB mounting.
The output ripple and noise are specified at 17mV peak-to-peak.
It is compliant with UL 60950 and RoHS standards, ensuring safety and environmental sustainability.
The unit weighs approximately 2.1 grams, making it suitable for compact systems.
This model has two outputs, providing both 5V DC and -5V DC.
