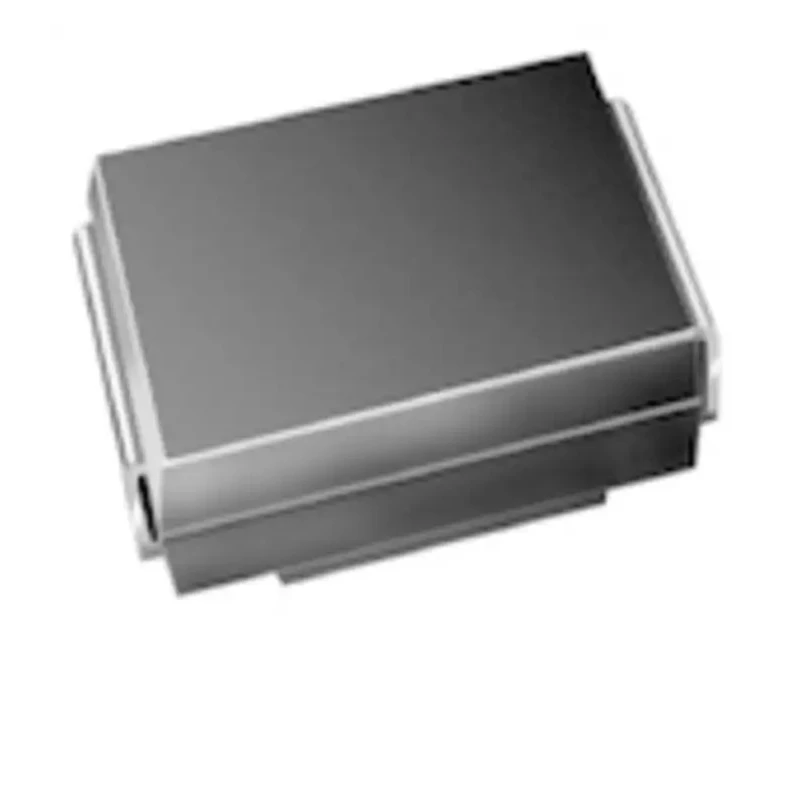

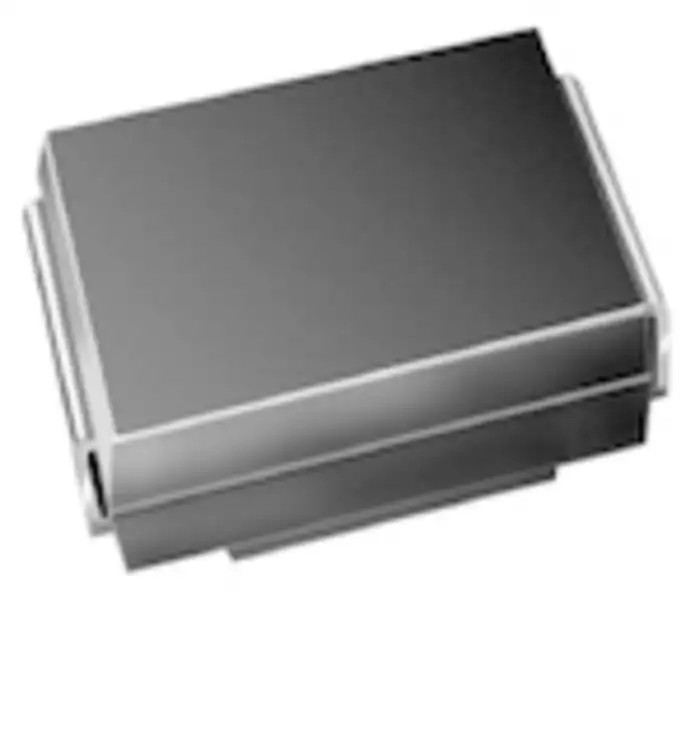

Vishay Bi-Directional TVS Diode 600 W Peak Pulse Power, 2-Pin DO-214 SMBJ7.5CD-M3/H

Free Delivery in India | Lowest Global Shipping Charges

Vishay Bi-Directional TVS Diode 600 W Peak Pulse Power, 2-Pin DO-214 SMBJ7.5CD-M3/H

Name: Vishay Bi-Directional TVS Diode 600 W Peak Pulse Power, 2-Pin DO-214 SMBJ7.5CD-M3/H
Brand: Vishay
SKU: 218225
Price: 0.23 USD
Availability: InStock



Category TVS Diode Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	2.24mm
Length	4.57mm
Model	SMBJ7.5CD-M3/H
Width	3.94mm
Mount Type	Surface
Series	TRANSZORB TVS
Maximum Operating Temperature	150°C
Package Type	DO-214
Minimum Operating Temperature	-55°C
Pin Count	2
Clamping Voltage VC	12.7V
Automotive Standard	AEC-Q101
Direction Type	Bi-Directional
Minimum Breakdown Voltage Vbr	8.46V
Maximum Reverse Stand-off Voltage Vwm	7.5V
Peak Pulse Power Dissipation Pppm	600W
Test Current It	1mA
Maximum Peak Pulse Current Ippm	47.2A
Maximum Reverse Leakage Current	75μA
± 3.5 %	very tight VBR tolerance

Key Features

The device offers very tight ±3.5% breakdown voltage tolerance for precision.
It features a low leakage current of 75 μA and excellent clamping capability at 12.7 V.
Operates efficiently within a temperature range of -55°C to 150°C.
Surface mount design suitable for automated PCB placement.
Provides ESD protection and is compliant with automotive AEC-Q101 standards.
It withstands a maximum peak pulse current of 47.2 A with low incremental surge resistance.
Compact dimensions measuring 4.57 mm length, 3.94 mm width, and 2.24 mm height.
Ideal for protecting sensitive electronic components in various industrial, automotive, and consumer electronics applications.

Product Description

Vishay SMBJ7.5CD-M3/H Bi-Directional TVS Diode is designed for transient voltage suppression with a peak pulse power capability of 600 W. Packaged in a compact 2-pin DO-214 surface mount format, it provides fast response to voltage transients, protecting sensitive electronic circuits from damage.

This device offers a very tight ±3.5% breakdown voltage tolerance at a minimum breakdown voltage of 8.46 V, ensuring precise operation. With a maximum reverse stand-off voltage of 7.5 V and a clamping voltage of 12.7 V, it efficiently safeguards components against voltage spikes.

The diode supports a temperature operating range from -55°C to 150°C, making it suitable for harsh environments including automotive and industrial electronics. ESD protection capability enhances its reliability in electronic systems.

Its small form factor and surface mount package allow for automated PCB assembly processes, aiding in streamlined manufacturing workflows. The maximum peak pulse current rating of 47.2 A ensures robust transient suppression during high energy surges.

Typical applications include protection of power supplies, communication equipment, and industrial control electronics, enhancing overall system resilience against voltage transients.

Bi-directional transient voltage suppression for reliable circuit protection. Surface mount DO-214 package suited for automated PCB assembly. Complies with automotive AEC-Q101 standard for automotive-grade quality. Low leakage current and sharp clamping characteristics reduce stress on protected components.

Compact size ideal for space-constrained electronic designs. High peak pulse power rating suitable for robust transient suppression. Operates over wide temperature ranges for versatile applications. Explore the comprehensive range of Vishay semiconductor protection devices at EnvMart for your electronic design needs.
