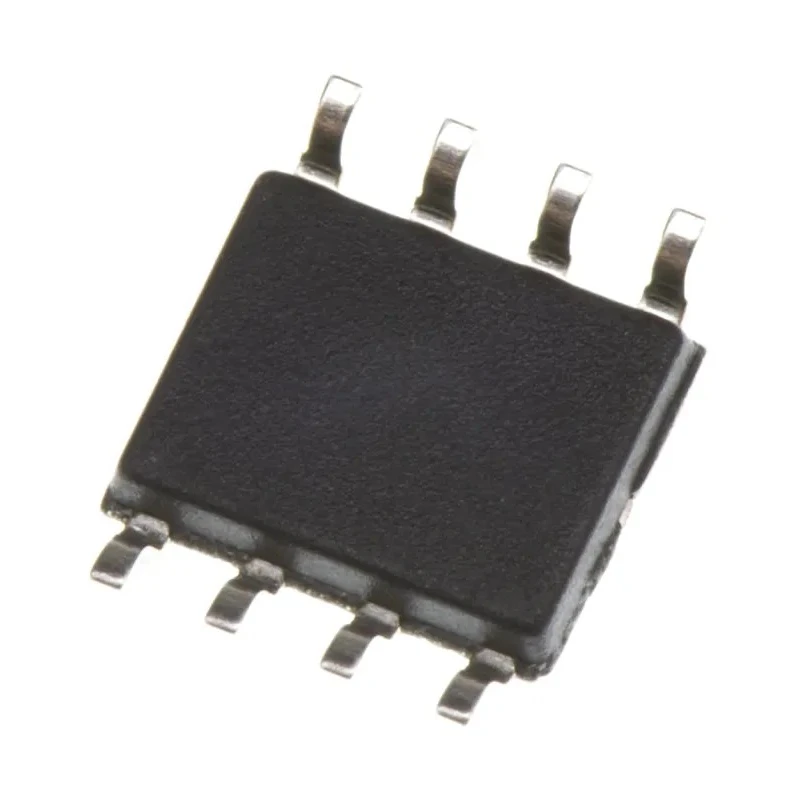

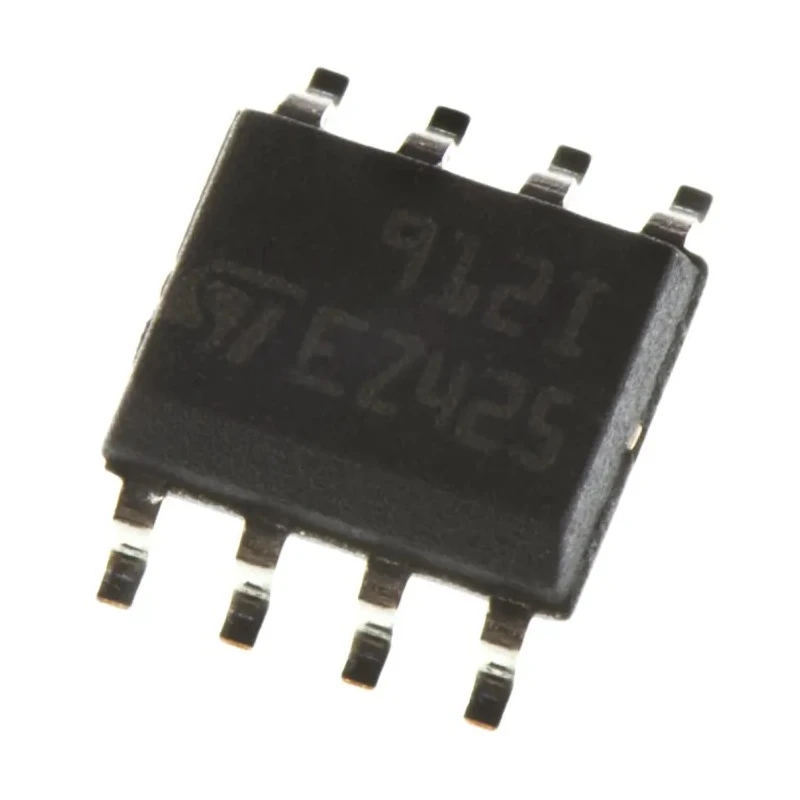

STMicroelectronics Operational Amplifier, 1 MHz Gain Bandwidth, 8-Pin SOIC, Dual Channel, 3V-16V TS912IDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.25mm |
| Length | 4.9mm |
| Model | TS912IDT |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | TS912 |
| Output Current | 40mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 16V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 300 pA |
| Vos - Input Offset Voltage | 12 mV |
| Slew Rate | 0.8V/μs |
| Low input offset voltage | 5 mV max. (A grade) |
| Input Offset Current | 200 pA |
| Low input bias current | 1 pA typical |
Key Features
- Features rail-to-rail input and output voltage ranges for improved linearity.
- Operates on a single or dual supply voltage from 2.7 V to 16 V.
- Low input bias current of typically 1 pA ensures minimal error in sensitive circuits.
- Input offset voltage max 5 mV for A grade enhances precision.
- Supports loads of 600 Ω and 100 Ω, suitable for various output stages.
- Surface mount SOIC package with compact dimensions of 4.9 mm length and 3.9 mm width.
- AEC-Q100 automotive standard qualified for reliable performance in automotive applications.
- Operating temperature range from -40°C to 125°C for robustness in harsh environments.
Product Description
STMicroelectronics TS912IDT is a high-performance dual channel operational amplifier optimized for low power consumption and precision applications. It offers a gain bandwidth product of 1 MHz and features rail-to-rail input and output voltage operation, allowing maximum dynamic range in analog signal processing.
This device supports single-supply or dual-supply operation ranging from 2.7 V to 16 V, making it adaptable for various industrial, automotive, and consumer electronics uses. The low input bias current (typically 1 pA) and low input offset voltage (maximum 5 mV for A grade) minimize signal errors, supporting sensitive measurement and control circuits.
Packaged in a compact 8-pin SOIC surface mount form factor, the TS912IDT is designed to fit space-constrained PCB layouts. Its mechanical dimensions include a height of 1.25 mm, length of 4.9 mm, and width of 3.9 mm, enabling integration into modern electronics assemblies.
The device is qualified to meet AEC-Q100 automotive standards, ensuring reliability and robustness in automotive and industrial environments operating between -40°C and 125°C. An output current capability of 40 mA allows driving diverse loads effectively.
Rail-to-rail input and output voltage ranges ensure maximum signal swing. Single or dual supply operation from 2.7 V to 16 V offers design flexibility. Low input bias current and offset voltage improve circuit precision.
Compact, surface-mount SOIC package suits dense board designs. AEC-Q100 qualification meets automotive quality and reliability standards. Wide operating temperature range from -40°C to 125°C supports industrial applications.
Output current capability of 40 mA supports various load requirements.
Typical applications include signal conditioning, sensor interfaces, medical instrumentation, and automotive electronic controls. The TS912IDT operational amplifier is an essential component for engineers designing reliable and efficient analog front-ends.
Explore more Operational Amplifiers and semiconductor devices on EnvMart to find components tailored for your electronic design needs.
