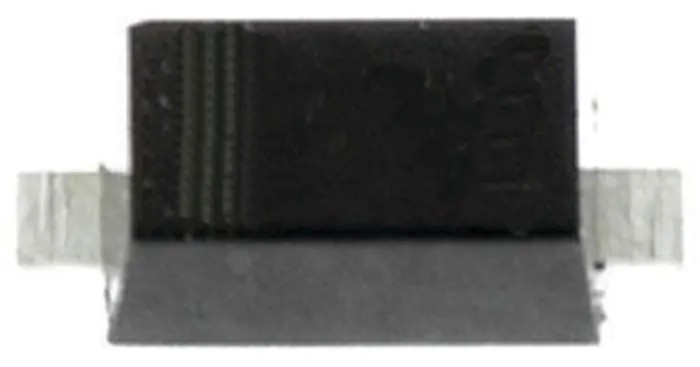

Vishay Zener Diode 39 V 800 mW Surface Mount 2-Pin DO-219AB BZD27C39P-E3-18

Free Delivery in India | Lowest Global Shipping Charges

Vishay Zener Diode 39 V 800 mW Surface Mount 2-Pin DO-219AB BZD27C39P-E3-18

Name: Vishay Zener Diode 39 V 800 mW Surface Mount 2-Pin DO-219AB BZD27C39P-E3-18
Brand: Vishay
SKU: 218031
Price: 0.2 USD
Availability: InStock



Category Zener Diodes Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	1.08mm
Length	3.9mm
Model	BZD27C39P-E3-18
Mount Type	Surface
Series	BZD27C
Maximum Operating Temperature	150°C
Package Type	DO-219AB
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	800mW
Diode Configuration	Single
Test Current It	10mA
Maximum Reverse Leakage Current	1μA
Nominal Zener Voltage Vz	39V
Maximum Zener Impedance	40Ω

Key Features

Features a 5% Zener voltage tolerance ensuring precise voltage regulation.
Designed for surface mounting with a compact 2-pin DO-219AB package.
Maximum operating temperature of 150°C suitable for demanding electronic applications.
Low maximum reverse leakage current of 1μA contributes to efficient performance.
Supports a test current of 10mA for standardized performance verification.
Complies with RoHS standards and meets automotive AEC-Q101 qualification.
Typical voltage temperature coefficient of 0.09%/°C allows stable operation under varying temperatures.

Product Description

Vishay BZD27C39P-E3-18 is a high-quality Zener diode engineered for voltage regulation in various electronic circuits. This single-element Zener diode has a nominal Zener voltage of 39 volts and can dissipate up to 800 milliwatts of power, making it suitable for precision voltage stabilization applications.

Encapsulated in a surface mount DO-219AB package with 2 pins, it facilitates efficient PCB assembly and compact circuit designs, ideal for modern electronics manufacturing.

The device supports a maximum operating temperature of 150°C and a minimum of -55°C, allowing for reliable use in harsh industrial, automotive, and consumer electronics environments. Its maximum reverse leakage current is limited to 1 microampere, ensuring minimal power loss.

Tested at 10 mA test current, the diode maintains stable performance with a maximum Zener impedance of 40 ohms, enhancing circuit reliability. The typical voltage temperature coefficient is 0.09%/°C, providing stable voltage regulation even with temperature fluctuations.

This component complies with RoHS environmental standards and carries the automotive-grade AEC-Q101 certification, making it suitable for automotive electrical systems and other safety-critical applications.

With compact dimensions of 3.9 mm length and 1.08 mm height, the diode is ideal for high-density printed circuit boards in industrial, automotive, and consumer electronics manufacturing sectors.

Features a 5% tolerance on Zener voltage for precision regulation. Compact surface mount design simplifies automated assembly processes. High temperature tolerance for demanding operating conditions. Low reverse leakage current enhances efficiency and longevity.

Meets industry RoHS and automotive AEC-Q101 standards for quality and reliability. Voltage temperature coefficient supports stable operation across temperature ranges. Small footprint benefits space-conscious electronic designs.

Single element diode ensures focused voltage regulation performance.

This Vishay Zener diode BZD27C39P-E3-18 is an essential component for electronics engineers designing voltage stabilization circuits across manufacturing, laboratory, automotive, and industrial control systems. Its robust specifications align perfectly with applications demanding precision, reliability, and compliance to automotive and environmental standards. Explore additional Zener Diodes and semiconductor components in the Electronics & Electricals category to find suitable complements for your electronics projects at EnvMart.
