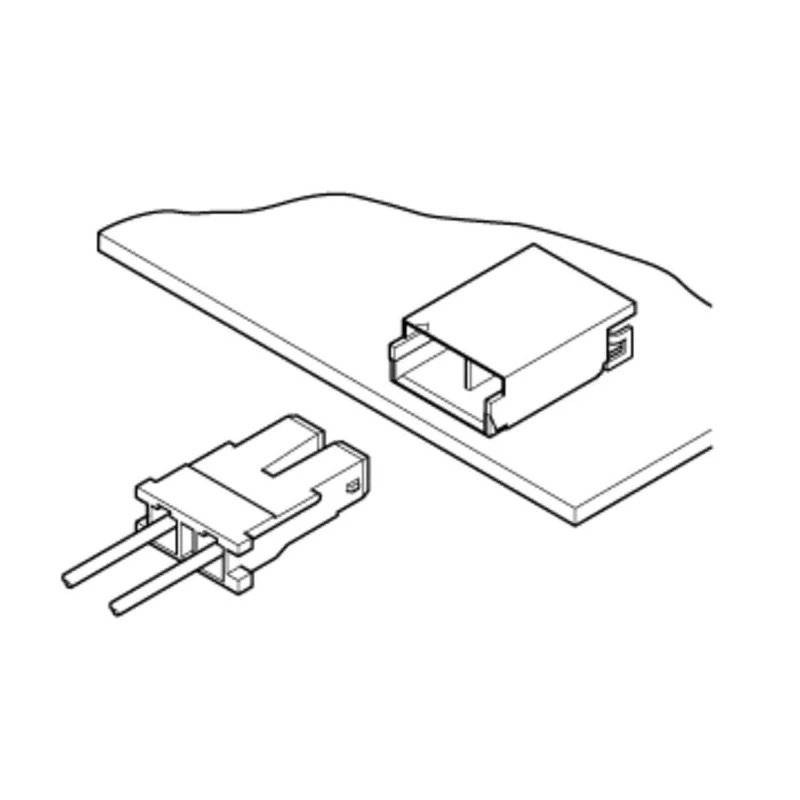

JST SBHS Series Female Crimp Terminal 28 AWG Min Crimp, 24 AWG Max, 1A Current, Tin Plated Phosphor Bronze SBHS-002T-P0.5A

Free Delivery in India | Lowest Global Shipping Charges

JST SBHS Series Female Crimp Terminal 28 AWG Min Crimp, 24 AWG Max, 1A Current, Tin Plated Phosphor Bronze SBHS-002T-P0.5A



Category Crimp Terminal Brand JST Condition New

Specifications

Country of Origin	India
Brand	JST
Current	1A
Model	SBHS-002T-P0.5A
Gender	Female
Contact Material	Phosphor Bronze
Series	SBHS
Termination Type	Crimp
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
For Use With	BD and BHS Connector Housings
Contact Plating	Tin
Minimum Wire Size mm²	0.08mm²
Maximum Wire Size mm²	0.22mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	24AWG
Maximum Contact Resistance	20mΩ

Key Features

Rated to carry a current of 1 ampere safely.
Contact made of phosphor bronze material with tin plating for corrosion resistance.
Designed for operation within temperatures ranging from -25°C to 85°C.
Termination type is crimp, ensuring secure wire attachment.
Suitable for low profile connections such as LCD backlight lamps.
Maximum contact resistance is 20 milliohms, ensuring reliable connectivity.
Compatible with SBHS series connectors providing high voltage withstanding capabilities.

Product Description

The JST SBHS-002T-P0.5A is a female crimp terminal designed for use with BD and BHS connector housings. It supports a minimum wire size of 28 AWG and a maximum of 24 AWG, ideal for precise and compact electronic connections. The Crimp Terminal is rated for a current of 1 ampere and features a phosphor bronze contact with tin plating, enhancing durability and conductivity.

Operating temperature ranges from -25°C to 85°C, making it suitable for a wide range of industrial and electronic applications including LCD backlight lamp connections and other low profile connector requirements. The termination method used is crimp, ensuring a reliable and firm attachment to the wire.

This terminal offers a maximum contact resistance of 20 milliohms, which supports efficient electrical conductivity and minimizes power loss. The JST SBHS series is known for its robust performance and high voltage withstanding characteristics, making this terminal well-suited for electronic component manufacturing, laboratory instruments, and industrial automation systems requiring dependable connector solutions.

Rated for 1 ampere current with phosphor bronze contact material. Crimp termination type for secure wiring. Wire size range from 28 AWG to 24 AWG supported. Operating temperature from -25°C to 85°C for versatile environments.

Tin plated contact provides corrosion resistance. Maximum contact resistance is 20 milliohms ensuring reliability. Compatible with BD and BHS connector housings in the SBHS series.

This product is ideal for applications in industrial electronics, manufacturing, water treatment, HVAC controls, and other settings where compact and reliable wire-to-connector connections are essential. Explore related JST connectors and components in the Electronics Components category at EnvMart.
