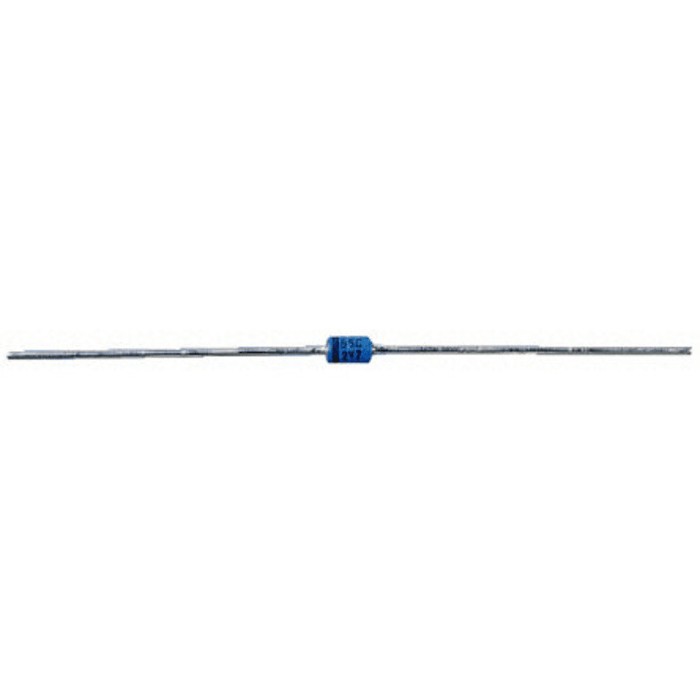

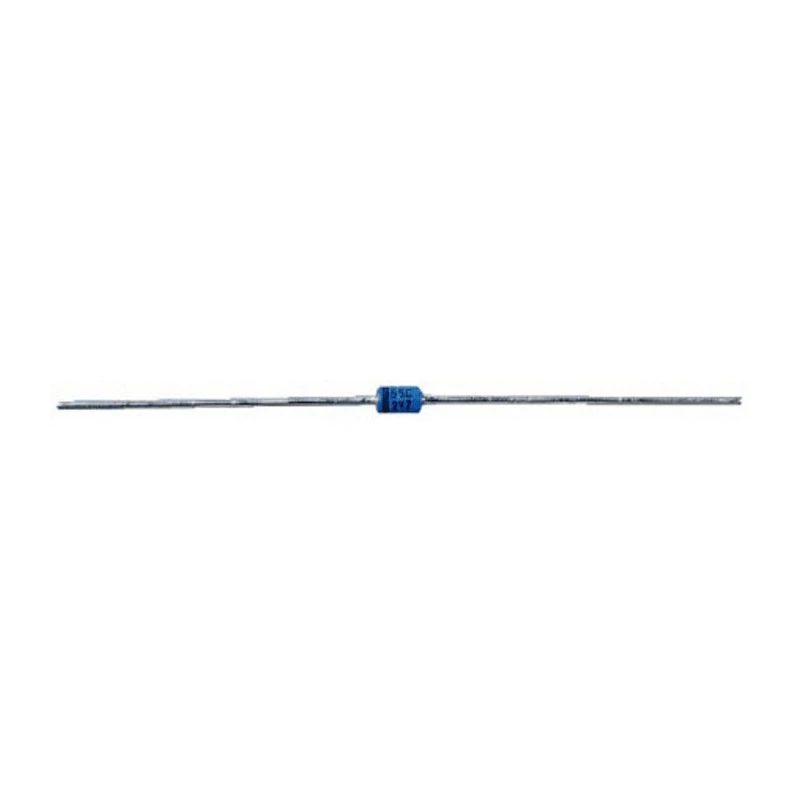

Vishay Zener Diode 20 V, Single Element, 1.3 W Power Dissipation, Through Hole 2-Pin DO-41 Package BZX85C20-TAP

Free Delivery in India | Lowest Global Shipping Charges

Vishay Zener Diode 20 V, Single Element, 1.3 W Power Dissipation, Through Hole 2-Pin DO-41 Package BZX85C20-TAP

Name: Vishay Zener Diode 20 V, Single Element, 1.3 W Power Dissipation, Through Hole 2-Pin DO-41 Package BZX85C20-TAP
Brand: Vishay
SKU: 217686
Price: 0.08 USD
Availability: InStock



Category Zener Diodes Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	2.6mm
Length	4.1mm
Model	BZX85C20-TAP
Mount Type	Through Hole
Series	BZX85
Maximum Operating Temperature	175°C
Package Type	DO-41
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	1.3W
Diode Configuration	Single
Test Current It	10mA
Maximum Reverse Leakage Current	500nA
Nominal Zener Voltage Vz	20V
Zener Type	Voltage Regulator
Maximum Zener Impedance	24Ω

Key Features

The diode is configured for single element operation ensuring focused voltage regulation.
It supports a nominal Zener voltage of 20 V with ±6% tolerance.
Maximum power dissipation is rated at 1.3 W for stable operation.
The device has a maximum Zener impedance of 24 Ω and a test current of 10 mA.
Operating temperature ranges from -55°C to 175°C, suitable for various environmental conditions.
The diode package type is DO-41, optimized for through hole mounting.
This product has two pins facilitating straightforward PCB integration.
Maximum reverse leakage current is limited to 500 nA minimizing leakage losses.

Product Description

Vishay BZX85C20-TAP Zener Diode is a silicon planar power diode designed to provide voltage regulation in electronic circuits, delivering a nominal Zener voltage of 20 V with a power dissipation capacity of 1.3 W. Encapsulated in a robust DO-41 through hole package with a 2-pin configuration, it is engineered for seamless mounting on printed circuit boards.

This diode operates effectively within a temperature range of -55°C to 175°C, ensuring stable performance in diverse industrial, laboratory, and commercial applications. With a maximum Zener impedance of 24 Ω and a minimal maximum reverse leakage current of 500 nA, it guarantees precision voltage regulation and energy efficiency.

The test current is specified at 10 mA, optimizing conduction without overheating.

The diode configuration supports single elements per chip, simplifying circuit design and enhancing operational durability in industrial automation, electronic device manufacturing, and power supply regulation.

Single element diode configuration for precise voltage regulation. Nominal Zener voltage tolerance of ±6% supports stable output voltage. Maximum power dissipation of 1.3 W ensures high power handling capability. Compact DO-41 through hole package for durable mounting.

Wide operating temperature range enables usage in harsh conditions. Low reverse leakage current minimizes energy loss. Optimized impedance reduces voltage fluctuations in circuits. Suitable for voltage stabilization and clipping circuit applications.

Reliable semiconductor diode by Vishay backed by proven quality standards. Industry applications include electronics manufacturing, instrumentation, and power regulation systems.

For engineers and technicians seeking dependable Zener Diodes for robust voltage regulation tasks, the Vishay BZX85C20-TAP offers a proven solution. This product is ideal for integration into power supplies, electronic controllers, and protective circuits in industrial, laboratory, and commercial environments.

Explore more Vishay semiconductor components and related electronic supplies on EnvMart for comprehensive product selections that match your technical specifications and project requirements.
