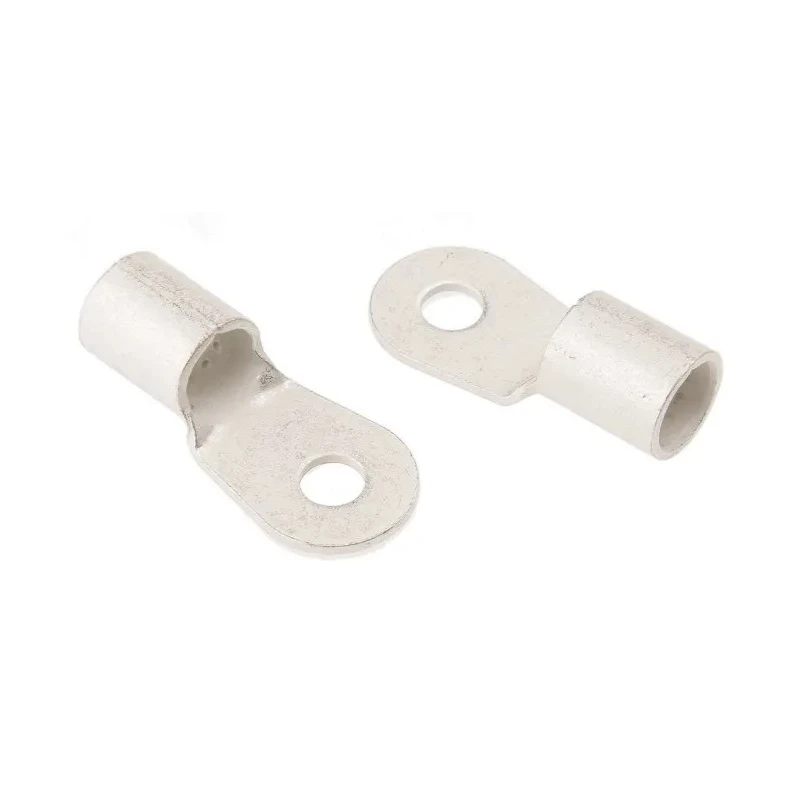

TE Connectivity Solistrand Uninsulated Ring Terminal M8 Stud Size 1 AWG Wire Size 36916
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| THICKNESS | 1.78mm |
| Model | 36916 |
| Insulation | Uninsulated |
| Overall Length | 49.68mm |
| Contact Material | Copper |
| Series | Solistrand |
| Maximum Operating Temperature | 170°C |
| Standards/Approvals | RoHS, ANSI/ESD S20.20:2021 Electrostatic Control Standard |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 50mm² |
| Minimum Wire Size AWG | 1AWG |
| Outer Ring Diameter | 22.23mm |
| Inner Ring Diameter | 8.33mm |
| Stud Size | M8 |
| Standards/ApprovalsRoHS, ANSI/ESD S20.20 | 2021 Electrostatic Control Standard |
Key Features
- Constructed of fine grade high conductivity copper for optimal electrical performance.
- Electro tin plating provides improved resistance to corrosion.
- Robust design suitable for harsh industrial environments.
- Brazed seams enhance barrel strength and durability.
- Dimpled and serrated barrel increases electrical contact and tensile strength.
- Bell shaped barrel mouth facilitates quick and easy wire insertion.
- Supports M8 stud size and 1 AWG wire size with 22.23mm outer ring diameter.
- Maximum operating temperature of 170°C for standard applications.
Product Description
TE Connectivity 36916 Solistrand Uninsulated Ring Terminal offers superior electrical and mechanical performance for a wide range of industrial applications. Constructed from fine grade copper and electro tin plated for corrosion resistance, this ring terminal ensures optimal conductivity and long service life.
The robust design includes brazed seams and a bell-shaped barrel for enhanced mechanical strength and reduced installation time. The dimpled and serrated inner barrel improves tensile strength and electrical contact after crimping. This terminal supports M8 stud sizes with a maximum wire size of 1 AWG (50 mm²), featuring an outer ring diameter of 22.23 mm and overall length of 49.68 mm.
Rated for a maximum operating temperature of 170°C, it complies with RoHS regulations and ANSI/ESD S20.20:2021 Electrostatic Control Standard, making it suitable for demanding industrial environmental conditions. Typical applications include materials handling equipment, motors, heavy machinery, transformers, switchgear, telecommunications, appliances, panel boxes, power supplies, and instrumentation controls.
Constructed of fine grade high conductivity copper for optimal electrical performance. Electro tin plating provides improved resistance to corrosion. Robust design suitable for harsh industrial environments. Brazed seams enhance barrel strength and durability.
Dimpled and serrated barrel increases electrical contact and tensile strength. Bell shaped barrel mouth facilitates quick and easy wire insertion. Supports M8 stud size and 1 AWG wire size with 22.23mm outer ring diameter.
Maximum operating temperature of 170°C for standard applications. Compliant with RoHS and ANSI/ESD S20.20:2021 Electrostatic Control Standard.
TE Connectivity Solistrand terminals and splices are designed to meet the needs of electrical and power systems with reliability and efficiency. This Ring Terminal is ideal for industrial, manufacturing, telecommunications, and electrical maintenance professionals seeking durable and high-performance wiring components.
Explore more TE Connectivity products and technical solutions on EnvMart for your wire terminal and splice requirements.
