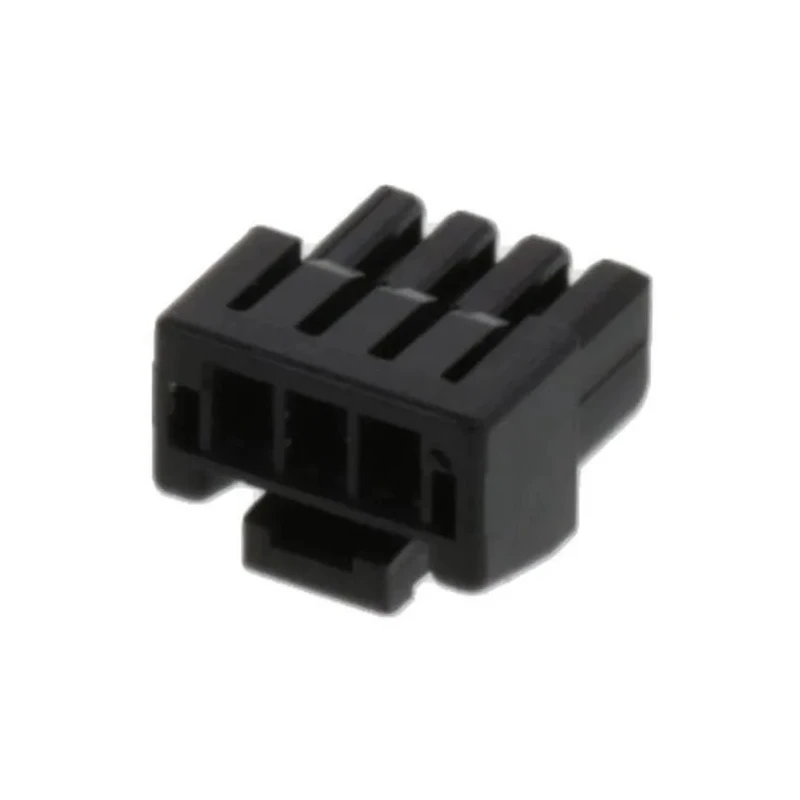

Molex Micro-Lock Plus Female Connector Housing 1.25 mm Pitch 3 Contacts 1 Row Straight 505565-0301
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 5.75mm |
| Width | 6.1mm |
| Mount Type | Cable |
| Housing Material | Polyester |
| Series | Micro-Lock Plus |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| For Use With | 505431 Micro-Lock PLUS Terminal |
| Number of Contacts | 3 |
| Connector Gender | Female |
Key Features
- Compact 1.25 mm pitch housing suitable for signal and low power applications.
- Features a positive lock mechanism to secure connections firmly.
- Constructed from durable polyester (PBT) material for thermal and chemical resistance.
- Compatible with Micro-Lock PLUS terminals for versatile use.
- Designed for temperatures ranging from -40°C to +105°C ensuring reliability in harsh environments.
- Polarized design prevents incorrect mating to enhance safety and reliability.
- Measures 5.75 mm length and 6.1 mm width for space-efficient installations.
- Ideal for automation, electronics, and mechanical device applications requiring secure connectors.
Product Description
Molex 505565-0301 Micro-Lock Plus Female Connector Housing is a compact and durable 3-contact connector housing featuring a 1.25 mm pitch and a single-row straight orientation designed for cable mounting. Made from high-quality polyester (PBT), this housing ensures excellent thermal stability and chemical resistance, making it suitable for demanding industrial and electronic applications.
The connector is part of the Micro-Lock PLUS wire-to-board connector system, offering reliable signal transmission and robust electrical connections. Its positive lock mechanism provides enhanced security by preventing accidental disconnections during operation. The polarized design further aids in preventing incorrect mating with incompatible connectors, thus enhancing system reliability.
With a length of 5.75 mm and a width of 6.1 mm, this housing is compact and ideal for space-limited environments such as automation equipment, electronic instruments, and mechanical devices. It supports operational temperatures from -40°C to +105°C, ensuring stable performance in various environmental conditions.
This connector housing is compatible with the Micro-Lock PLUS terminal 505431, making it versatile for various wiring configurations. It is suitable for signal applications and is widely used in industrial automation, manufacturing controls, and electronic device assemblies where secure and reliable wire connections are crucial.
Compact 1.25 mm pitch female connector housing with 3 contacts in one row. Positive lock mechanism for secure connections preventing accidental disconnections. Durable polyester (PBT) construction provides thermal and chemical stability.
Polarized design ensures correct mating and prevents misconnection. Temperature range -40°C to +105°C supports harsh environments. Compatible with Micro-Lock PLUS terminal, suitable for signal and control wiring. Compact dimensions ideal for tight installation spaces in industrial applications.
This Connector Housing from Molex is an essential component for ensuring reliable wire-to-board connections in industrial, laboratory, commercial, and manufacturing applications. For quality connectors designed with durability and performance in mind, explore Molex and Micro-Lock Plus series products on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch size of this connector housing is 1.25 mm.
This housing features 3 contacts.
It supports an operating temperature range from -40°C to +105°C.
The connector housing is constructed from polyester (PBT), which provides thermal and chemical resistance.
This model supports cable mounting.
Yes, it features a polarized design to prevent incorrect mating with incompatible connectors.
The housing measures 5.75 mm in length and 6.1 mm in width.
It is compatible with the Micro-Lock PLUS terminal 505431.
It is suitable for signal applications in industrial automation, manufacturing controls, and electronic device assemblies.
The orientation of this housing is straight.
The positive lock mechanism secures connections firmly, preventing accidental disconnections during operation.
The country of origin for this connector housing is Japan.
