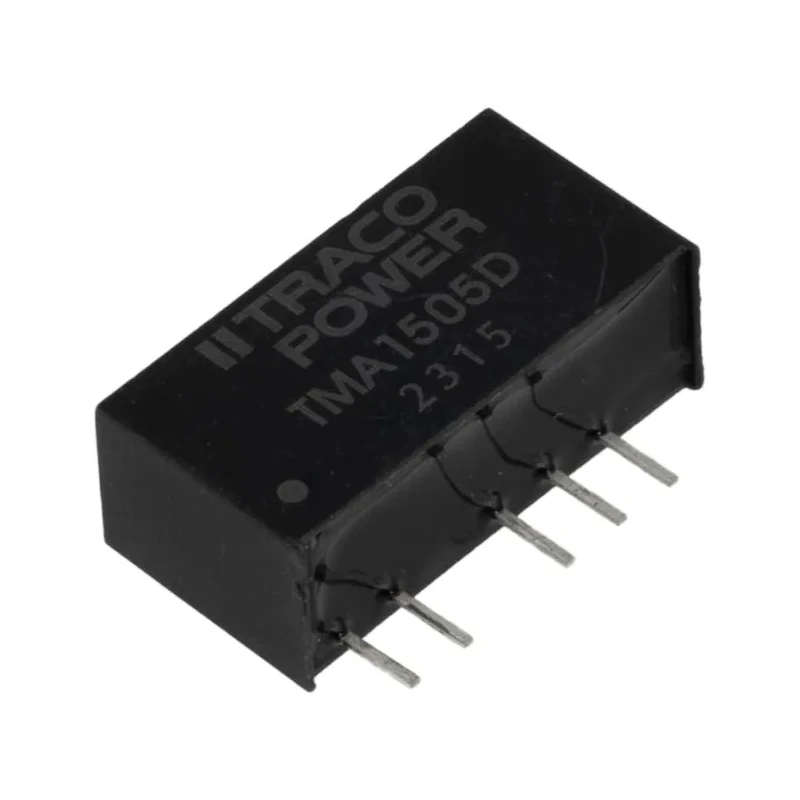

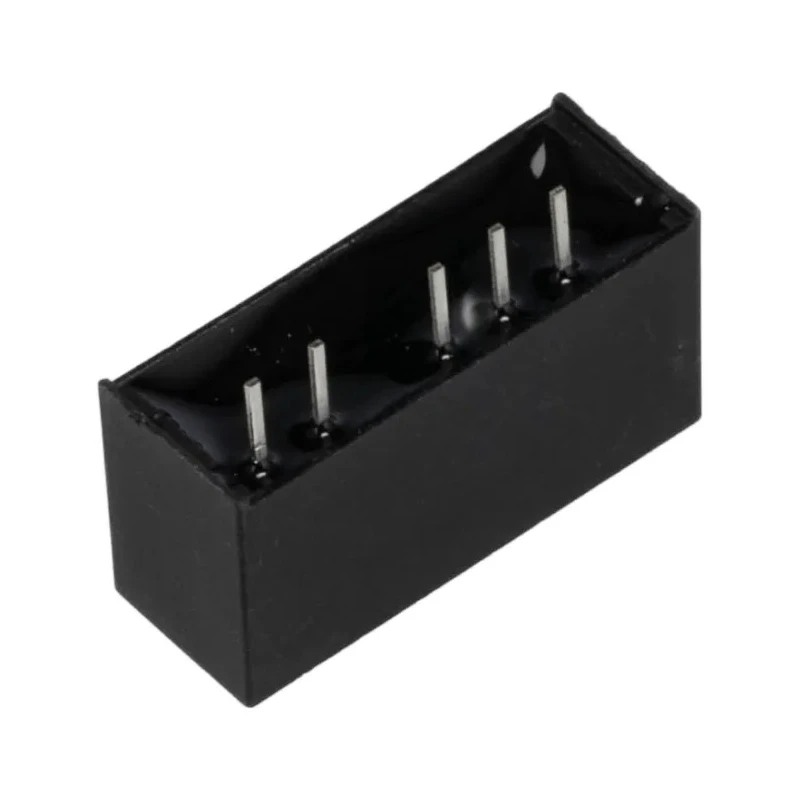

TRACOPOWER 1W SIP Single/Dual Output Isolated DC-DC Converter, 5V DC / 100mA, 16.5V DC Input, Through Hole, 74% TMA 1505D

Free Delivery in India | Lowest Global Shipping Charges

TRACOPOWER 1W SIP Single/Dual Output Isolated DC-DC Converter, 5V DC / 100mA, 16.5V DC Input, Through Hole, 74% TMA 1505D

Name: TRACOPOWER 1W SIP Single/Dual Output Isolated DC-DC Converter, 5V DC / 100mA, 16.5V DC Input, Through Hole, 74% TMA 1505D
Brand: TRACOPOWER
SKU: 216923
Price: 7.28 USD
Availability: InStock



Category DC-DC Converter Brand TRACOPOWER Condition New

Specifications

Country of Origin	Taiwan
Voltage	Converters / DC-DC Converters TRACOPOWER TMA DC/DC Converter, 5V dc/ 100 mA, 16
Brand	TRACOPOWER
Efficiency	74%
Length	19.5mm
Model	TMA 1505D
Depth	10.2mm
Mount Type	Through Hole
Series	TMA
Maximum Operating Temperature	85°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
MTBF	5000000h
Number of outputs	2
Maximum Output Power	1W
Maximum Input Voltage	16.5V dc
Minimum Input Voltage	13.5V
Number of Pins	6
Output Voltage 1	5V dc
Output Current 1	100mA
Isolation Voltage	1kV dc
Output Voltage 2	-5V dc

Key Features

This converter operates within an input voltage range of 13.5V to 16.5V dc.
It features a through-hole mount design for easy installation on PCBs.
The device supports dual output with isolation voltage of 1kV dc.
It offers an efficiency of approximately 74% and a MTBF of 5,000,000 hours.
The operating temperature range spans from -40°C to +85°C, suitable for industrial environments.
The package is compact with dimensions 19.5mm length and 10.2mm depth.
The converter is RoHS compliant and lead-free with a standard industry pinout.

Product Description

TRACOPOWER TMA 1505D is a 1 Watt SIP single/dual output isolated DC-DC Converter designed for space-critical and industrial power distribution applications. It provides a stable 5V DC output at 100mA current from input voltages between 13.5V and 16.5V DC. The device is encapsulated in a durable surface-mount through-hole SIP package measuring 19.5mm in length and 10.2mm in depth.

Featuring a dual output option with an isolation voltage of 1kV DC, the TMA 1505D ensures safe operation in electrically noisy environments. Its efficiency of 74% contributes to energy savings and reduced thermal dissipation. The converter's high reliability is underpinned by a Mean Time Between Failures (MTBF) rating of 5 million hours, confirming its suitability for long-term industrial deployment.

Operating temperature range from -40°C to +85°C allows this module to function reliably in harsh industrial, telecommunications, and instrumentation environments. Its single inline package (SIP) design simplifies integration into compact PCB layouts, optimizing board space usage.

The product is compliant with lead-free RoHS standards and features an industry-standard pinout, facilitating easy replacement or design incorporation. This converter is ideal for industrial tools, laboratory instrumentation, communications equipment, and embedded systems requiring isolated DC power conversion.

This product features a through-hole mount for secure mechanical and electrical connections. Compact size enables use in space-constrained applications. Robust isolated output increases noise immunity and system safety. Efficient conversion reduces heat generation.

Wide temperature range supports demanding industrial conditions. High MTBF guarantees dependable continuous operation.

Choose TRACOPOWER TMA 1505D for high-performance, compact isolated DC power conversion. Explore more converters and power solutions from TRACOPOWER in the Electronics & Electricals category at EnvMart.
