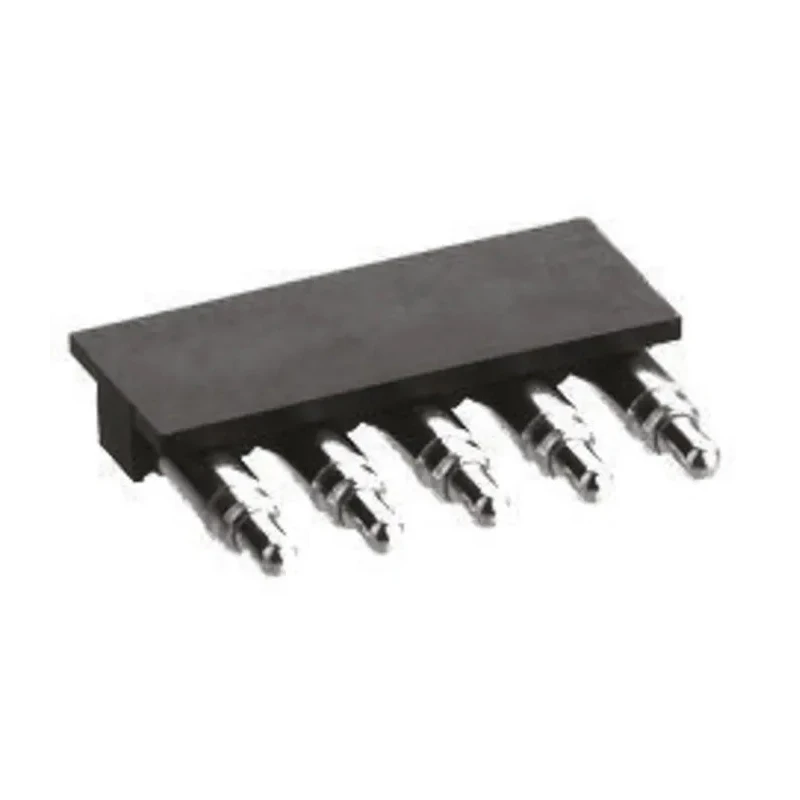

Preci-Dip 8PM Series Right Angle Surface Spring Loaded Connector, 5 Contacts, 2.54 mm Pitch, 1 Row 8PM-11-0005-02-168

Free Delivery in India | Lowest Global Shipping Charges

Preci-Dip 8PM Series Right Angle Surface Spring Loaded Connector, 5 Contacts, 2.54 mm Pitch, 1 Row 8PM-11-0005-02-168

Name: Preci-Dip 8PM Series Right Angle Surface Spring Loaded Connector, 5 Contacts, 2.54 mm Pitch, 1 Row 8PM-11-0005-02-168
Brand: Preci-Dip
SKU: 215605
Price: 9.27 USD
Availability: InStock



Category PCB Connectors Brand Preci-Dip Condition New

Specifications

Country of Origin	Switzerland
Voltage	150V
Brand	Preci-Dip
Orientation	Right Angle
Current	3A
Model	8PM-11-0005-02-168
Mount Type	Surface
Housing Material	Fibreglass Reinforced Polyethylene Terephthalate
Contact Material	Brass
Series	8PM
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	5
Contact Gender	Male
Shrouded/Unshrouded	Shrouded

Key Features

Implements spring-loaded contacts for reliable low-resistance connections.
Designed with 5 male brass contacts plated with gold.
Features a fibreglass reinforced polyethylene terephthalate housing.
Operates within a temperature range of -55°C to 125°C.
Supports a maximum voltage of 150V and current of 3A.
Right angle orientation with surface mount type allows easy PCB integration.
Shrouded construction provides protection and ensures secure mating.
Suitable for pick and place machinery owing to parallel surface mount pads.

Product Description

Preci-Dip 8PM-11-0005-02-168 is a high-quality spring-loaded connector from the renowned 8PM series. This right angle surface-mount connector features 5 male contacts with a precise 2.54 mm pitch, arranged in a single row, making it ideal for compact PCB designs requiring reliable electrical connections.

The connector's spring-loaded contacts ensure a low and stable electrical resistance, even under vibration or movement, thereby maintaining maximum connection reliability. Constructed with a fibreglass reinforced polyethylene terephthalate housing paired with gold-plated brass contacts, it combines durability with excellent conductivity.

Operating temperature range spans from -55°C to 125°C, supporting a voltage of up to 150V and a current capacity of 3A. Its shrouded design protects contacts and improves mating security, while the surface mount configuration enables compatibility with automated pick and place assembly processes.

This connector is well-suited for industrial, electronics manufacturing, telecommunications, and precision equipment applications where stable, low-resistance connections are critical. Manufacturers and designers benefit from its Swiss quality and UL 94V-0 rated materials for flame retardancy.

Spring-loaded contacts provide low-resistance and stable electrical connections. Gold-plated brass contacts ensure high conductivity and corrosion resistance. Fibreglass reinforced polyethylene terephthalate housing offers mechanical strength.

Wide operating temperature range from -55°C to 125°C. Right angle and surface mount for compact and efficient PCB layout. Shrouded design protects contacts and enhances mating reliability. Suitable for use with pick and place machinery in automated assembly lines.

Ideal for industrial, electronic, and telecommunications applications. Manufactured in Switzerland ensuring premium build quality. Explore more PCB Connectors and related components in the Electronics & Electricals category at EnvMart for your industrial and manufacturing needs.
